Intel® Storage System SSR212MA System Cooling Module
Revision 1.4 23
3. System Cooling Module
The Storage System SSR212MA includes a cooling module that has three dual rotor 40 mm
fans and two single rotor 40 mm fans, mounted in a common frame for ease of maintenance.
The fans are mounted in a single fan tray located in the center of the chassis. The Power
Supply enclosure contains one 60 mm fan for cooling the power supply modules.
3.1 Fan Control
Each fan within the module is capable of supporting multiple speeds. At normal room ambient of
23 degrees Celsius (C), the fans will run at slow speed for best acoustic performance. If the
external temperature of the system increases, the backplane fan control circuitry will increase
fan speed to compensate for the increased ambient.
TP01780

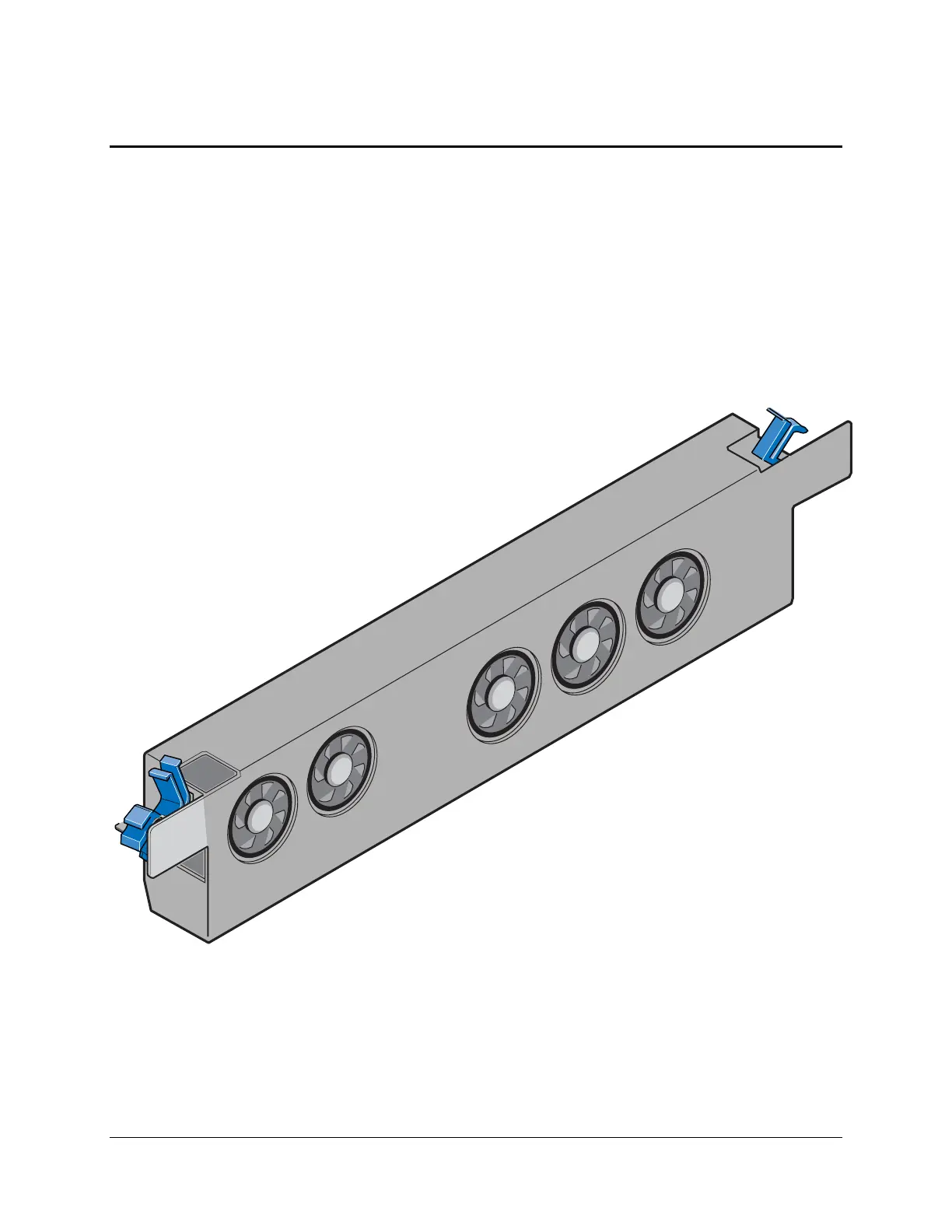

Figure 11. Cooling Module
