CA-8320 Powered Mixer
Main Section

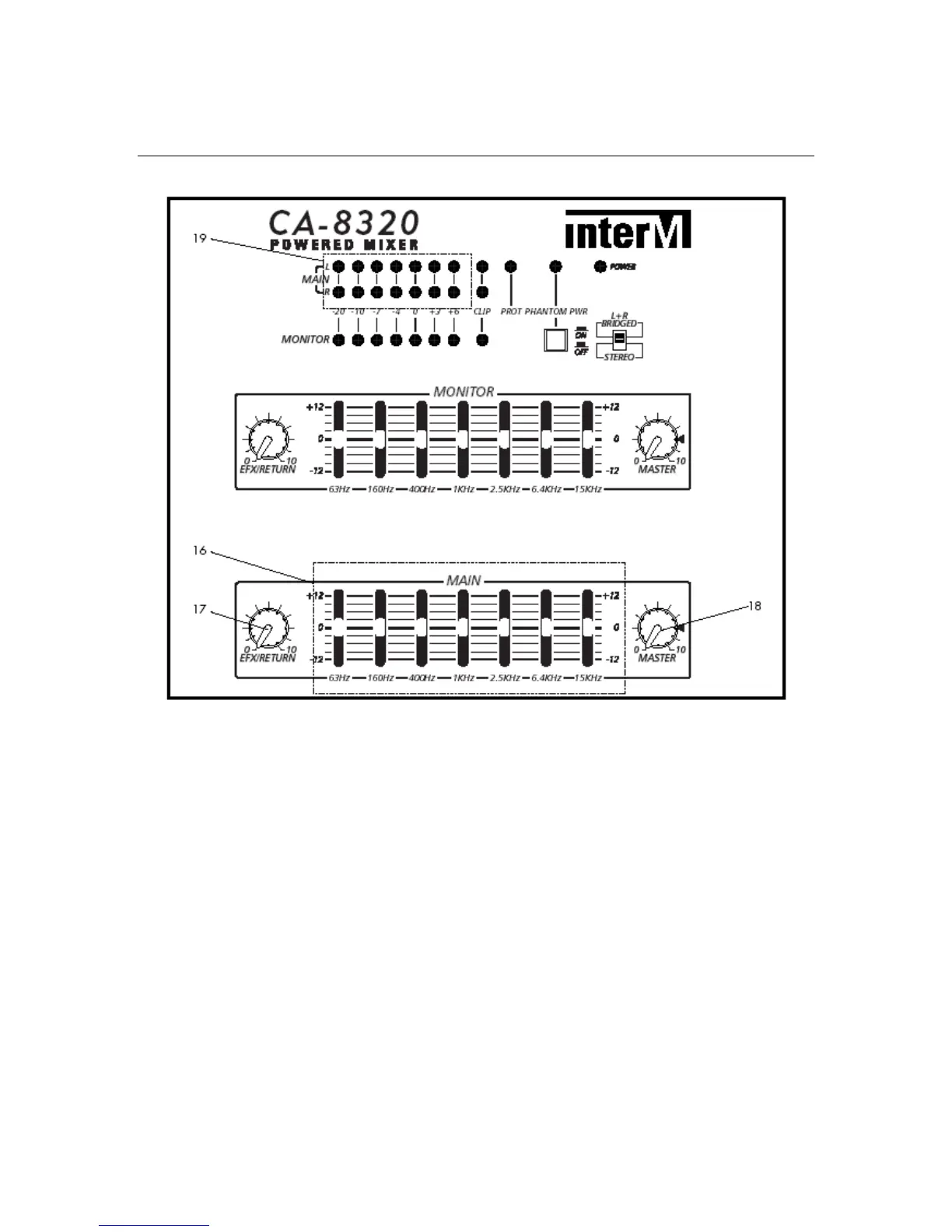

16. Main Graphic Equalizer
Each slider controls the cut (decreased gain) or boost (increased gain) for its
associated frequency band to the Main L/R buss. The middle position indicates
flat response (no cut or boost). Moving the slider upwards increases that
frequency’s gain, while moving it down decreases the level of that frequency.
NOTE: The Main Graphic Equalizer affects the Main L/R buss signal that is output to
the speakers, and the line level signal output to the Main Out jack in the
Input/Output section.
17. Main L/R EFX Return Control
This knob provides control of the amount of signal returned from built-in digital
reverb to the Main L/R buss.
18. Main L/R Master Control
This knob provides control of the level of the Main L/R buss sent to both the
speakers and the Main L/R OUT jack. (Input/Output Section)
19. Main L/R Output Level Display
This seven-segment LED meter indicates the amount of signal sent to the Main L/R
jack. (Input/Output Section)
