CA-8320 Powered Mixer

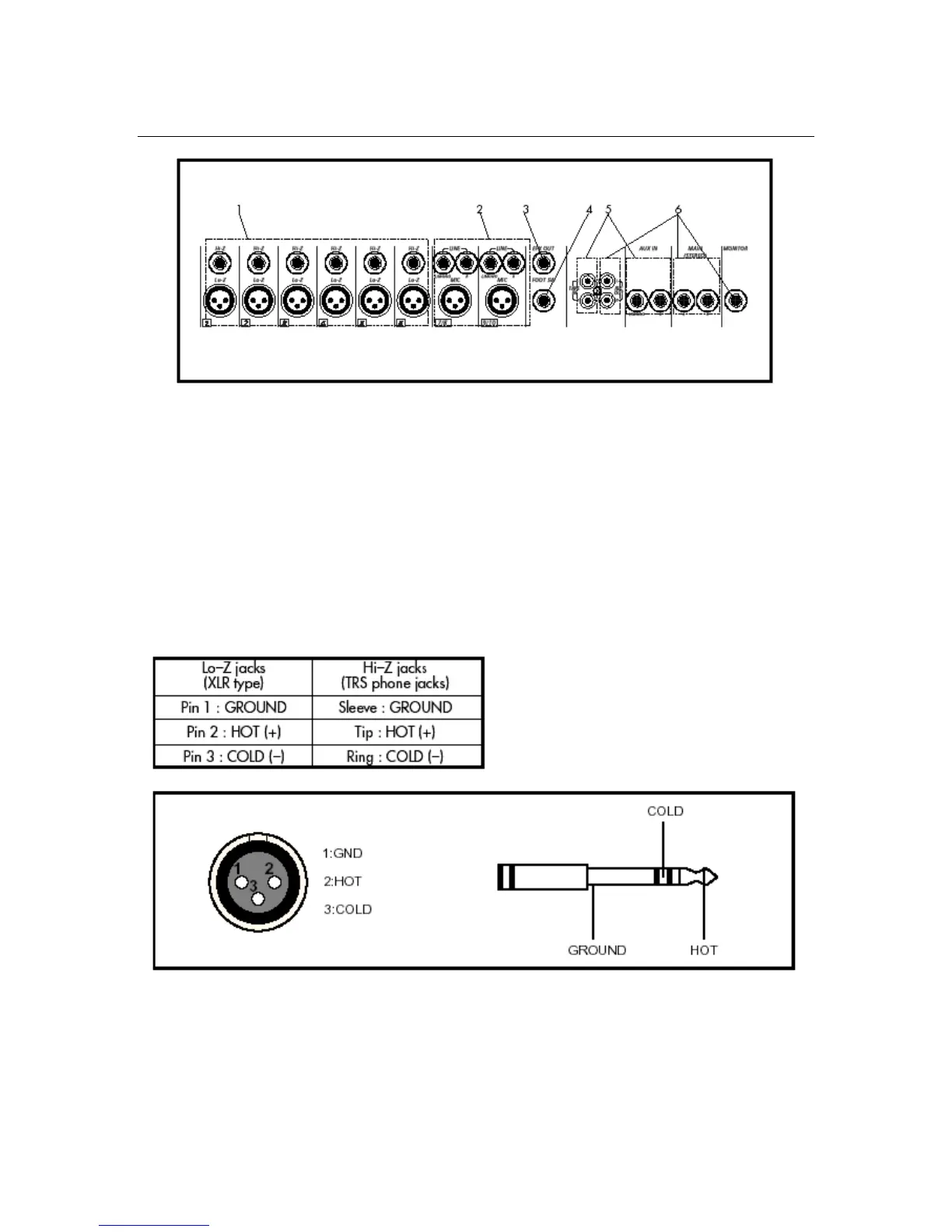

Input/Output Section
1. Channel Inputs 1-6
Each channel provides a high impedance (“high-Z”) input on a balanced 1/4”
tip-ring-sleeve connector for line-level devices (synths, drum machines, etc.), and
a low impedance (“low-Z”) input on a balanced 3-pin XLR jack for mic-level
sources such as condenser and dynamic microphones. Both inputs may not be
used simultaneously.
NOTE: When phantom power is switched on, +48V power is sent to the 3-pin XLR
jacks of ALL six channels (1-6). To avoid damaging high-Z devices, be sure sources
not requiring phantom power are connected only to the high-Z 1/4” jacks.
The wiring convention used in the CA8320’s inputs are as follows:
