Chapter 2 — Set Up the Printer
PM23c, PM43, and PM43c Mid-Range Printer User Manual 25

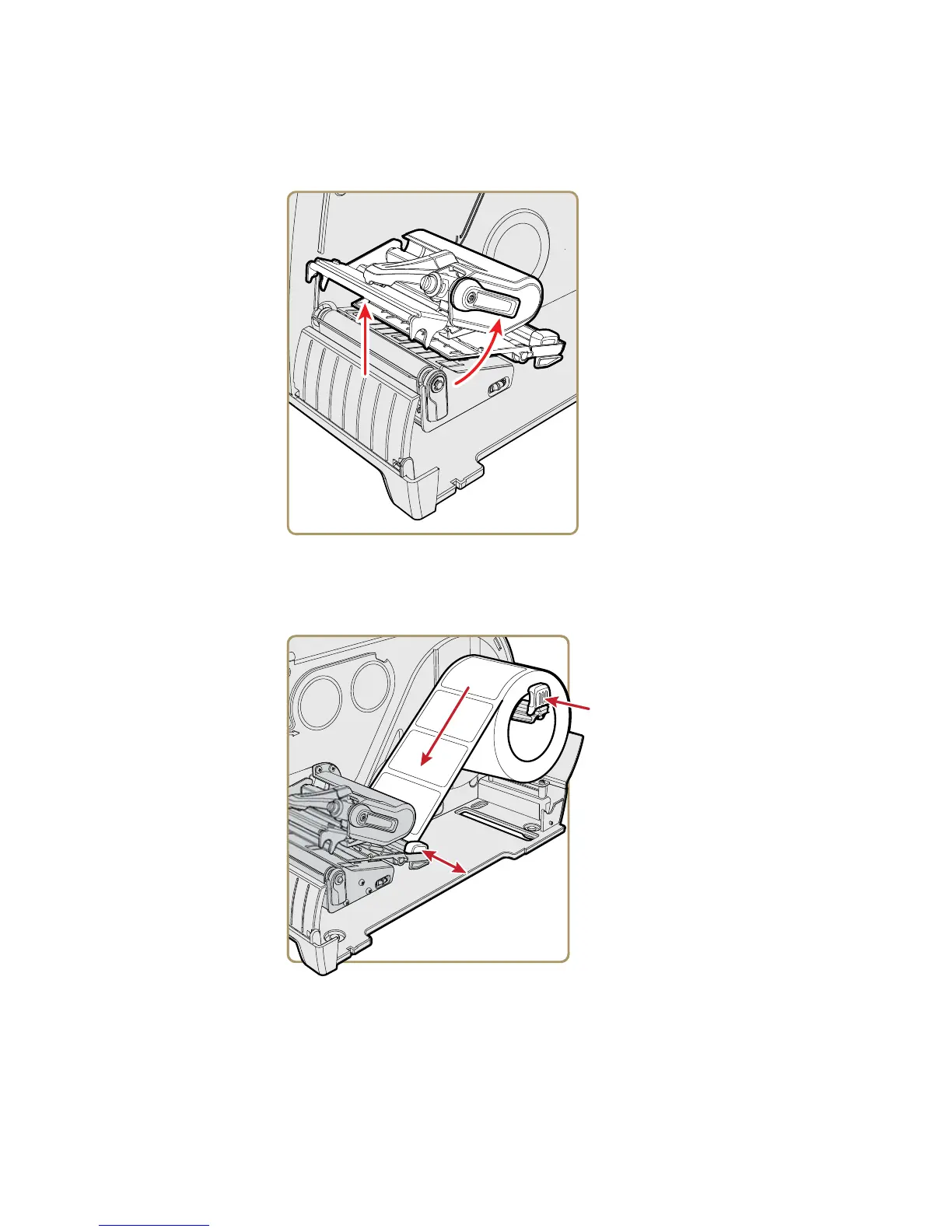

2 Turn the printhead lift lever counterclockwise to raise the
printhead.
3 Load a media roll onto the media supply hub. Make sure you push
the roll all the way against the inner wall of the printer and adjust
the edge guide and the dancer guide to hold the media in place.
4 Route the media through the print mechanism.
5 Adjust the printhead balance. For help, see Chapter 6.
6 Turn the printhead lift lever clockwise to close the printhead.
