Load Ribbon
1 Open the media cover.
2 Turn the printhead lift lever counterclockwise to raise the
printhead.

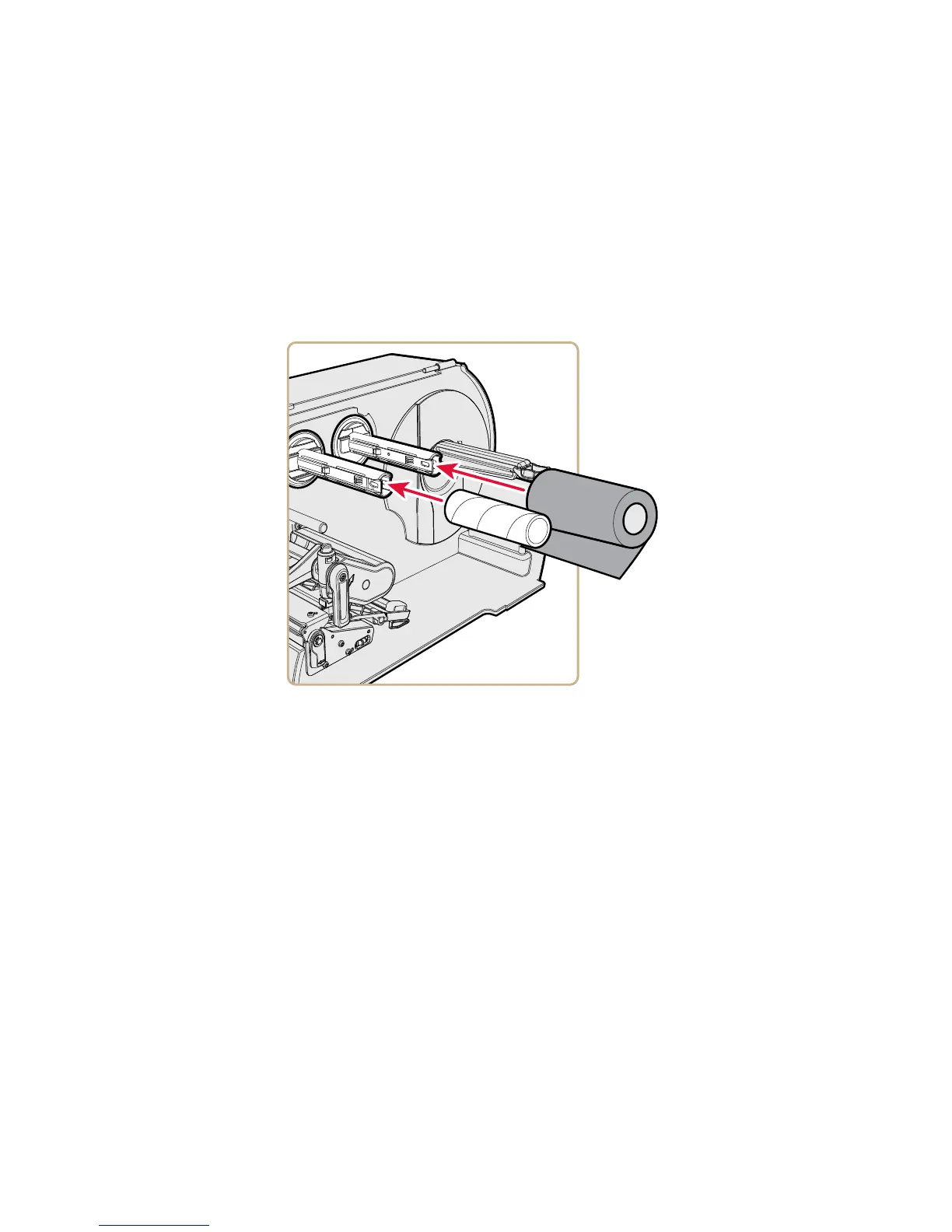

3 Slide the ribbon roll onto the ribbon supply hub and slide the
empty ribbon core onto the ribbon takeup hub.
4 For ribbon that has the ink wound out, place the ribbon on the
supply hub with the ribbon wound clockwise. For ribbon that has
the ink wound in, place the ribbon on the supply hub with the
ribbon wound counterclockwise.
5 Route the ribbon through the print mechanism and pull out
approximately 20 cm (8 inches) of ribbon leader.
