Chapter 2 — Set Up the Printer
28 PM23c, PM43, and PM43c Mid-Range Printer User Manual

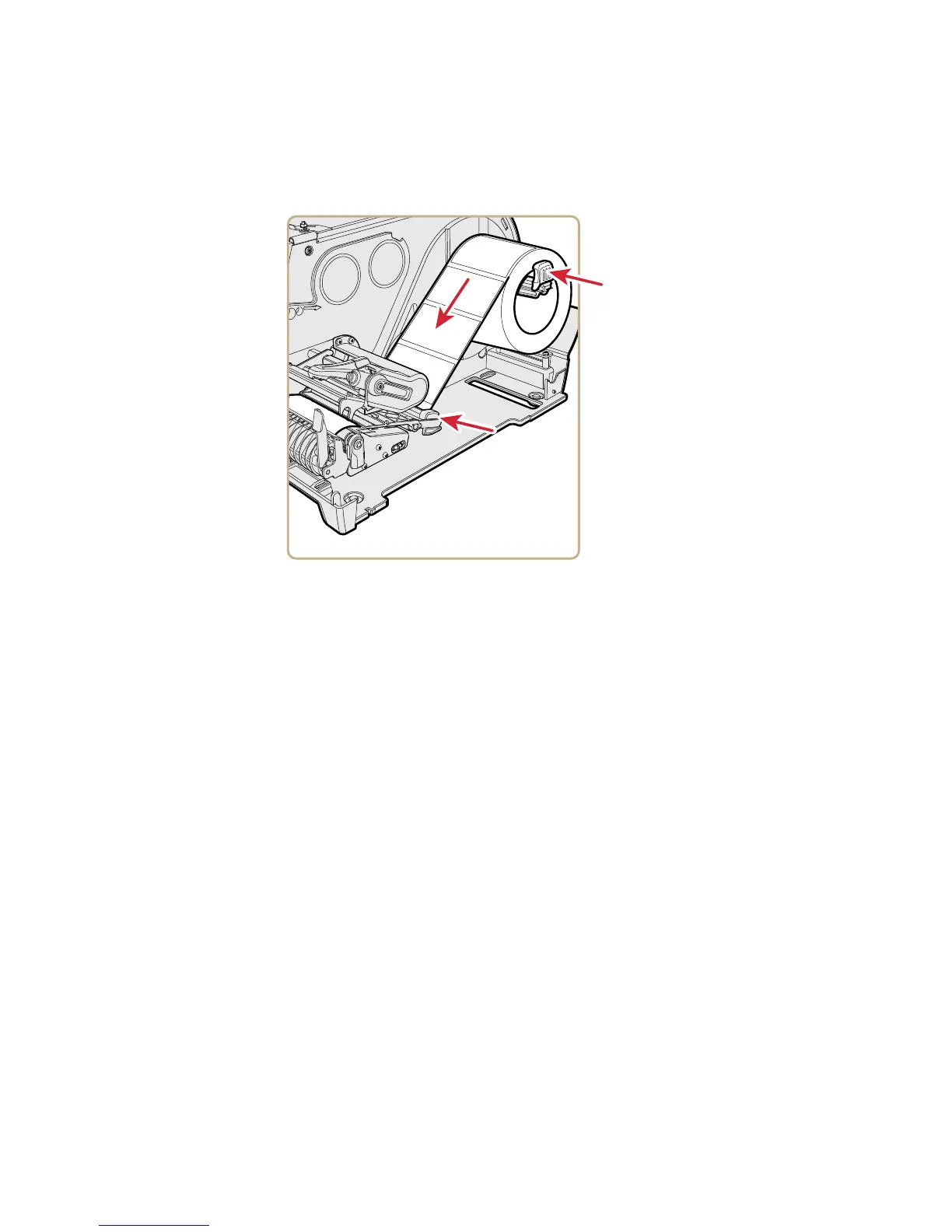

4 Load a media roll onto the media supply hub. Make sure you push
the roll all the way against the inner wall of the printer and adjust
the edge guide and the dancer guide to hold the media in place.
5 Route the media through the print mechanism and out the front of
the printer.
6 Insert the media in the opening between the label dispenser and the
platen roller.
