Chapter 3 — SR31T Interfaces
SR31T Tethered Scanner User’s Guide 29
Keyboard Wedge Y-Cable Interface
The SR31T can be connected to a host using a keyboard wedge Y-
cable. Power is provided either by the host or by the external power
supply connected to the cable. See the Accessories page in Chapter 1
for the part number of the Keyboard Wedge Y-cable.

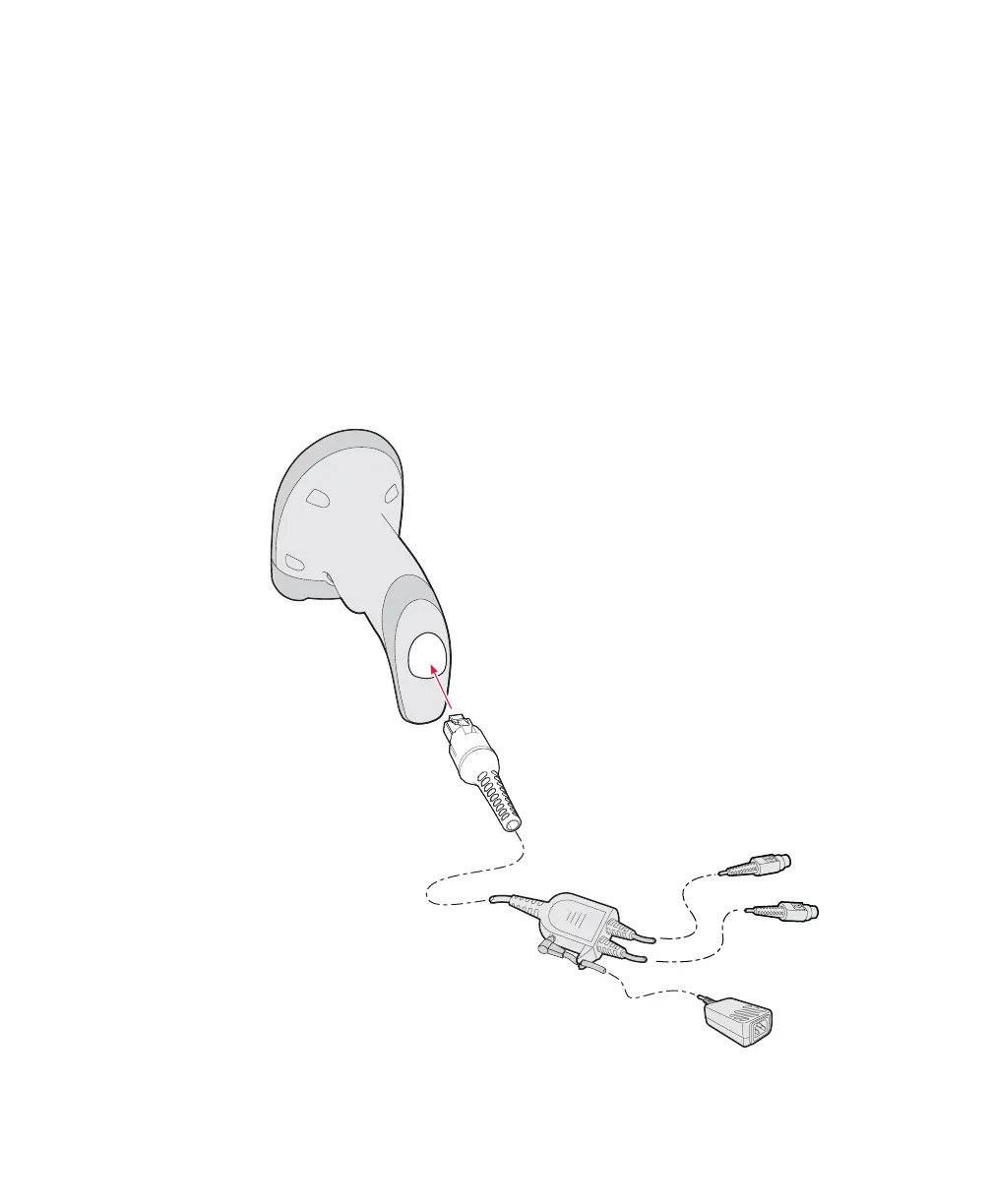

Connecting a Keyboard Wedge Y-Cable
To connect with a keyboard wedge Y-cable
1 Turn off your host device.
2 Connect the Y-cable to your SR31T.
