Chapter 3 — SR31T Interfaces
SR31T Tethered Scanner User’s Guide 31
Wand Emulation
The SR31T can be connected to a host using a wand emulation cable.
See the “SR31T Cable List” on page 6 for a list of part numbers for
the different cables. The type of cable depends on the host device or
intermec computer your are using. No power supply is necessary.
Connecting a Wand Emulation Cable
To create a wand emulation connection
1 Turn off your host device or Intermec computer.
2 Connect the wand emulation cable to your SR31T and the host or
Intermec computer.
3 If necessary, use the configuration bar codes in the next section to
configure your SR31T for wand emulation interface.

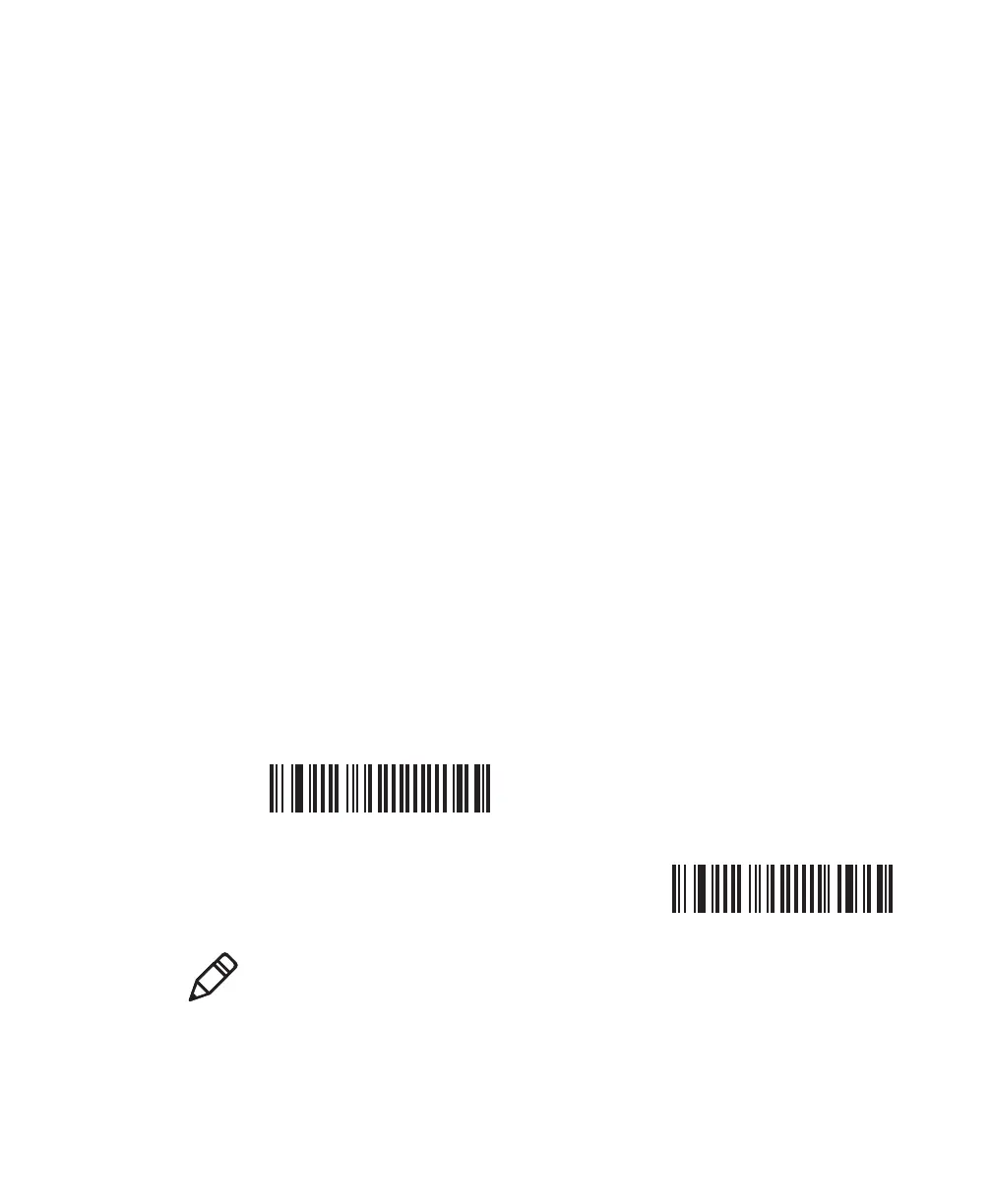

Setting up the Wand Emulation Interface
This section provides configuration bar codes for a basic setup. All bar
codes marked with (*) indicate the default value. For more
configuration options see Chapter 4, "Configuring the SR31T
Scanner” on page 33.
Logical Signal State During Transmission
Bar = 0, Space = 1 (*)
Bar = 1, Space = 0
Note: When using a wand emulation connection the postamble and
preamble are not available.
