The FT Series Floor Standing, Heating Only Boiler
Page 31
vent connectors.
5)
Insert the, 17.75” Straight Length, plain end PP
pipe through the top of the , (#1), concentric PP
adaptor. Do not connect it to the FT boiler or FT3001
Elbow, if used, at this point.
6)
Insert the straight length PP pipe, Into the adaptor
on the Combustion Air socket or FT3001 Oset
Elbows and tighten the clamp.
7)
Place the (#1), Concentric adapter on top of the
12” pipe and align it so that the 17.75” pipe is aligned
with the Vent socket on the FT boiler or the FT3001
Oset Elbow, if used. Slide the 17.75” pipe down
through the adapter and connect it to the adapter on
the FT boiler’s Vent connection or the FT3001 Oset
Elbow, if used. Ensure that it bottoms out and tighten
the clamp.
8)
Ensure that the 12” pipe is bottomed out in the
Concentric Adaptor, (#1), and install the, (#5),
Clamp and tighten both ends.
9)
Option 2 for oset (if required): Install 2 45
concentric PP elbows (3PPC-E45) in an o-set
fashion on top of the concentric adaptor. Make
sure the dierent components are fully engaged
and bottom out.
10)
Depending on where you need to connect to your
existing Heat-Fab SC concentric venting system, use
the components in the FT3004 kit to either vertically or
horizontally adjust. (See page 29).
11)
Use FT3003 kit (PP to Heat-Fab adaptor) to
connect the Duravent PP concentric system to the
existing Heat-Fab SC venting system. Moisten the
seals with water prior to assembly. See image of
FT3003 kit on the next page.
12)
After completing the venting installation, review
all joints, check for proper slope on each horizontal
section and make sure each section is properly
supported per vent manufacturer's instructions.

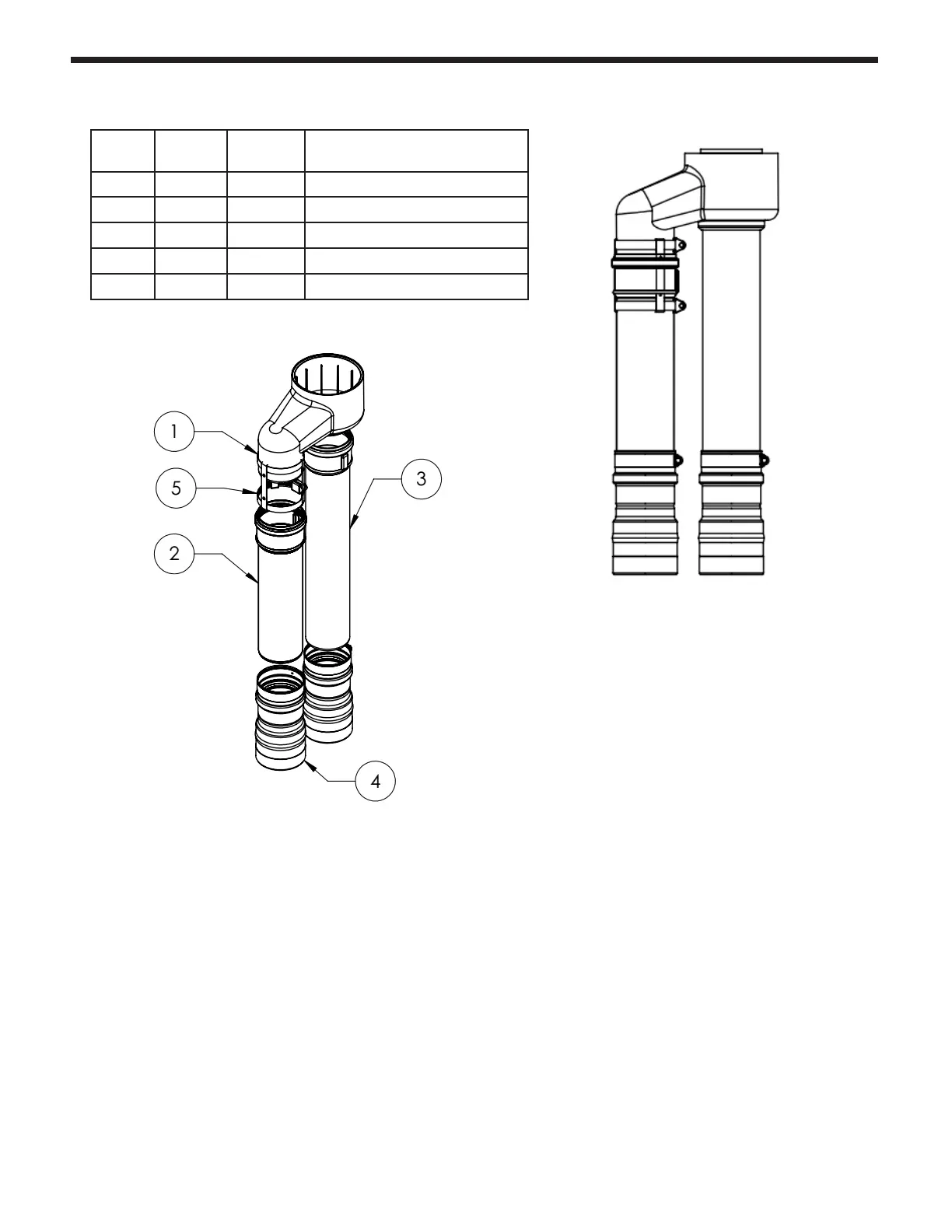

ITEM
NUMBER
QUANTITY PART
NUMBER
Description
1 1 820014497 Concentric Adaptor 80/80 - 80/125
2 1 820001613 3˝ Diameter PP 12˝ Pipe Length
3 1 820019072 3˝ Diameter PP 17.750˝ Pipe Length
4 2 810004167 3˝ Diameter 3˝ PVC Male to 3˝ PP
5 1 810004128 3˝ Diameter PVC Adaptor Clamp
Stub-out Kit FT3002
