Appendix D: Cables Termination
122
Grounding Cable, Continued
Grounding
cable (6 mm
2
)
termination
procedure

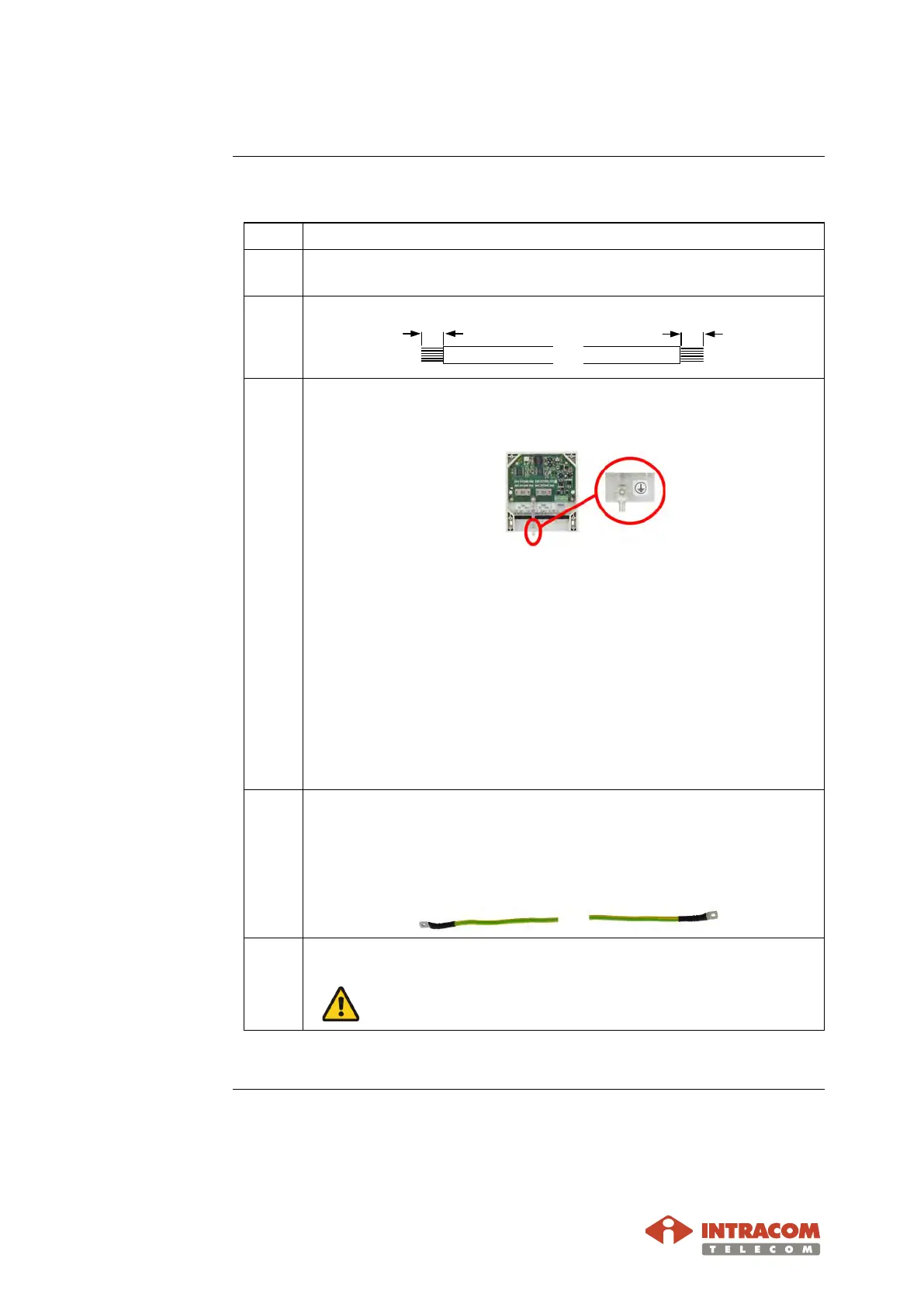

To terminate the 6 mm
2
grounding cable, proceed as follows:
Step Action
1 Cut the grounding cable (for 6 mm
2
) according to the distance
between equipment and grounding bar.
2 Use the blade to strip 1 cm from each end of the cable, as below:
3 Perform the following:
A: For DC PoNE: Use the tool with TORX T10 bit to unscrew
the terminal ring from PonE, as shown below:
B: Slide the M4 grounding terminal over the wires at one
end of the cable and crimp it with the special crimping tool
(for 6 mm
2
).
For AC POE: Slide the M5 grounding terminal over the
wires at one end of the cable and crimp it with the special
crimping tool (for 6 mm
2
).
C:
Cut the heat shrinkable tube in the middle in two equal
pieces in order to use one piece per cable side.
D:
Slide the one piece of the heat shrinkable tube over the
cable. Heat it over rear grounding ring body and down
on to cable jacket using the hot air blower.
4
Repeat step 3 for the other end of the cable using the appropriate
terminal lug. Eventually both ends should be as follows:
• M4 or M5 grounding terminal
• Appropriate grounding lug (grounding terminal side)
5
Use the tool with TORX T10 bit to screw for securing the ring in
place.
Do not over tighten. Adjust the tool for max tightening torque
0.9 Nm.
End of procedure.
~ ~
1 cm
1 cm
