Intracom OSDR - Radio Unit View

Outdoor Software Defined Radio (OSDR) platform
Installation & Cabling Manual - Edition 3.0
25

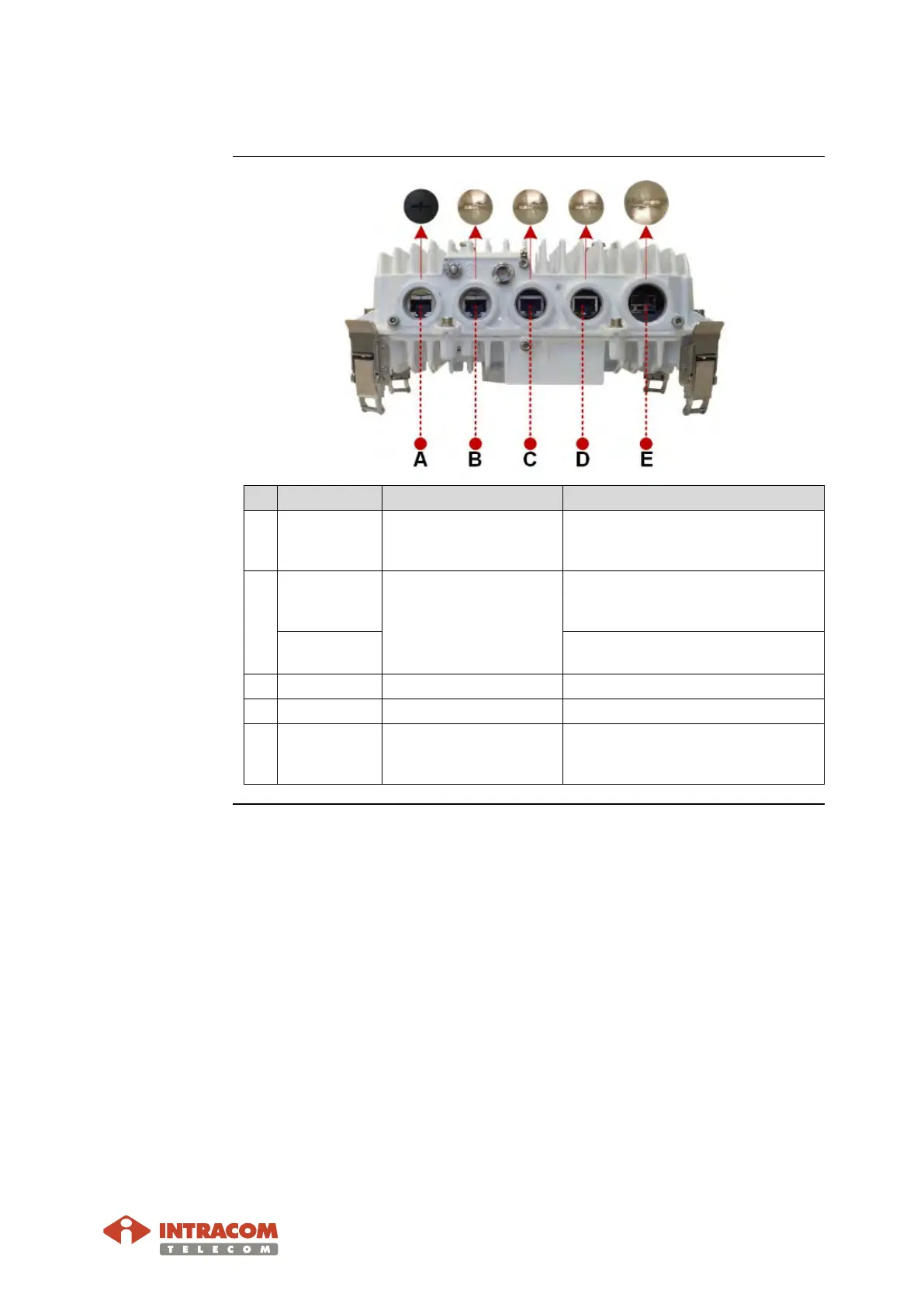

3.1. Radio Unit View
Receptacles
#
Marking
Description
Use
A
GbE2
Gigabit Ethernet,
Electrical RJ-45
(100/1000 Base-T).
To connect Ethernet (S-FTP) cable
for traffic / inband management
and power via power injector.
B
FE
Fast Ethernet, RJ-45
(100 Base-T).
To connect Ethernet (S-FTP) cable
for outband management / power
via power injector.
PROTECT
To connect Ethernet (S-FTP) cable
for protection (OSDR Hub (1+1)).
C
-
- Reserved for future use.
D
-
- Reserved for future use.
E
GbE1
Gigabit Ethernet, SFP
cage.
To connect SFP module (electrical
/ optical) for traffic and inband
management.
Continued on next page
