2. Materials
12

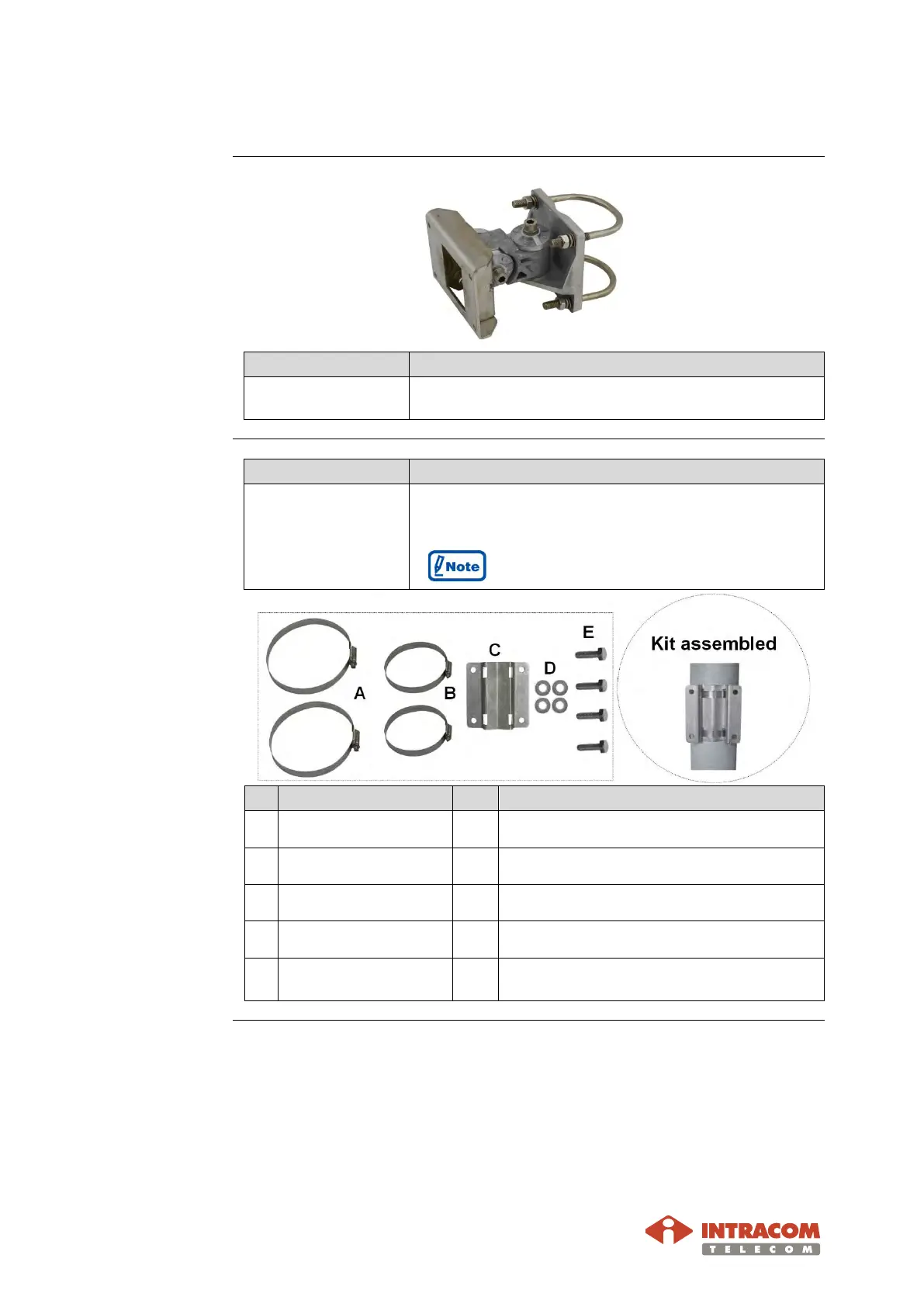

Mounting Kits
Mounting kit for
panel antenna
Oder Code Description
OSDR-ANT-MNT
Pole/Wall mounting kit for panel antenna 10.5 GHz (pole
diameter 48 mm up to 60 mm).
Pole adaptation
bracket for
panel antenna
INST-ADAPT
Pole adaptation bracket for panel antenna 10.5 GHz (pole
diameter 61 mm up to 120 mm).
OSDR-ANT-MNT is required for mounting
panel antenna 10.5 GHz.
# Items Description Qty Details
A Hose clamp. 2 For pole diameter 101 mm up to 120 mm.
B Hose clamp. 2 For pole diameter 61 mm up to 100 mm.
C Bracket. 1 Pole adaptation bracket.
D Washers. 4 M8 washers (DIN125A), stainless.
E Screws. 4
M8x25 hex-headed screw (DIN933),
stainless.
Continued on next page
To Next Page
