Intracom OSDR - Radio Unit Optical Cable (Optional)

Outdoor Software Defined Radio (OSDR) platform
Installation & Cabling Manual - Edition 3.0
83

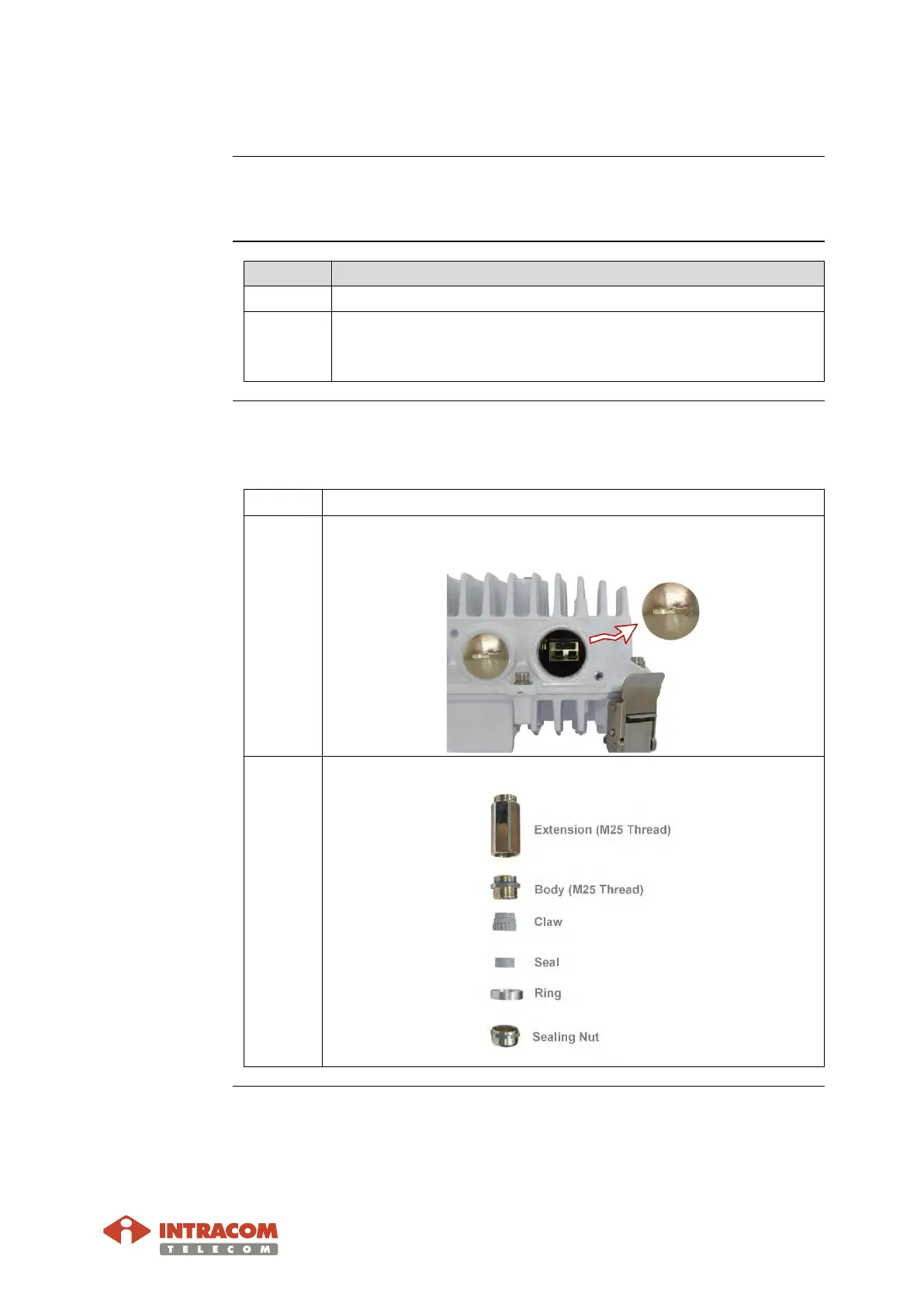

4.5. Radio Unit Optical Cable (Optional)
Introduction
Apply this procedure for installing the Fiber Optic cable with M25 gland to
OSDR receptacle (GbE1).
Tools and
materials
# Description
Tools Adjustable torque U-wrench.
Materials
• M25-GLAND.
• Fiber Optic cable.
• SFP module.
Procedure
To install the Fiber Optic cable with M25 gland to OSDR receptacle (GbE1),
proceed as follows:
Step Action
1 Remove the metallic protective cap.
2
Disassemble the M25-GLAND parts, as shown below.
Continued on next page
