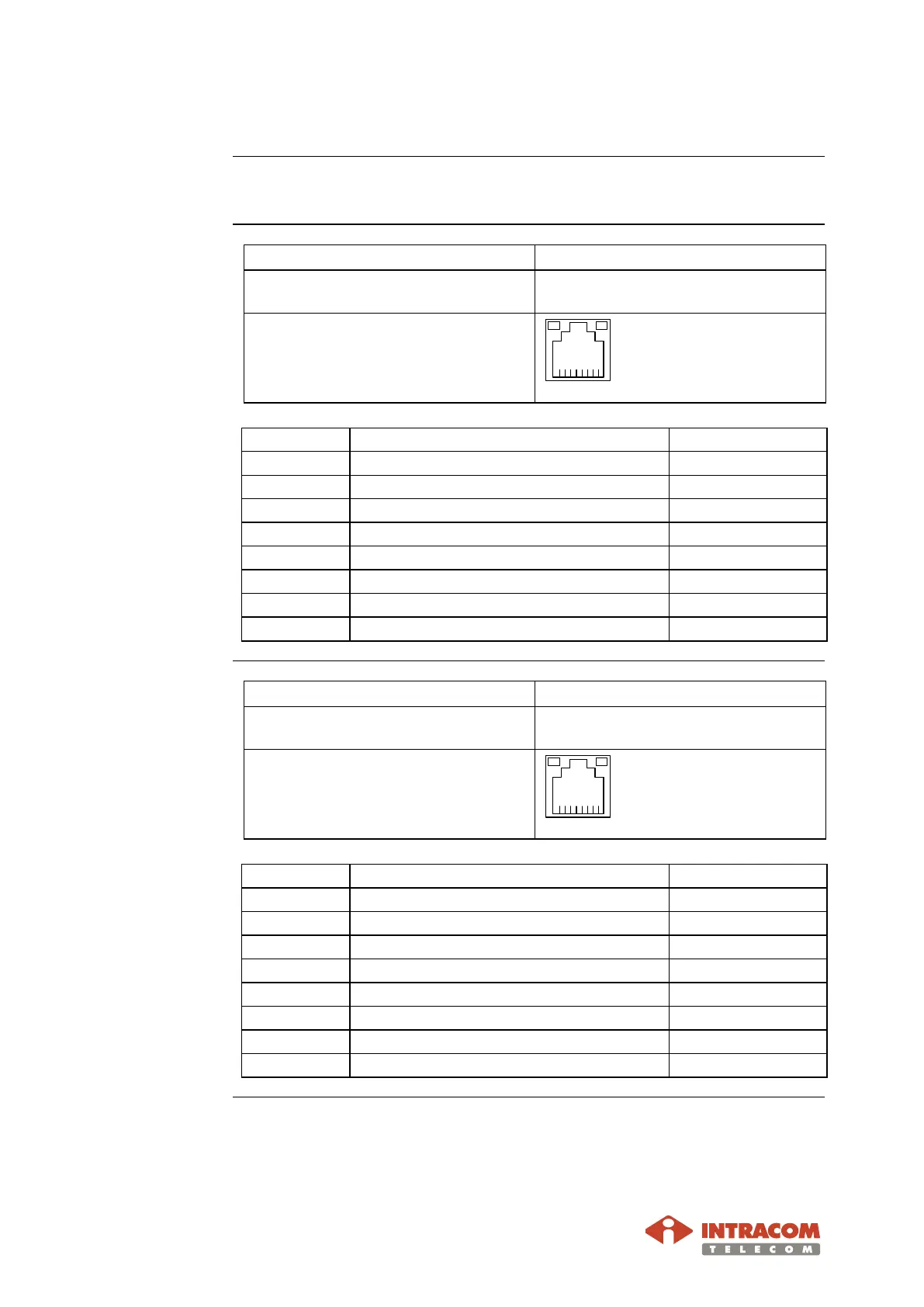

Appendix F: Receptacles Pin Out
130
Appendix F: Receptacles Pin Out
Radio Unit
GbE
Scope
For Traffic / Power.
Type
RJ-45 Female (100/1000 Base-T
electrical).
Pin out
8 1
Pin
Signal
Description
1
Transmit and Receive Data A+
Input / Output
2 Transmit and Receive Data A- Input / Output
3 Transmit and Receive Data B+ Input / Output
4
Transmit and Receive Data C+
Input / Output
5
Transmit and Receive Data C-
Input / Output
6 Transmit and Receive Data B- Input / Output
7 Transmit and Receive Data D+ Input / Output
8
Transmit and Receive Data D-
Input / Output
FE
Scope
For outband / Power.
Type
RJ-45 Female (10/100/ Base-T
electrical).
Pin out
8 1
Pin
Signal
Description
1 Transmit and Receive Data A+ Input / Output
2 Transmit and Receive Data A- Input / Output
3 Transmit and Receive Data B+ Input / Output
4
Transmit and Receive Data C+
Input / Output
5
Transmit and Receive Data C-
Input / Output
6 Transmit and Receive Data B- Input / Output
7
Transmit and Receive Data D+
Input / Output
8
Transmit and Receive Data D-
Input / Output
Continued on next page
