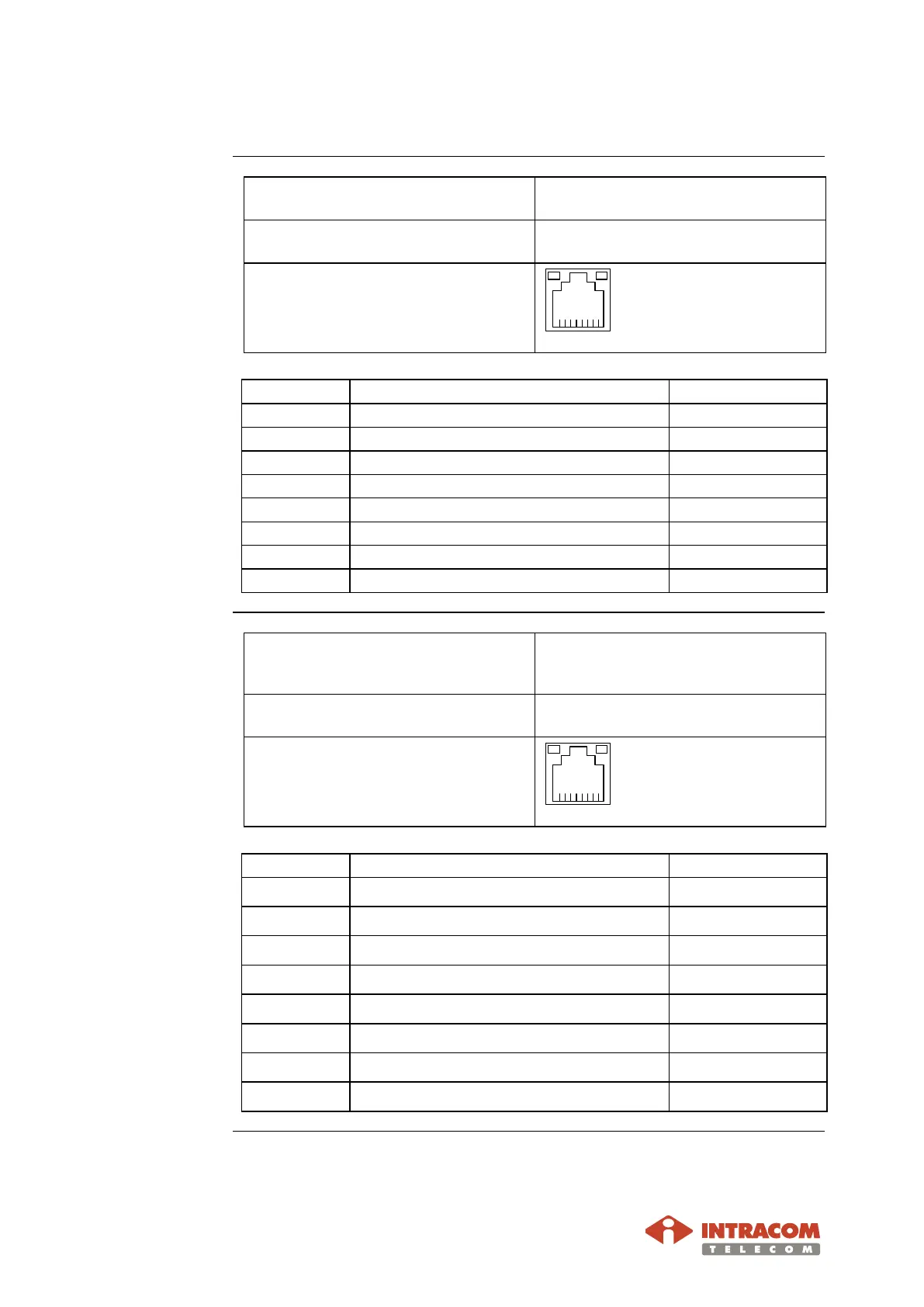

Appendix F: Receptacles Pin Out
132
Outdoor DC PoNE
Gbe IN
Scope
For connection of GbE electrical data
traffic.
Type
RJ-45 Female (10/100/1000 Base-T
electrical).
Pin out
8 1
Pin
Signal
Description
1
Transmit and Receive Data A+
Input / Output
2 Transmit and Receive Data A- Input / Output
3 Transmit and Receive Data B+ Input / Output
4
Transmit and Receive Data C+
Input / Output
5
Transmit and Receive Data C-
Input / Output
6 Transmit and Receive Data B- Input / Output
7 Transmit and Receive Data D+ Input / Output
8
Transmit and Receive Data D-
Input / Output
Gbe OUT
Scope
For connection of GbE electrical data
traffic, and PonE (Power on Ethernet)
output.
Type
RJ-45 Female (10/100/1000 Base-T
electrical).
Pin out
8 1
Pin
Signal
Description
1
Transmit and Receive Data A+
+
Power+
Input / Output
2
Transmit and Receive Data A-
+
Power+
Input / Output
3
Transmit and Receive Data B+
+
Power-
Input / Output
4
Transmit and Receive Data C+
+
Power+
Input / Output
5
Transmit and Receive Data C-
+
Power+
Input / Output
6
Transmit and Receive Data B-
+
Power-
Input / Output
7
Transmit and Receive Data D+
+
Power-
Input / Output
8
Transmit and Receive Data D-
+
Power-
Input / Output
