Appendix B: Mounting Kit Wall Installation
Wall Installation
Introduction
Apply this procedure for installing the mounting kit onto the wall.
Tools and
materials
# Description
Tools Adjustable torque U-wrench.
Materials
OSDR-ANT-MNT.
Procedure
To install radio unit to sectoral/parabolic antenna, proceed as follows:
1

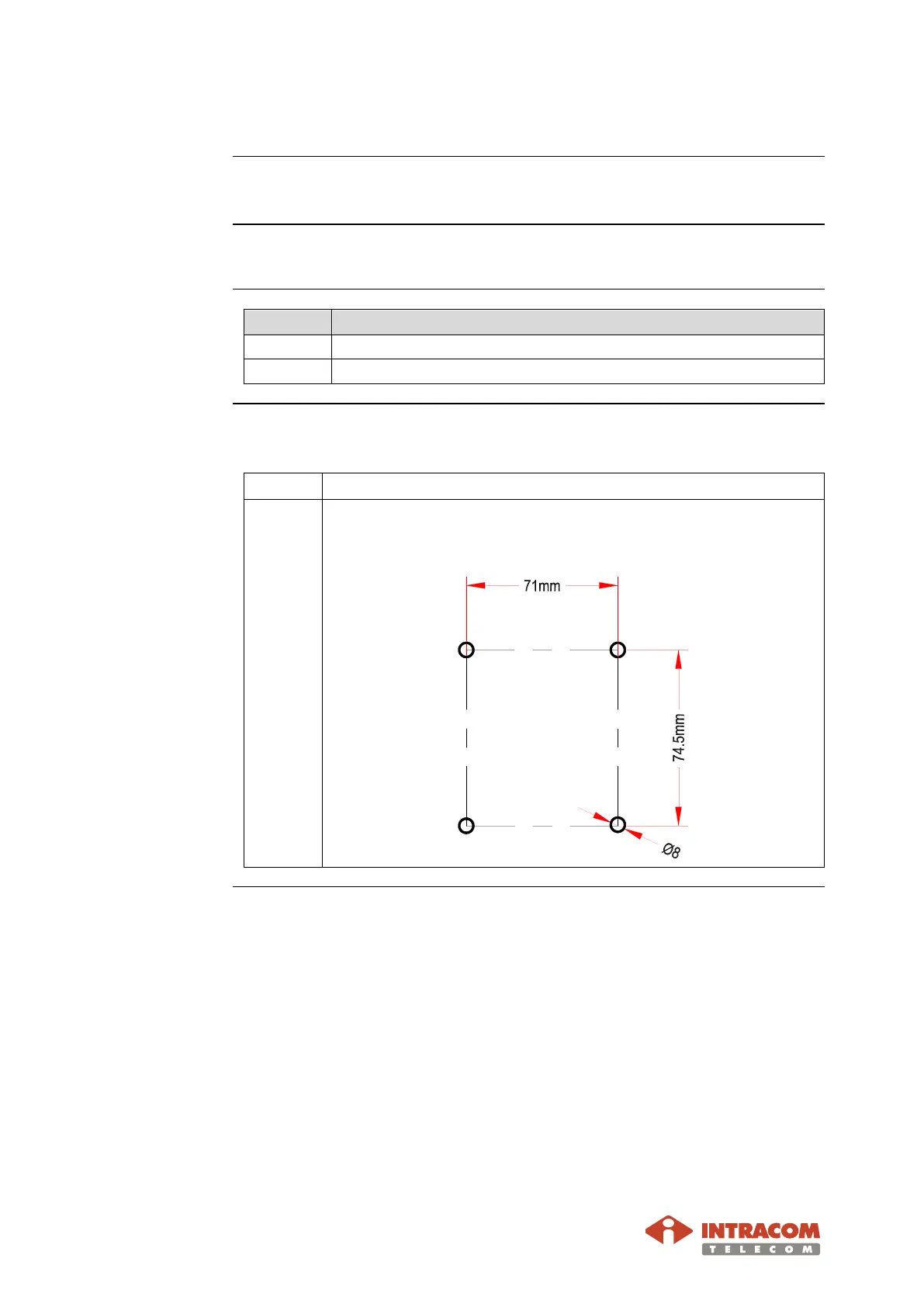

Use a drilling machine (fitted with an 8 mm drill bit) and the
following drill template to drill the holes in the wall surface, as
shown below.
