Outdoor Software Defined Radio (OSDR) platform
Installation & Cabling Manual - Edition 3.0
27

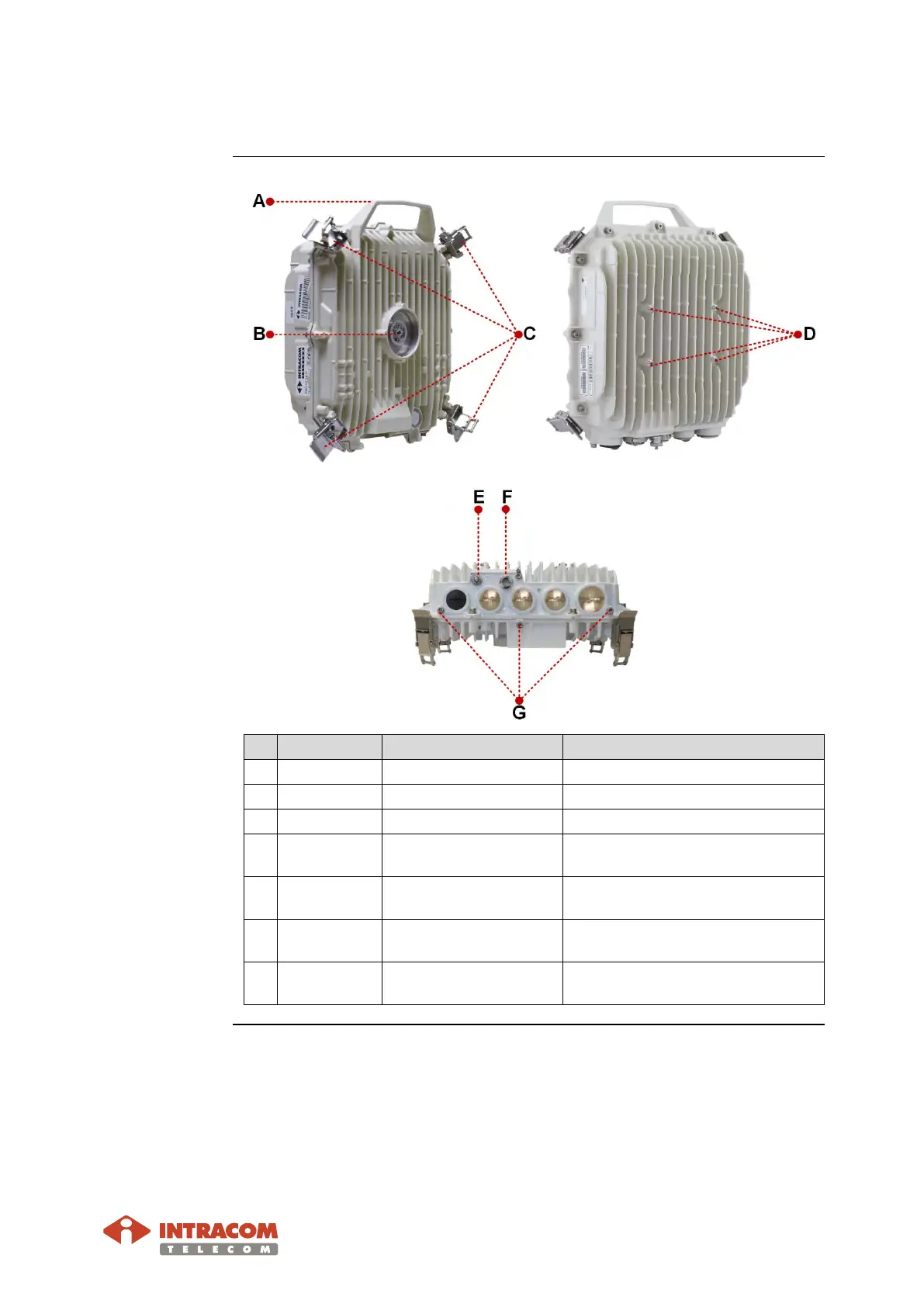

Radio Unit View, Continued
Other points
# Marking Description Use
A
-
Anchor point To carry OSDR unit.
B
-
Wave guide To install antenna feeder.
C
-
Clamps To mount antenna.
D
-
Female threads for M5
screws.
To install mounting kit for panel
antenna.
E
GND
Enclosure grounding
terminal.
To connect 16 mm
2
grounding
cable.
F
RSSI
Receive signal level
indication.
To connect the RSSI cable for
measuring receive signal in volts.
G
-
Female threads for
screws.
To install cable holder.
