3. Before Starting the Installation
30
Gigabit ETH cable for service Traffic, Inband Management
and Powering
, Continued
Cabling
overview using
AC POE

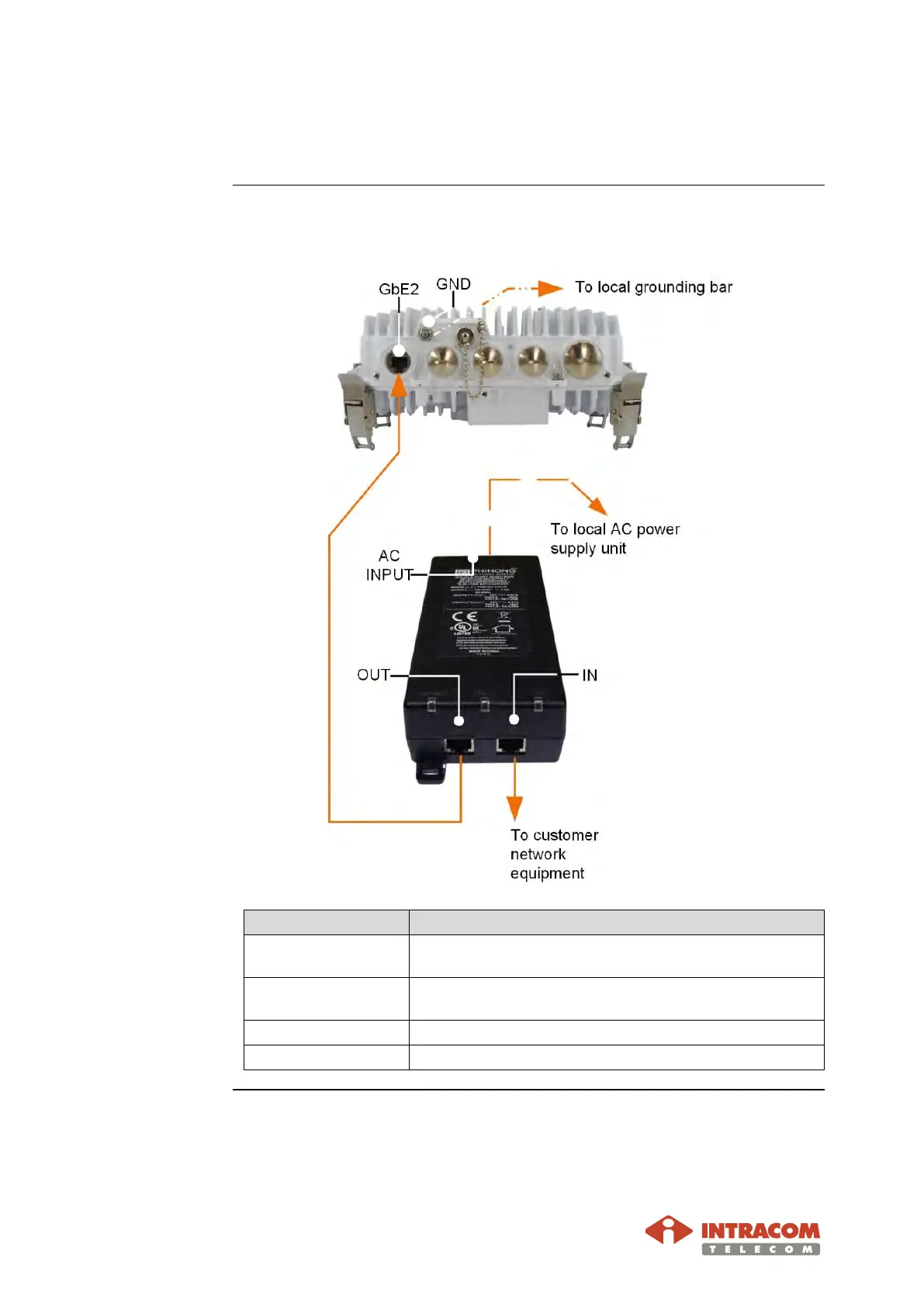

The following schematic shows a cabling overview of OSDR radio unit when
powering is through an indoor AC POE (75W):
Marking Cable Type
GbE#2 and OUT Gigabit Ethernet (S-FTP) cable for traffic, inband
management and superimposed DC power.
IN Gigabit Ethernet (S-FTP) cable for traffic and inband
management.
AC INPUT AC power supply cord.
GND Grounding cable 16 mm
2
for radio unit.
Continued on next page
