3. Before Starting the Installation
42
Fiber Optic cable for service Traffic and Inband Management
/ Gigabit Ethernet (S-FTP) cable for service Powering
, Continued
Cabling
overview using
DC PoNE

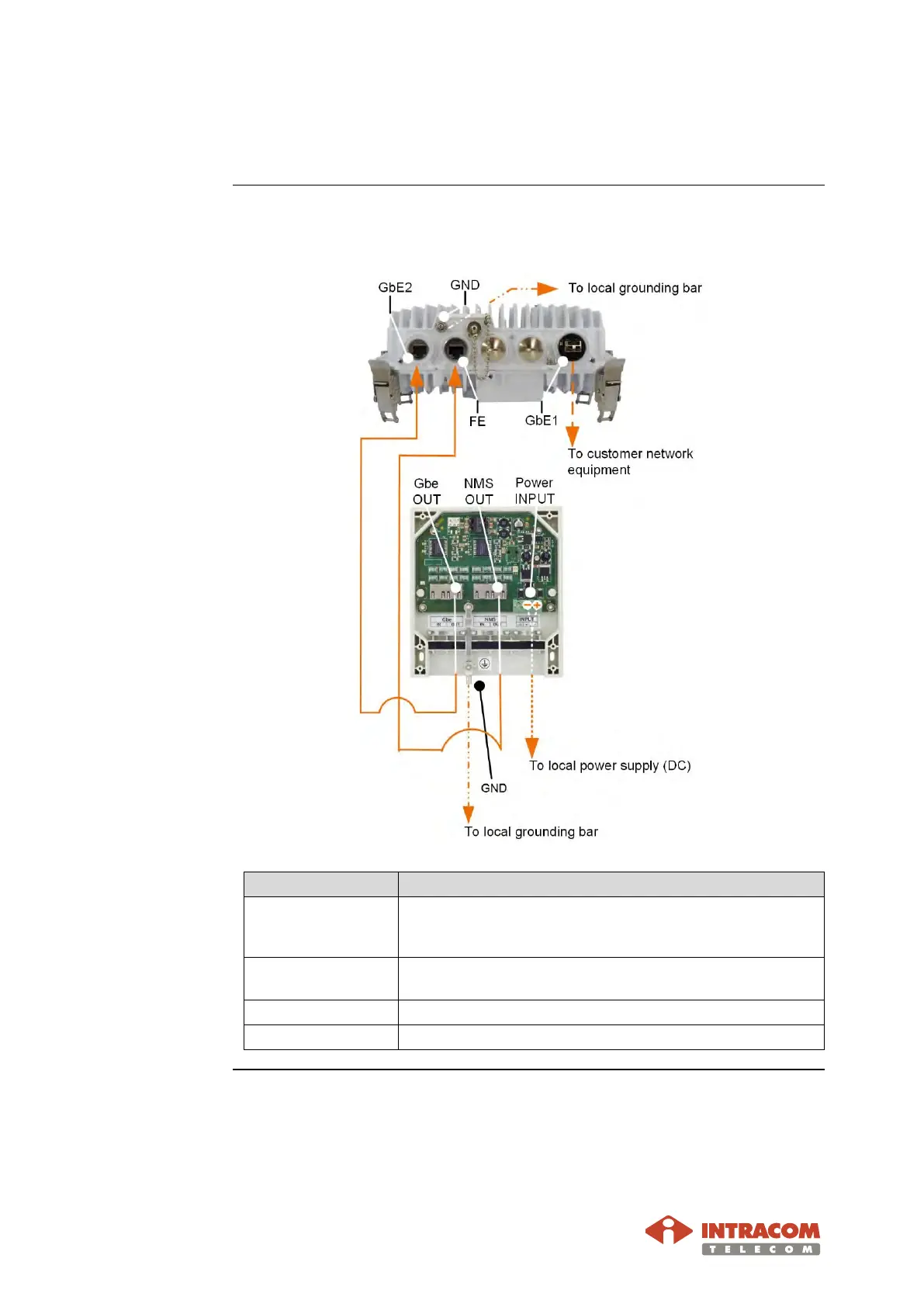

The following schematic shows a cabling overview of OSDR radio unit when
powering is through an outdoor DC PoNE:
GbE#2, FE,
NMS#OUT and
Gbe OUT
Gigabit Ethernet (S-FTP) cable for superimposed DC
power.
GbE#1 Fiber Optic cable with Optical SFP module for traffic and
inband management.
INPUT DC power supply cable.
GND Grounding cable (16 mm
2
for radio and 6 mm
2
for PoNE).
Continued on next page
