3. Before Starting the Installation
44
Fiber Optic cable for service Traffic and Inband Management
/ Gigabit Ethernet (S-FTP) cable for service Powering
, Continued
Cabling
overview using
DC PoNE,
continued

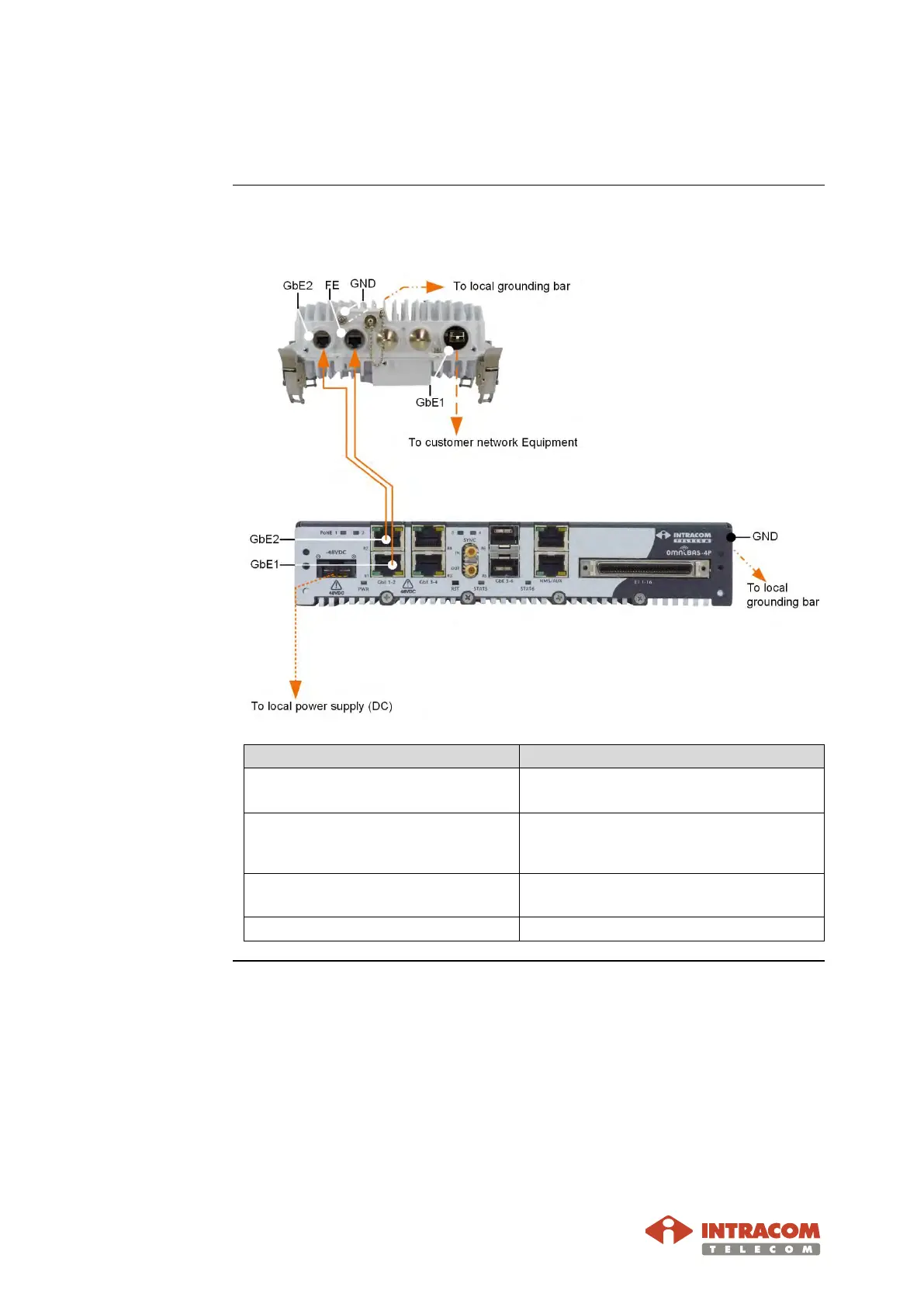

The following schematic shows a cabling overview of OSDR radio unit when
powering is through an indoor OmniBAS
TM
4P:
Marking Cable Type
GbE#1 - GbE#2 (OmniBAS
TM
-4P) &
GbE#2 - FE (OSDR)
Gigabit Ethernet (S-FTP) cable for
superimposed DC power.
GbE#1 (OSDR) Fiber Optic cable with Optical SFP
module for traffic and inband
management.
GND Grounding cable 16 mm
2
for radio unit
and 4 mm
2
for OmniBAS
TM
– 4W/8W.
-48VDC OmniBAS
TM
– 4P DC power supply cable.
