Outdoor Software Defined Radio (OSDR) platform
Installation & Cabling Manual - Edition 3.0
69
Panel Antenna, Continued
Mounting kit installation procedure, continued
Step Action
5 Perform the following actions:
A:

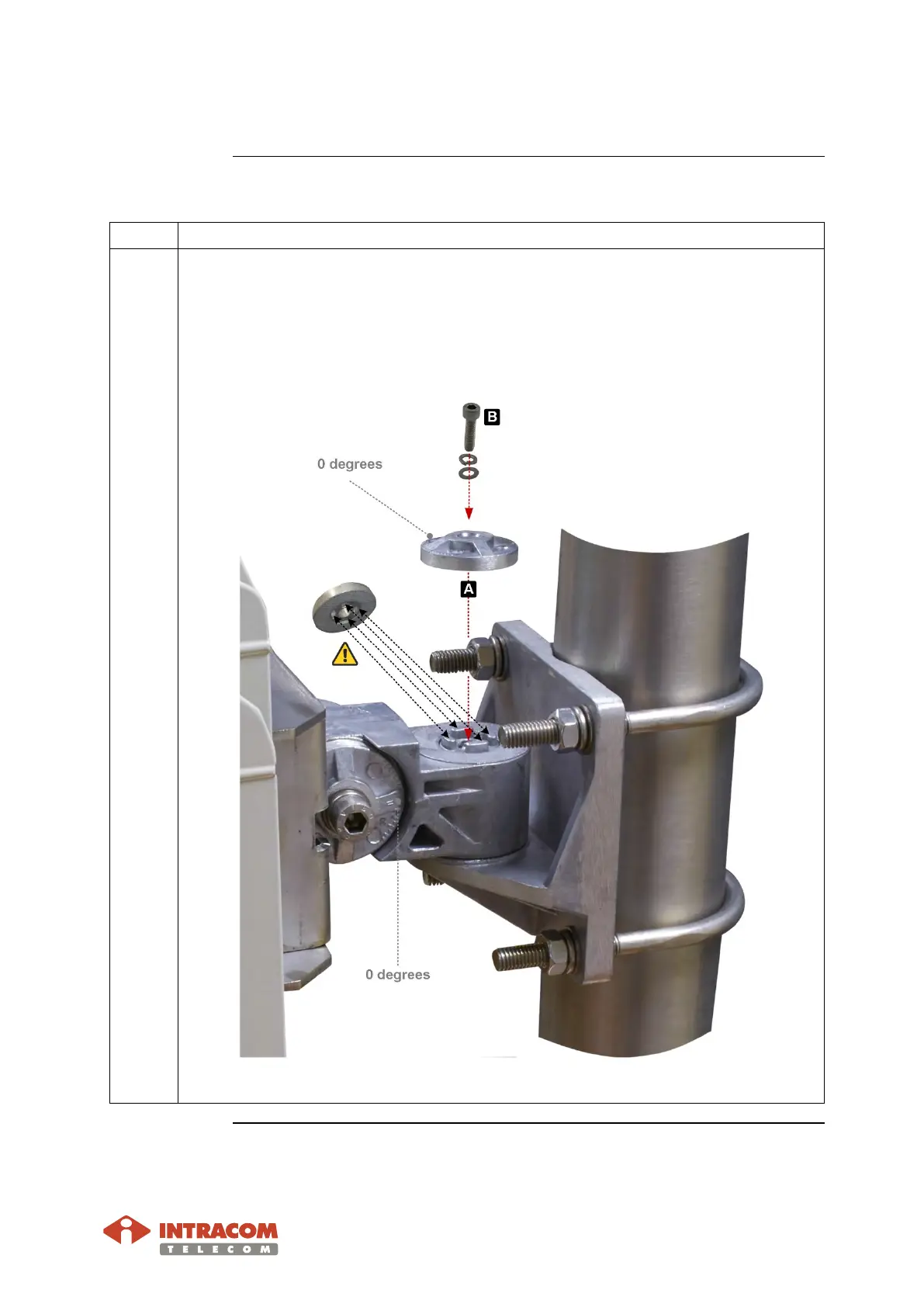

Install the azimuth adjuster (taking into account the caution), as shown
below.
B:
Install the azimuth adjuster bolt, as shown below (washer, lock washer and
bolt).
Continued on next page
