SECTION 2—FRONT HANGERS
1 0
Adjusting the Footplate Height
1. Unscrew locking bolt (5 mm Allen key and 10 mm Spanner).
2. Position the footrest assembly to the desired height.
NOTE: A 50 mm clearance between the bottom of the footplate and the ground/floor
MUST be maintained at all times.
3. If the distance between the bottom of footplate and the ground/floor is not 50 mm
minimum, adjust footrest tube accordingly.
4. Using the locking bolt with 5 mm Allen key and 10 mm Spanner, secure the
footrest tube to the footrest support. Securely tighten (5 Nm).
5. If necessary, repeat STEPS 2
-
4 to adjust remaining footrest.
Adjusting Calf pad Depth
4. Remove the Locking Screw B that secure the calf pad to the calf pad bracket.
5. Insert Locking Screw B through one of three calf pad bracket mounting holes.
6. Using the Locking Screw B secure the calf pad to the calf pad bracket.
7. If necessary, repeat STEPS 1
-
3 to adjust remaining calf pad assembly.

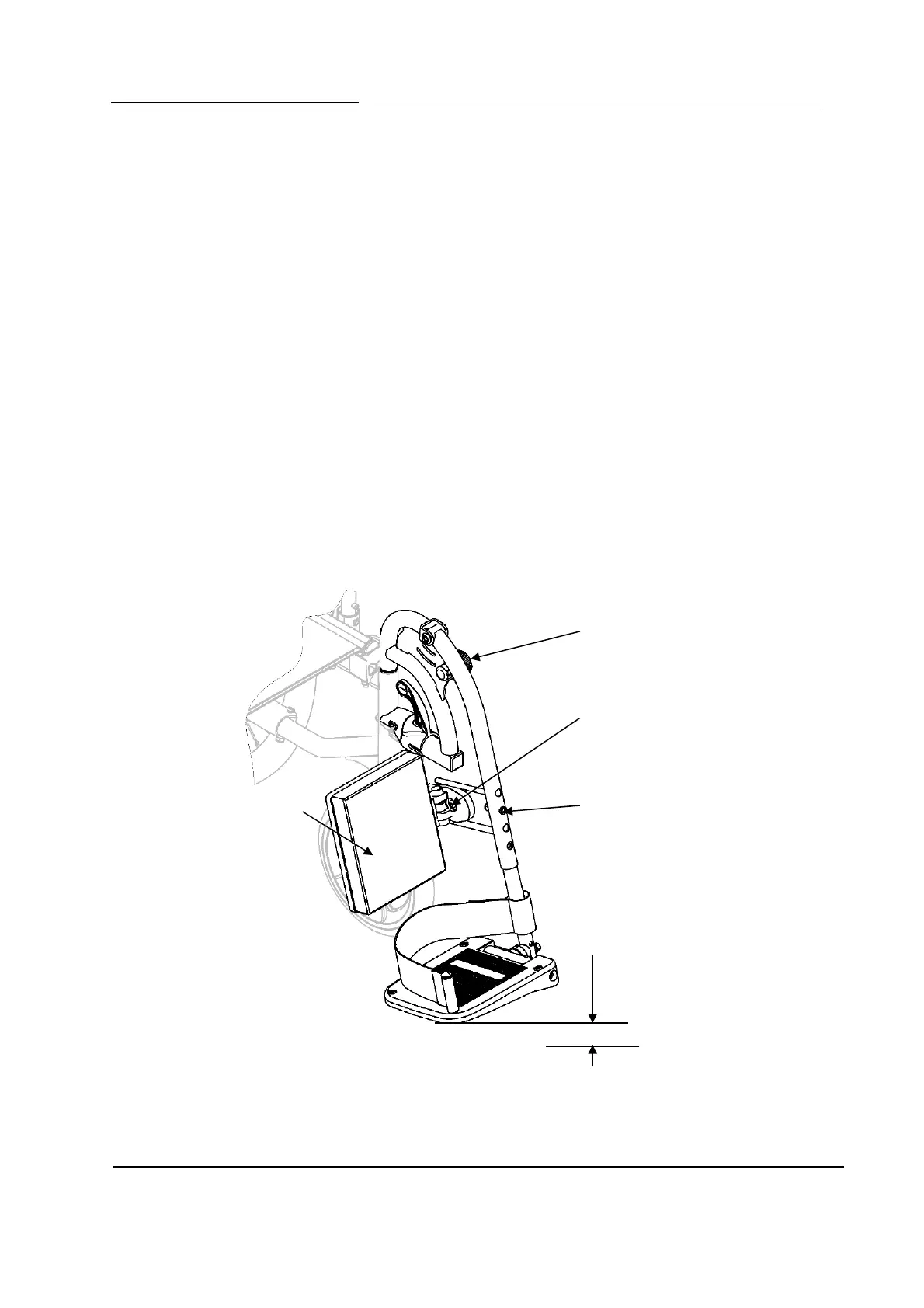

FIGURE 2.5 Adjusting Elevating Legrest Height and Calf pad Height/Depth
Calf pad
Knob
Locking Screw B
(M6)
Locking Bolt A
(M6)
To Next Page
