SECTION 4—SEAT/BACK
16
Adjusting the Height Adjustable Back
NOTE: For this procedure, refer to FIGURE 4.5.
1. Loosen, but DO NOT remove, the height adjustment knobs.
2. Reposition the back-canes to the desired height.
NOTE: Both back-canes should be adjusted to the same height.
NOTE: DO NOT raise push handles to maximum height when tilting the chair.
3. Tighten the height adjustment knobs.

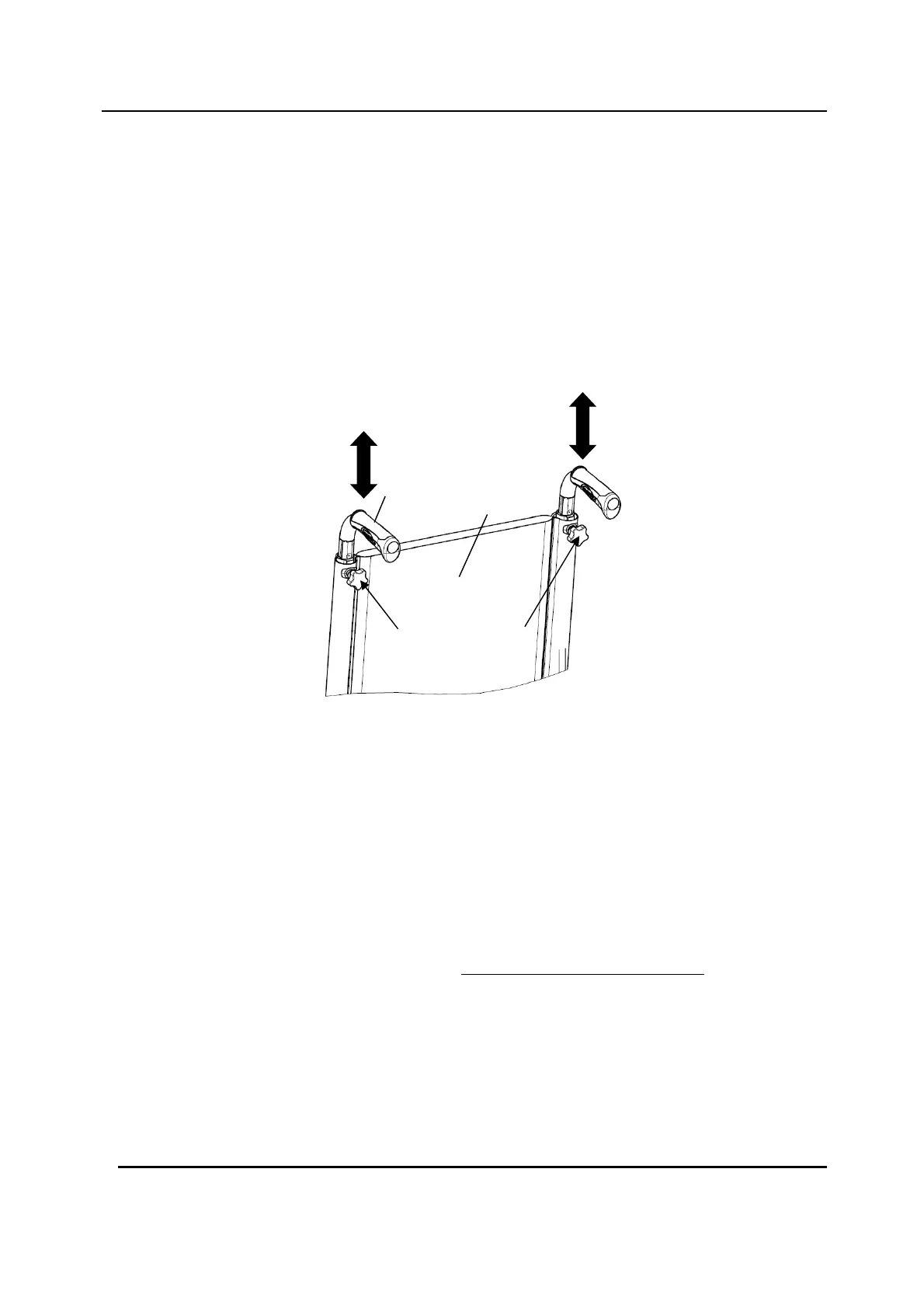

FIGURE 4.5 Adjusting the Height Adjustable Backrest cane
.
Removing/Installing different type of Backrests
NOTE: For this procedure, refer to FIGURE 4.6, next page.
Folding backrest
NOTE: To Install the Fixed/Folding backrest, reverse this procedure from STEP 3 to 1.
1. Remove the back-cane bracket. Refer to Removing Back-Cane Bracket paragraph.
2. Pull up on the seat upholstery.
3. Remove the two mounting screws and locknuts (M6) that secure the back-cane
bracket to the wheelchair frame.
4. Install the new set including the appropriate backrest upholstery
NOTE: Both back-canes should be set to the same adjustment hole.
Back
Backrest
Height Adjustment
To Next Page
