SECTION 3—ARMRESTS
1 2
Removing/Installing Swing Away Armrests (n° 2)
Removing/Installing Swing Away Armrest (n° 2)
NOTE: For this procedure, refer to FIGURE 3.2.
Removing Swing Away Armrest
1. Unlock existing armrest assembly by operate the push pin .
2. Swing back on the existing armrest to remove from the front arm socket.
3. Pull up on the existing armrest to remove from the rear pivot socket.
4. Repeat STEPS 1 - 3 for opposite side of wheelchair, if necessary.
Installing Swing Away Armrest
1. If necessary, remove existing armrest assembly as describe above .
2. Install new/existing armrest assembly, first into the rear pivot socket and
into the front arm socket.
3. Lock new/existing armrest assembly by operate the push pin .
Make sure that the dog point is properly engaged in its housing.
4. Repeat STEPS 1 - 3 for opposite side, if necessary.

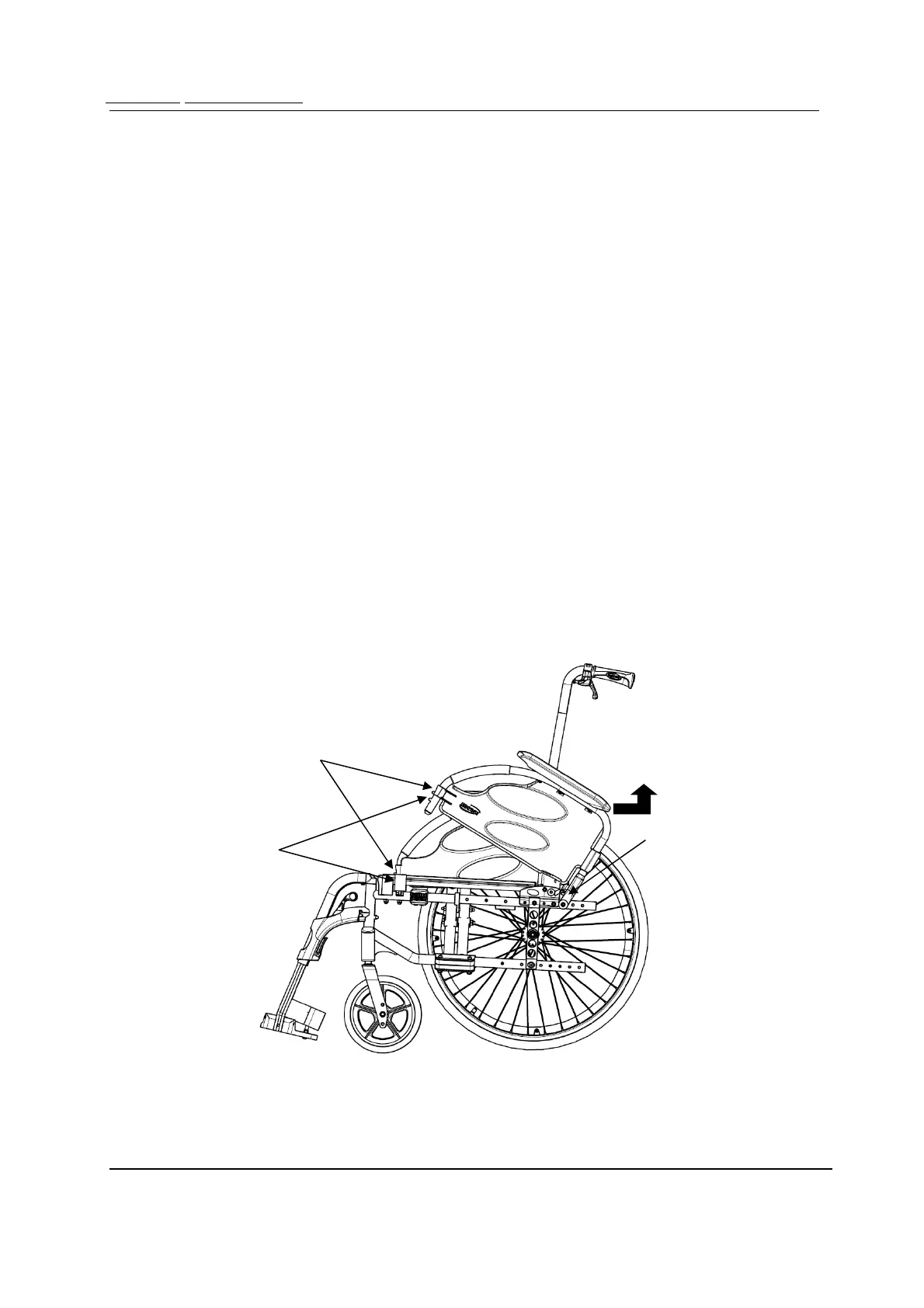

FIGURE 3.2 Removing/Installing Swing Away Armrest
Push pin
Rear pivot
socket
Dog point
