SECTION 4—SEAT/BACK
20
Installing/Removing the Back brace
W A R N I N G
If a back brace is already installed, you don’t have to re-install the back-cane
inserts (for fixed backrest canes only).
After ANY adjustments, repair or service and before use, make sure all attaching
hardware is fitted and tightened securely - otherwise injury or damage may
occur.
NOTE: For this procedure, refer to FIGURE 4.10.
NOTE: To remove the back brace, reverse this procedure.
1. Remove the end caps from the back-canes.
2. Remove the handles from the back-canes (Cut the handle lengthwise thanks to a
sharp tool).
3. Install the inserts into the canes (fixed backrest canes only).
4. Secure the inserts with mounting screws (fixed backrest canes only).
5. Install the handles on the back-canes (Previously, spray a solution of neutral alcohol
inside the handle and settle it immediately on the back-cane).
6. Align the back brace ends with the handles of the back-canes.
7. Secure the back brace to the back-canes with the mounting bolts.

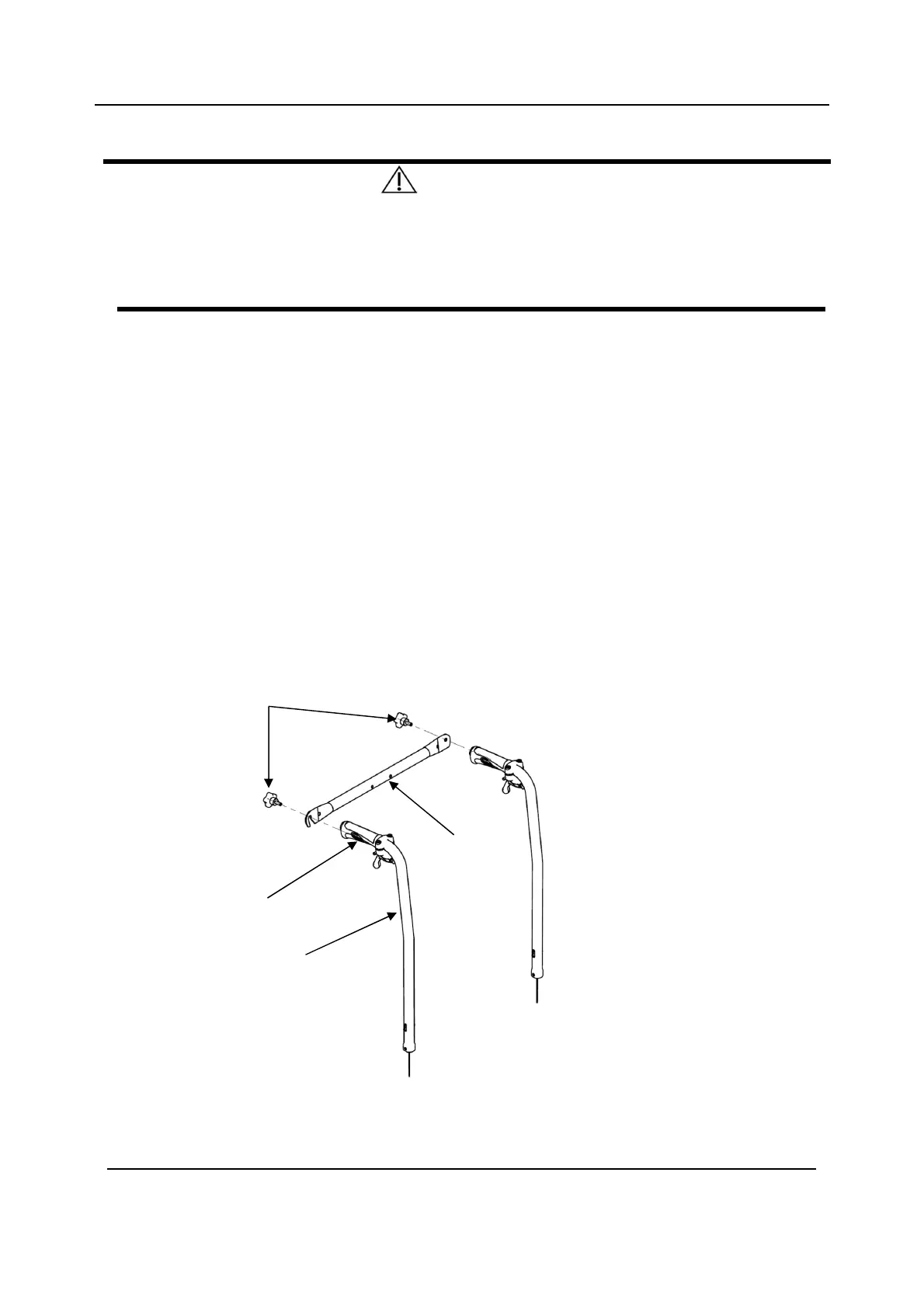

FIG
URE 4.1
0
Installing/Removing the Back
brace
Mounting Bolts
Handle
Back brace
Back-Canes
