SECTION 2—FRONT HANGERS
8
Replacing Heel Strap
NOTE: For this procedure, refer to FIGURE 2.2.
1. Remove the locking screw (5mm Allen Key) or locking bolt (5 mm Allen key and
10 mm Spanner) that secure the footrest tube to the footrest support.
2. Remove the lower footrest assembly.
3. Remove the mounting screw, strap pin that
secure the heel strap to the footplate.
4. Slide heel strap over footrest tube.
NOTE: When securing the heel strap to the
footrest assembly tighten the mounting screw
and strap pin until they are secure.
5. Using the mounting screw, strap pin, secure
the heel strap to the footplate.
6. Using the locking screw (M6) with a 5mm Allen key
or locking bolt with 5 mm Allen key and 10 mm Spanner,
secure the footrest tube to the footrest support.
7. Securely tighten (5Nm).
Locking screw or
locking bolt (M6)
Strap pin
Mounting screw
Heel strap

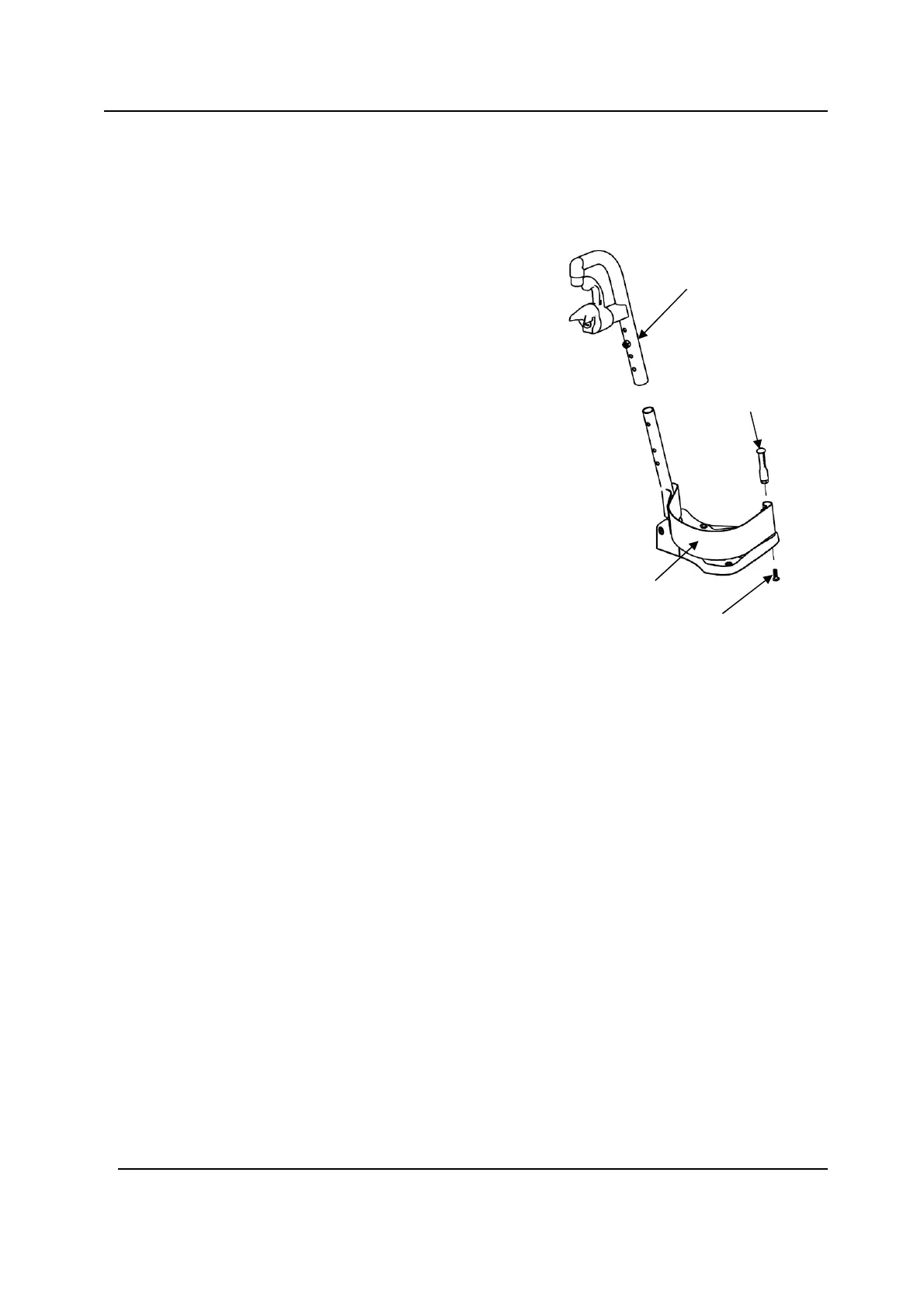

FIGURE 2.2 Replacing Heel Strap
