SECTION 4—SEAT/BACK
19
Installing/Removing Seat Posture Belt
NOTE: For this procedure, refer to FIGURE 4.9.
1. Remove seat cushion from wheelchair, if necessary.
2. Remove the mounting screw and locknut that secures the seat posture belt half to the
back-cane bracket.
3. Repeat STEP 2 for opposite side, if necessary.
4. Do one of the following:
• To install the seat posture belt, proceed to STEP 6.
• Remove the existing seat posture belt from the wheelchair.
5. Engage the two halves of the new seat posture belt.
6. Align the mounting holes on the back-cane bracket and one end of the new seat
posture belt.
7. Secure the new seat posture belt to the wheelchair frame with one mounting screw
(M6) and washer. Tighten securely (3-4 Nm).
8. Repeat STEPS 6 and 7 for the opposite side of the seat posture belt.
9. Reinstall seat cushion onto wheelchair, if necessary.
NOTE: Seat upholstery removed for clarity.

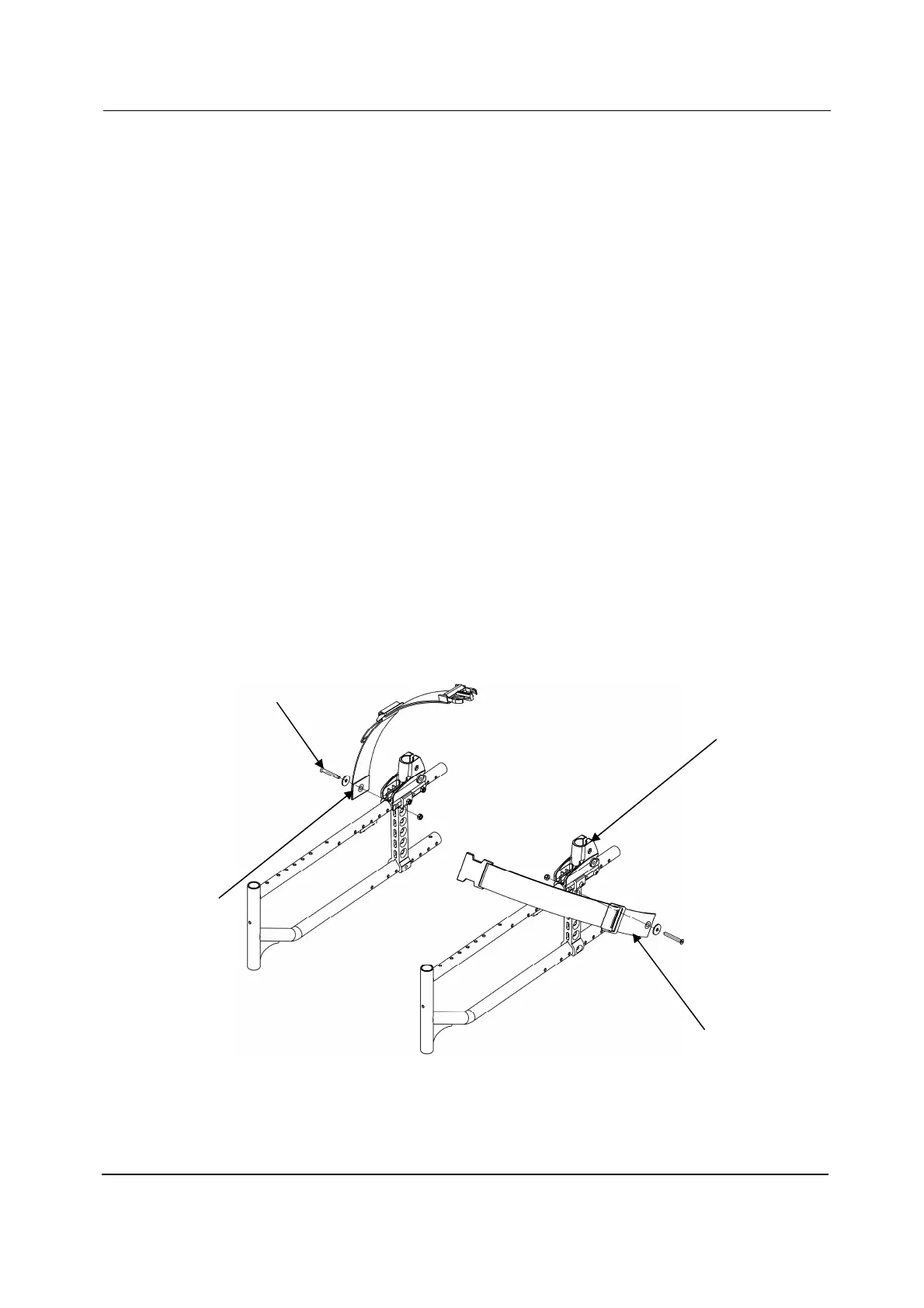

FIGURE 4.9 Installing/Removing Seat Posture Belt
Mounting screw (M6)
Back-Cane
Bracket
Seat Posture
belt Half
Seat Posture
belt Half
