SECTION 5—REAR WHEELS/FRONT CASTORS
Adjusting Rear Wheel Height
NOTE: For this procedure, refer to FIGURE 5.7.
1. Remove the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
2. Remove the locknut and washer that secures the axle bracket to the axle plate
(if needed).
3. Align the axle bracket with one of the two or three adjustment holes on the axle plate.
4. Secure the axle bracket to the axle plate, at the desired height, with the locknut
and washer (if needed).
5.
Install the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
6. Repeat STEPS 1 to 5 for the other rear wheel.
NOTE: Both rear wheels should be set at the same position.
Replacing/Repairing Rear Wheel & Front Castor
Tire/Tube
C A U T I O N
As with any vehicle, the wheels and tires should be checked periodically for cracks
and wear, and should be replaced when necessary.

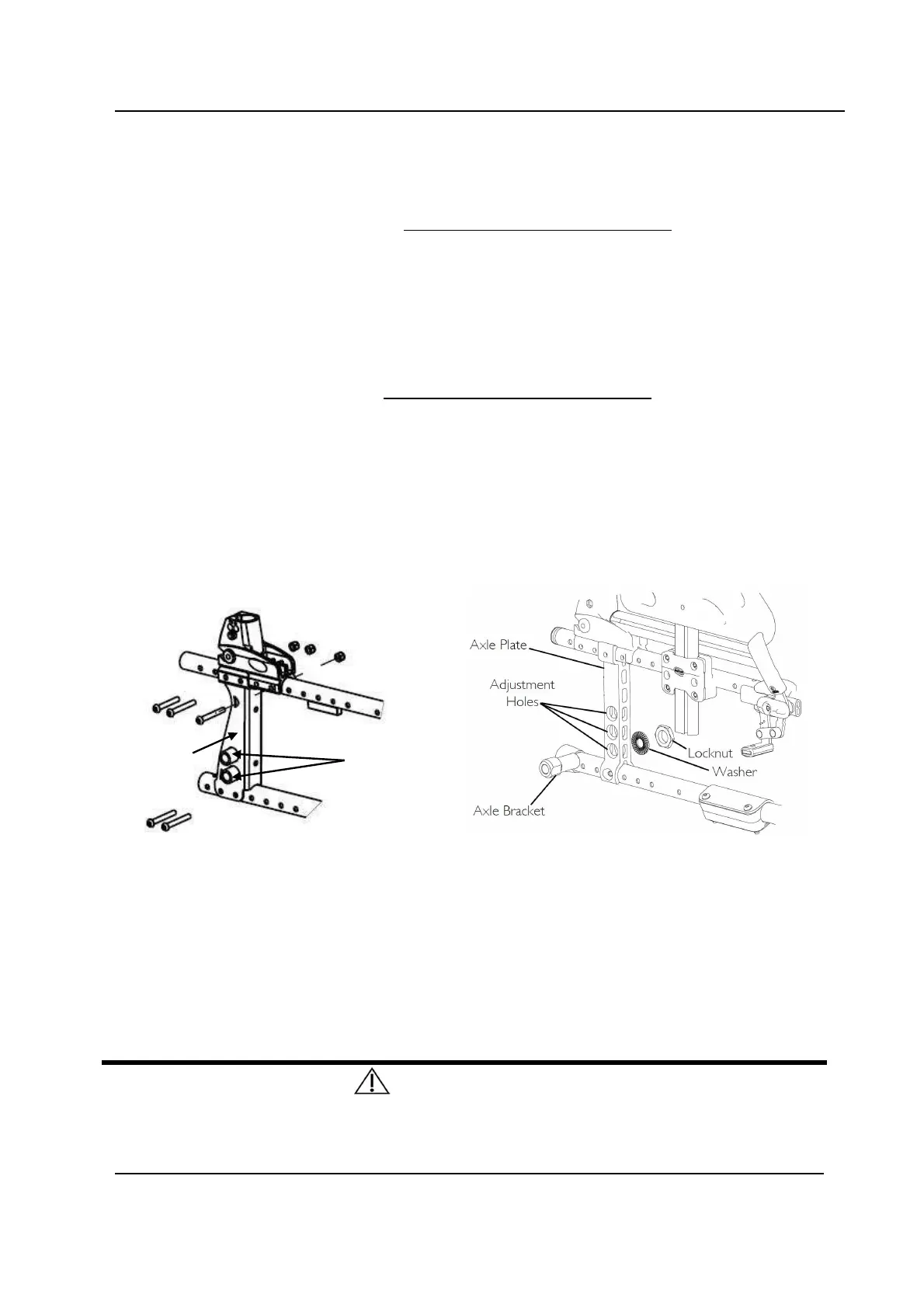

FIGURE 5.7 Adjusting Rear Wheel Height
Holes
Axle Plate
