Invacare Action2 NG User Manual

15
SECTION 4—SEAT/BACK
1. Fold the wheelchair.
2. Remove the mounting screw (Torx) that secures the seat upholstery to the front and back
seat rails.
3. Remove the end caps from the front of the seat rails.
4. Slide the seat upholstery out of the seat rails.

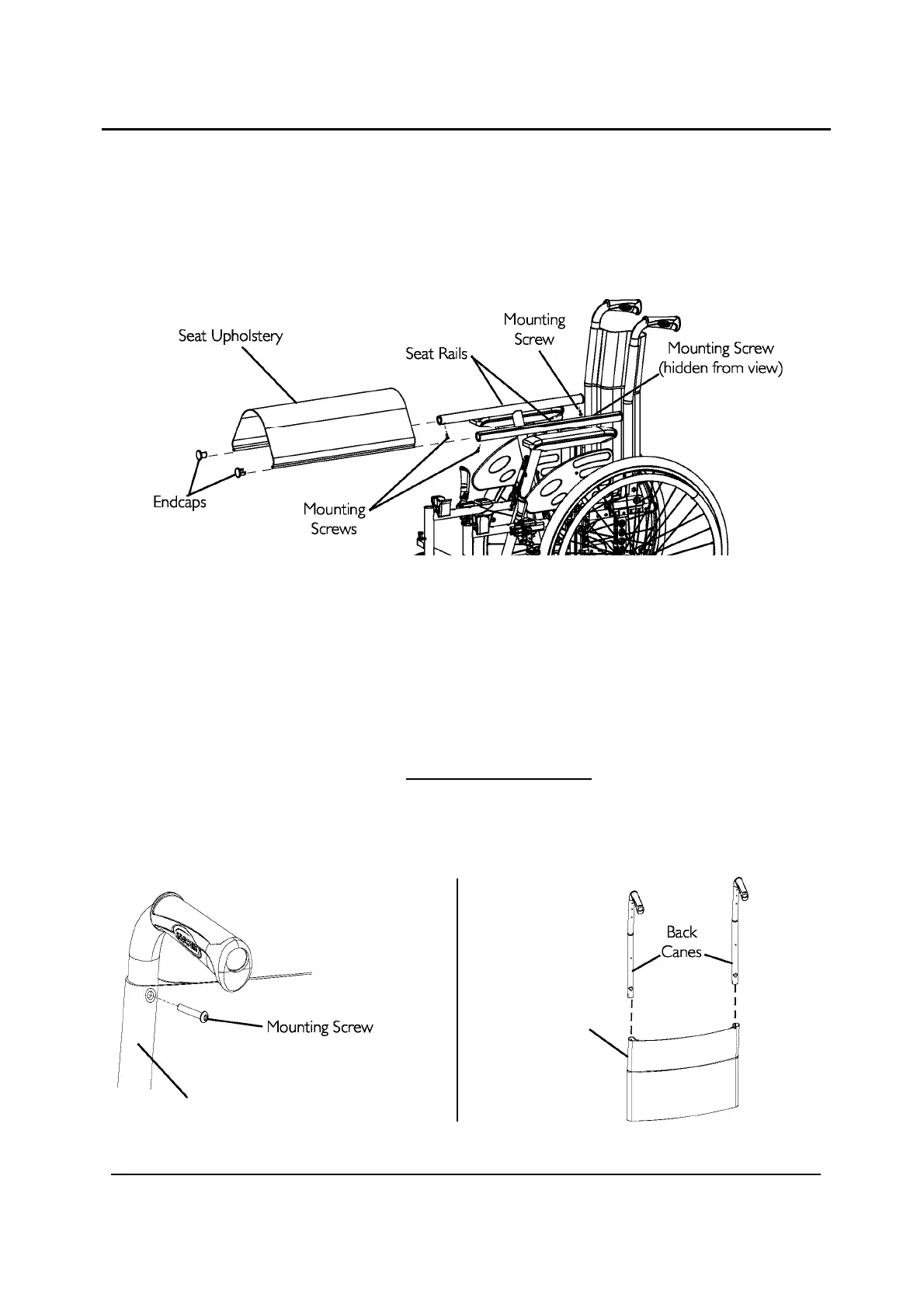

FIGURE 4.2 Removing/Installing Seat Upholstery
Removing/Installing Standard Back Upholstery
NOTE: For this procedure, refer to FIGURE 4.3.
Removing Back Upholstery
NOTE: To Install the Back Upholstery, reverse this procedure.
1. Remove the back-canes. Refer to Removing Back-Canes paragraph.
2. Remove the mounting screw that secures the back upholstery to the back-canes.
Refer to Detail “A”.
3. Remove the back upholstery from the back-canes. Refer to Detail “B”.
FIGURE 4.3 Removing/Installing Standard Back Upholstery
Back Cane
DETAIL “A”
DETA I L “ B”
Uph
olstery
