SECTION 4—SEAT/BACK
1 7
Removing/Installing different type of Backrests
Recliner backrest (Mechanical and Gas strut versions)
NOTE: For this procedure, refer to FIGURE 4.7.
To Install the Recliner backrest reverse this procedure from STEP 1 to 3.
1. Remove the back-cane bracket. Refer to Removing Back-Cane Bracket paragraph.
2. Pull up on the seat upholstery.
3. Remove the two mounting screws and locknuts that secure the back-cane bracket
to the wheelchair frame.
4. Install the new set including the appropriate backrest upholstery
NOTE: Both back-canes should be set to the same adjustment hole.

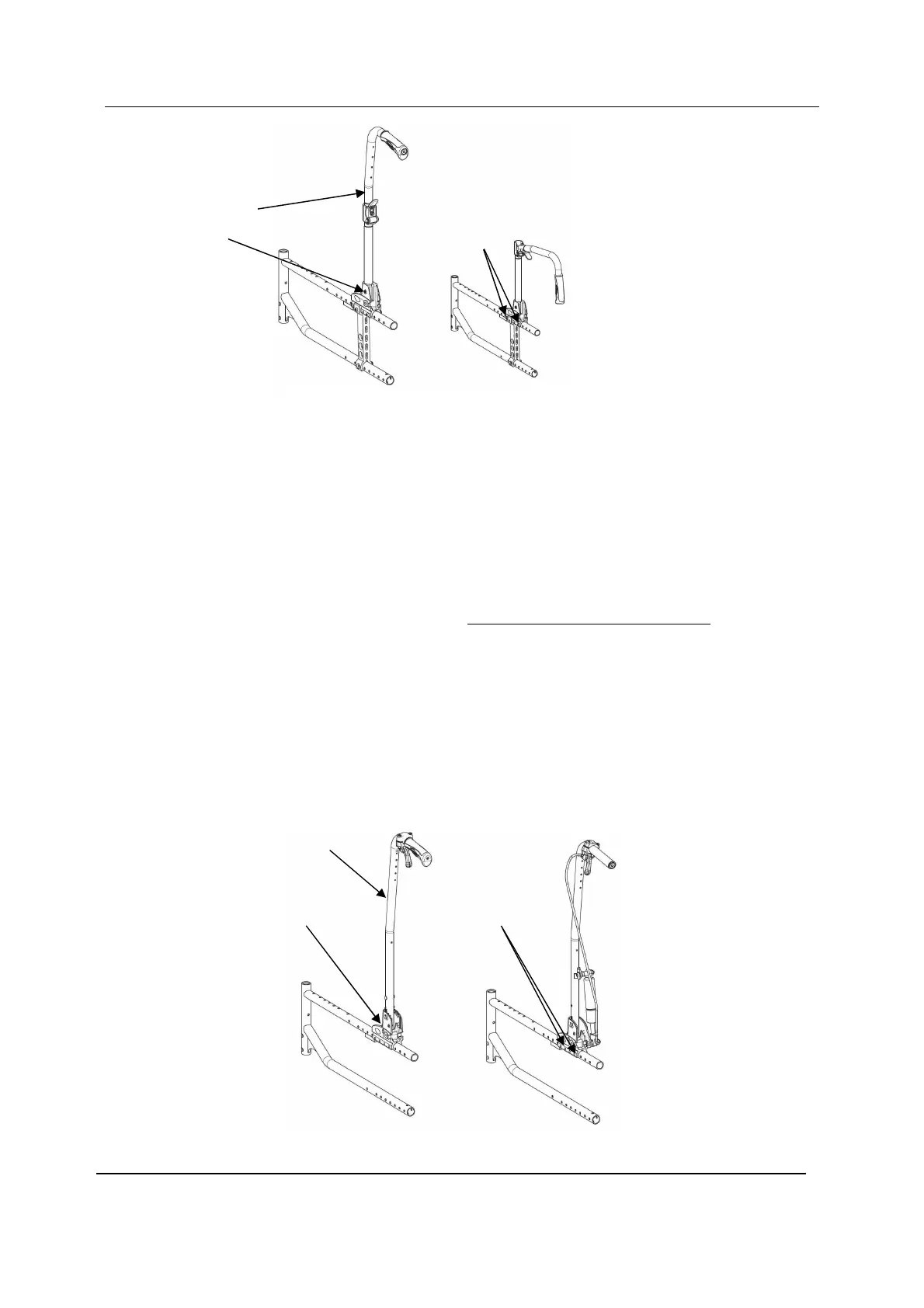

FIGURE 4.7 Recliner Backrests
Backrest Cane
Back-Cane
Mounting
FIGURE 4.6 Fixed/Folding Backrest
Mounting
Back-Cane
Backrest Cane
To Next Page
