SECTION 9—ANTI-TIPPERS
4 2
Installing/Adjusting Anti-Tippers with Tipping Aid
Installing Anti-Tippers with Tipping Aid
NOTE: For this procedure, refer to FIGURE 9.2.
1. Insert anti-tippers with the anti-tipper wheels pointing
toward ground/floor into the rear frame tubing until anti-
tippers vertical hole appear in the frame vertical hole.
2. Secure the anti-tippers with the mounting set (screw,
washer and locking nut) to the wheel chair frame.
3. Measure the distance between the bottom of the anti
-
tipper wheels and the ground/floor.
4. NOTE: A 30 to 50 mm clearance between the bottom of
the anti-tipper wheels and the ground/floor MUST be
maintained always.
5. If the distance between the bottom of anti-tipper wheels
and the ground/floor is not 30 to 50 mm, adjust anti-
tippers by push down the large washer (refer to detail ”A”).

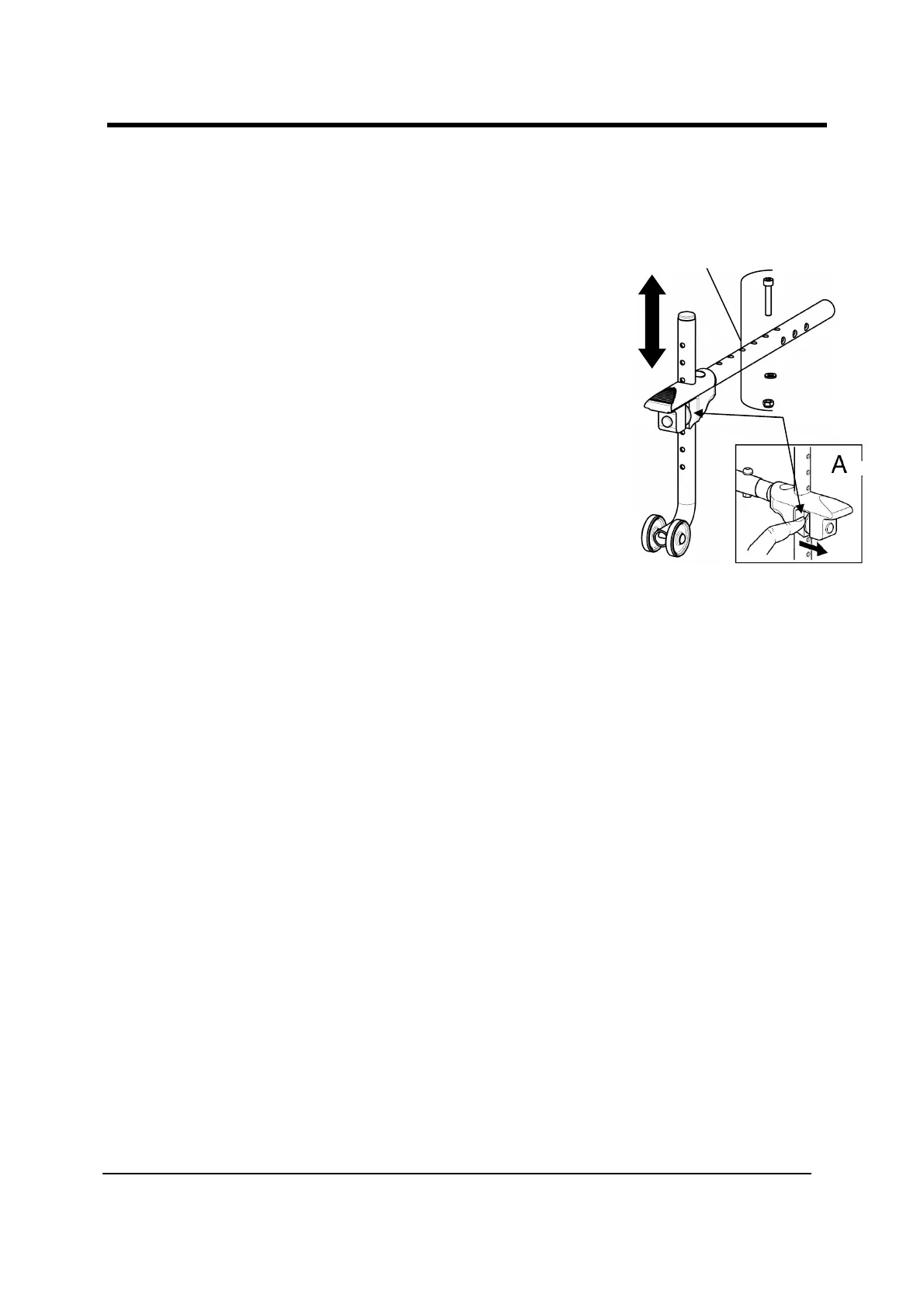

FIGURE 9.2
Installing Anti-Tippers with
Tipping Aid
