ServiceProcedures
ReplacingtheRightSideCrankArms

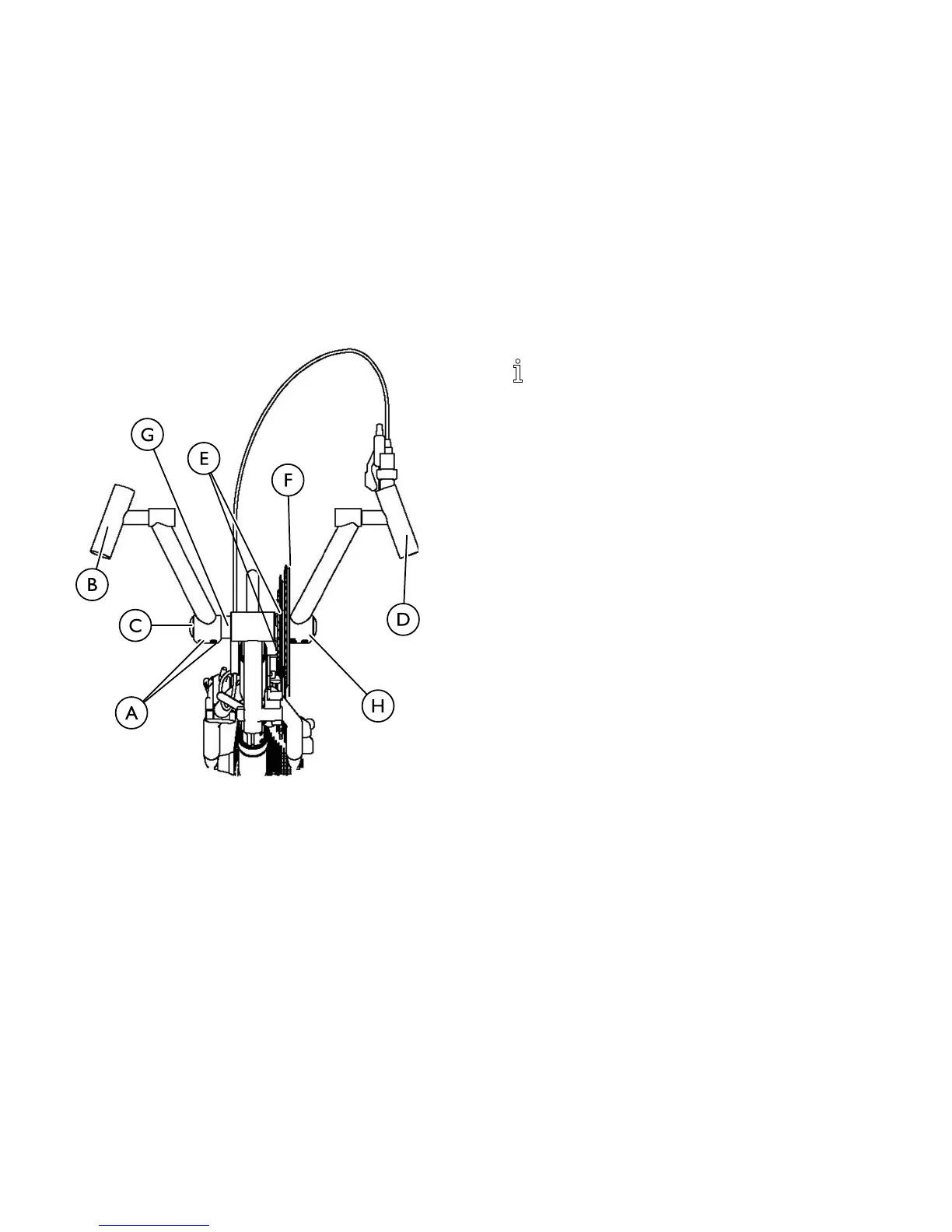

Refertoimagetotheleft.
1.RemovethetwomountingboltsEsecuringthechainringdisk
FtothetabsoftheexistingcrankarmD.
2.RemovethetwosocketscrewsAfromtheexistingcrankarm
clampH.
3.UsesocketscrewAfromcrankarmD(inthecenterhole)
toopenbinderofcrankarm.
4.RemovesocketscrewandcapfromthespindleC.
5.RemovetheexistingcrankarmDfromthespindleC.
6.PositionthenewcrankarmDontothespindleC.
7.UsingthetwomountingboltsE,securethetabsofthenew
crankarmDtothechainringdiskF.
8.EnsurethenewcrankarmDisevenlyalignedwiththeleftside
crankarmB.
9.ReinstallthesocketscrewandcapfromthespindleC.DO
NOTovertighten.
10.UsingthetwosocketscrewsA,securethenewcrankarm
clampHtothespindleC.Securelytighten.
11.MakesurethatthespacersGbetweenthebottombracketand
crankarms(B,D)donotspinfreely.
