Invacare®Perfecto₂™VOxygenConcentrator
5.Replacethelteraccessdoorandinstalltheairscoop
Gontothelteraccessdoorbyinsertingthesixtabs
HontheairscoopintothesixslotsEonthesidesof
thelteraccessdoor.

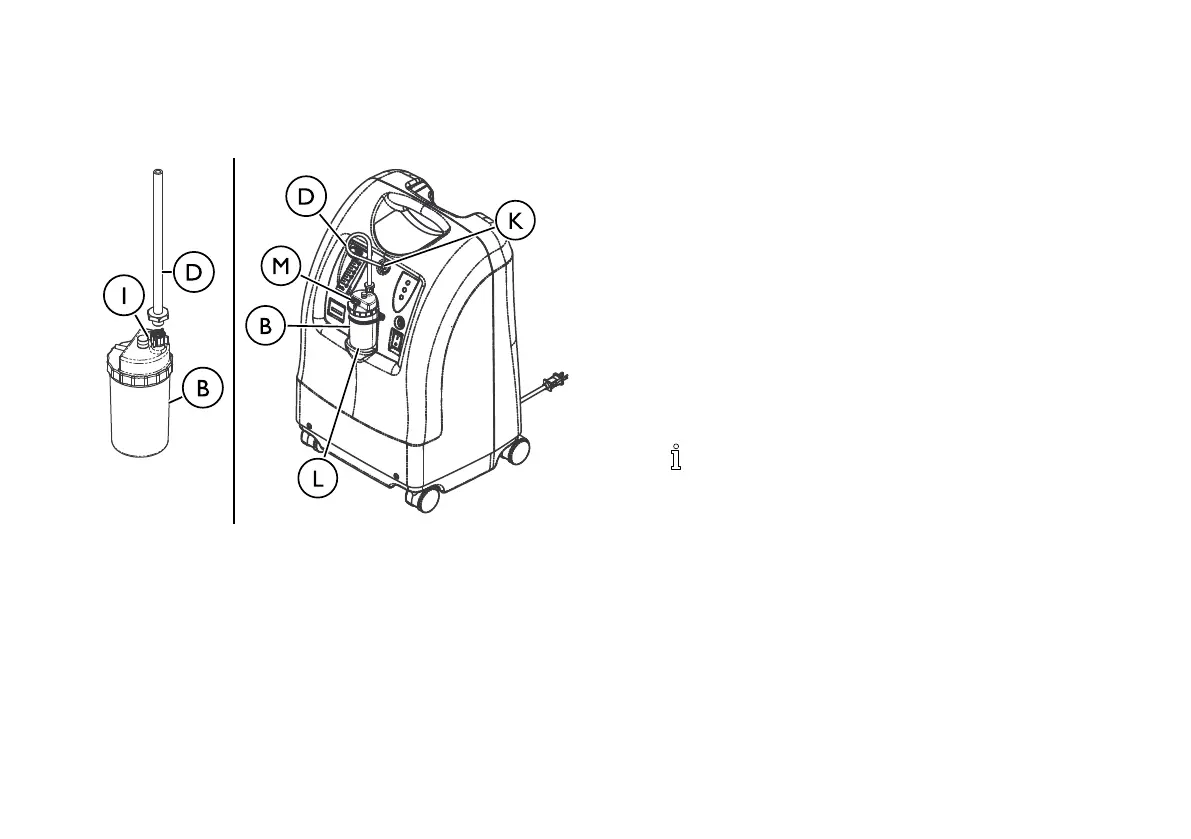

6.AttachthehumidierbottleadapterDtothehumidier
bottleBbyturningthewingnutIonthehumidier
bottlecounterclockwiseuntilitissecurelyfastened.
7.Selectthelocationforthehumidierbottle/adapter
assembly:
•Whenplacingthehumidierbottleinthe
compartmentLontheconcentrator,attachthe
humidierbottle/adaptertubeDtotheoxygen
outletconnectorKontheconcentrator.
•IfusingtheoptionalaccessoryHumidierBottle
Holder(M1521)topositionhumidieratpatient
sidelocation,placetheaccessoryonaatsurface
asclosetothepatientaspossible.Attachan
oxygentubingconnector(M4650)totheendofthe
humidierbottle/adaptertube.Connectoneend
oftheoxygensupplytubing(M4150orM4250)to
thefreeendoftheoxygentubingconnectorand
theoppositeendtotheoxygenoutletconnector
ontheconcentrator .
Whenusingtubingconnectionslongerthan2.1
m(7ft)inlength,positionthehumidieras
closetothepatientaspossibletoallowfor
maximumhumidicationoutput.
Foroptionalaccessories,referto4.1Optional
Accessories,page17.
8.Connectthenasalcannula.Referto6.3.2
Connecting/PositioningtheNasalCannula,page23.
22
1195056-B

Invacare Perfecto2 V Specifications

General

Oxygen Concentration	87% to 95.6%
Flow Rate	0.5 to 5 LPM
Power Source	120 VAC, 60 Hz
Operating Temperature	55°F to 90°F (12.7°C to 32.2°C)
Operating Humidity	15% to 95% non-condensing
