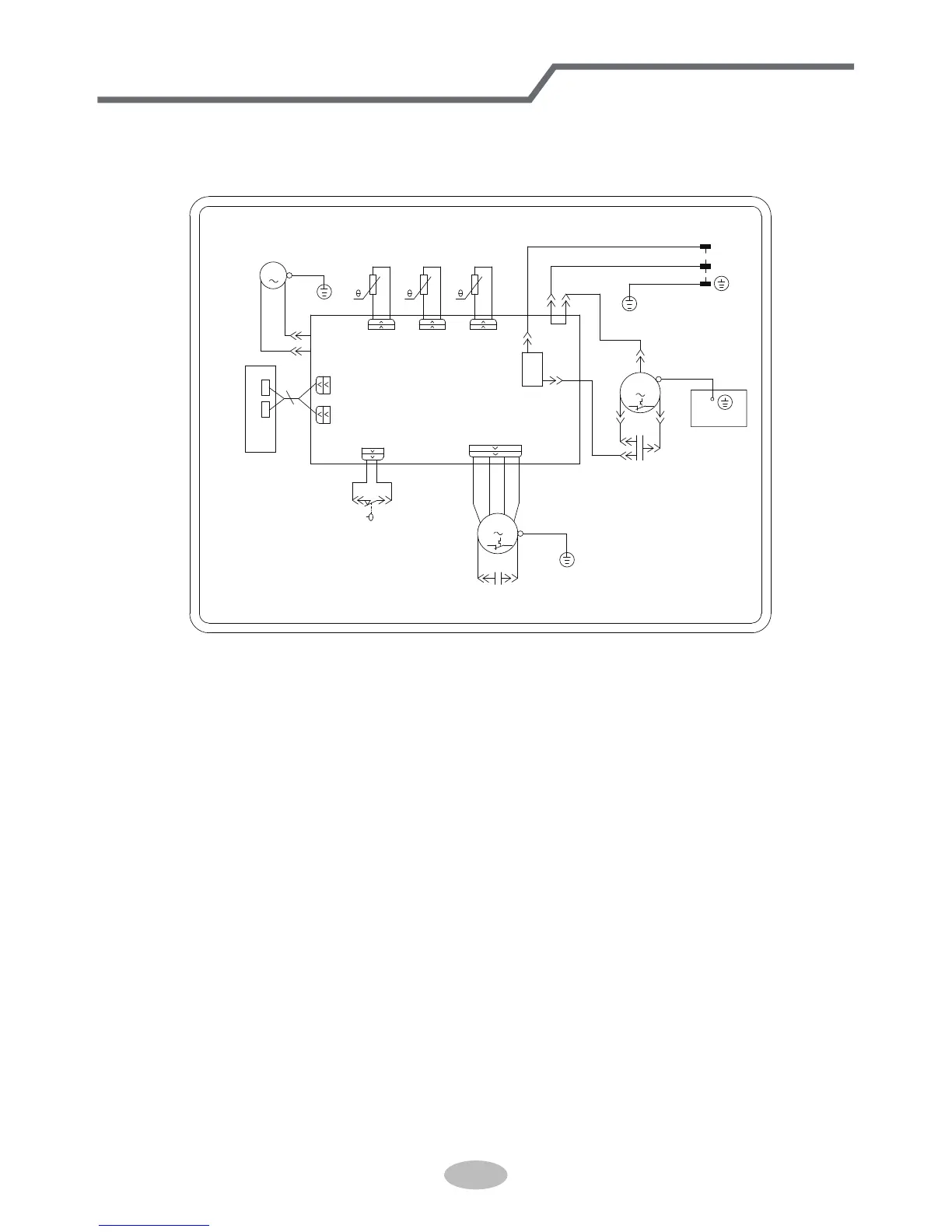

Electric schematic diagram
23
TUBE
TUBE TEMP.
RT2
SENSOR
WATER LEVEL
SWITCH
SENSOR
RT3
OUTTUBE TEMP.
OUTTUBE
YEGN
PE
PE
ELECTRIC BOX
PE
PE
SENSOR
C2
RD
FAN
MOTOR
BN
M1
YEGN
M2
RT1
AP2
DISP1
ROOM TEMP.
DISP2
RD
HIGH-WP
BK
WH
COM
NC
SA
BU
DISP1
BU
WH
BK
YE
RD
FAN
RD
DISP2
WATER(WATER1)
N1
AP1
COMP
L
K201
C1
YE
C
YEGN
COMP.
S
N3
BU
BU(WH)
YEGN(GN)
N
BN(BK)
L
POWER
ROOM
WATER MOTOR
R(M)
COMP.
MOTOR
25
27
Table of Contents
English
3
Table of Contents
3
Operation Environment
4
Safety Warning
5
Part' S N Ame
6
Operation Introduction for Control Panel
7
Buttons on Remote Controller
9
Introduction for Icons on Display Screen
9
Introduction for Buttons on Remote Controller
10
Function Introduction for Combination Buttons
12
Operation Guide
12
Child Lock Function
12
Replacement of Batteries in Remote Controller
13
Clean and Maintenance
14
Clean Filter
14
Malfunction Analysis
16
Installation Precaution
19
Preparation before Installation
20
Accessory List
20
Install Drainage Pipe
21
Installation and Disassembly of Heat Discharge Pipe
22
Operation Test
25
D Rainage Way
25
Electric Schematic Diagram
