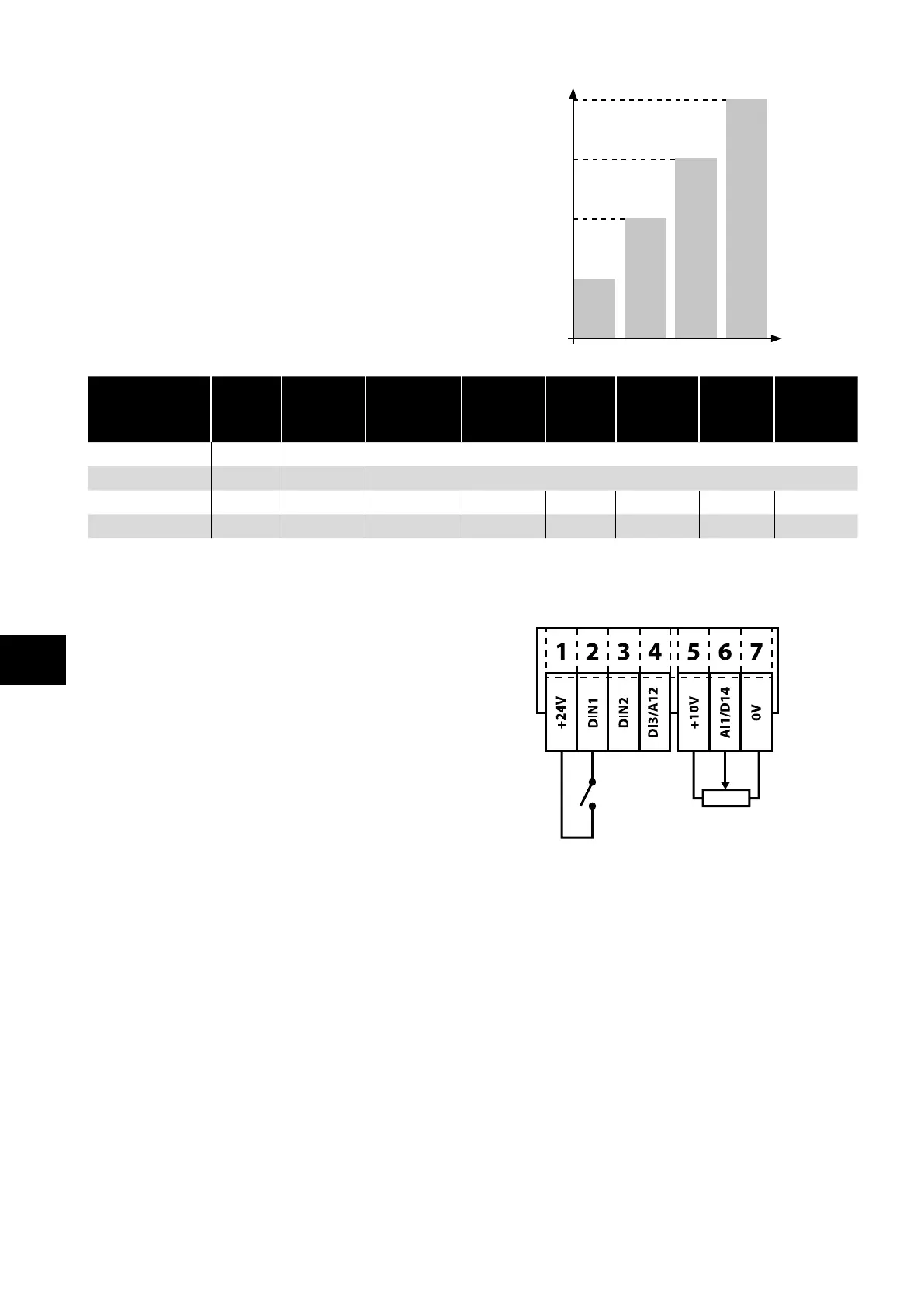

1.3. Installation Following a Period of Storage
Where the drive has been stored for some time prior to installation,
or has remained without the main power supply present for an
extended period of time, it is necessary to reform the DC capacitors
within the drive according to the following table before operation.
For drives which have not been connected to the main power supply
for a period of more than 2 years, this requires a reduced mains
voltage mains voltage to be applied for a time period, and gradually
increased prior to operating the drive. The voltage levels relative to
the drive rated voltage, and the time periods for which they must be
applied are shown in the following table. Following completion of the
procedure, the drive may be operated as normal.
100%
75%
50%
25%
T1 T2 T3 T4
Storage Period
/Power-OFF
Period
Initial
Input
Voltage
Level
Time
Period T1
Secondary
Input
Voltage
Level
Time
Period T2
Third
Input
Voltage
Level
Time
Period T3
Final
Input
Voltage
Level
Time
Period T4
Up to 1 Year 100% N/A
1 – 2 Years 100% 1 Hour N/A
2 – 3 Years 25% 30 Minutes 50% 30 Minutes 75% 30 Minutes 100% 30 Minutes
More than 3 Years 25% 2 Hours 50% 2 Hours 75% 2 Hours 100% 2 Hours
1.4. Quick Start Overview
Quick Start – IP20
Connect a Start / Stop switch between control
terminals 1 & 2
o Close the Switch to Start
o Open to Stop
Connect a potentiometer (5k – 10kΩ) between terminals 5,
6 and 7 as shown
o Adjust the potentiometer to vary the speed from P-02
(0Hz default) to P-01 (50 / 60 Hz default)
Quick Start Up
1
To Next Page
