Optidrive Plus 3
GV
Compact - User Guide
6
www.invertek.co.uk
3. Mechanical Installation
3.1. General
• Store the Optidrive in its box until required. Storage should be clean and dry and within the temperature range –40°C to +60°C
• The Optidrive must be installed in a pollution degree 1 or 2 environment

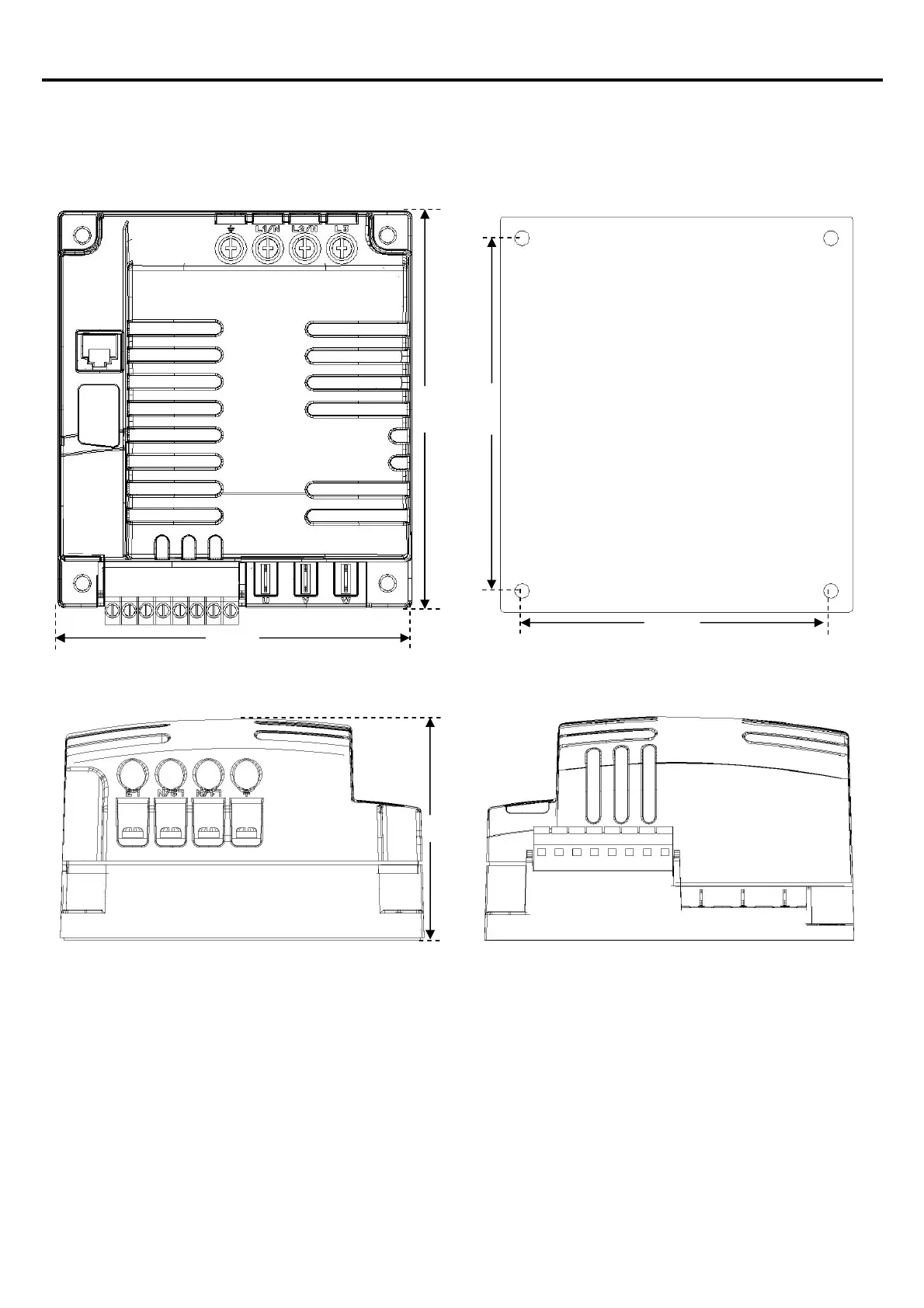

3.2. Mechanical dimensions and mounting
Top View
Base View
Mounting Location Holes
Four Total, located at each corner, 4.3mm Diameter suitable for
M4 screws, 2.5Nm Max.
Power Connection End View Motor & Control Terminals End View
3.3. Enclosure mounting
• The Optidrive Plus 3GV Compact is supplied in an IP20 enclosure, designed to be mounted by the user on a thermally conductive material
to dissipate the heat generated by the drive. Typically, this can be a motor or steel control panel.
• The temperature of the heatsink and drive module must be maintained in the range -10 to + 65°C
• The ambient temperature around the drive must not exceed 60°C
• Typically power losses are approximately 3% of motor absorbed power
• If the external environment contains contamination particles (e.g. dust), the unit should be suitably protected to ensure no damage can
occur.
• High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.
66mm
120mm
106mm
104.5mm
91.5mm
