4
Mechanical Information and Mounting

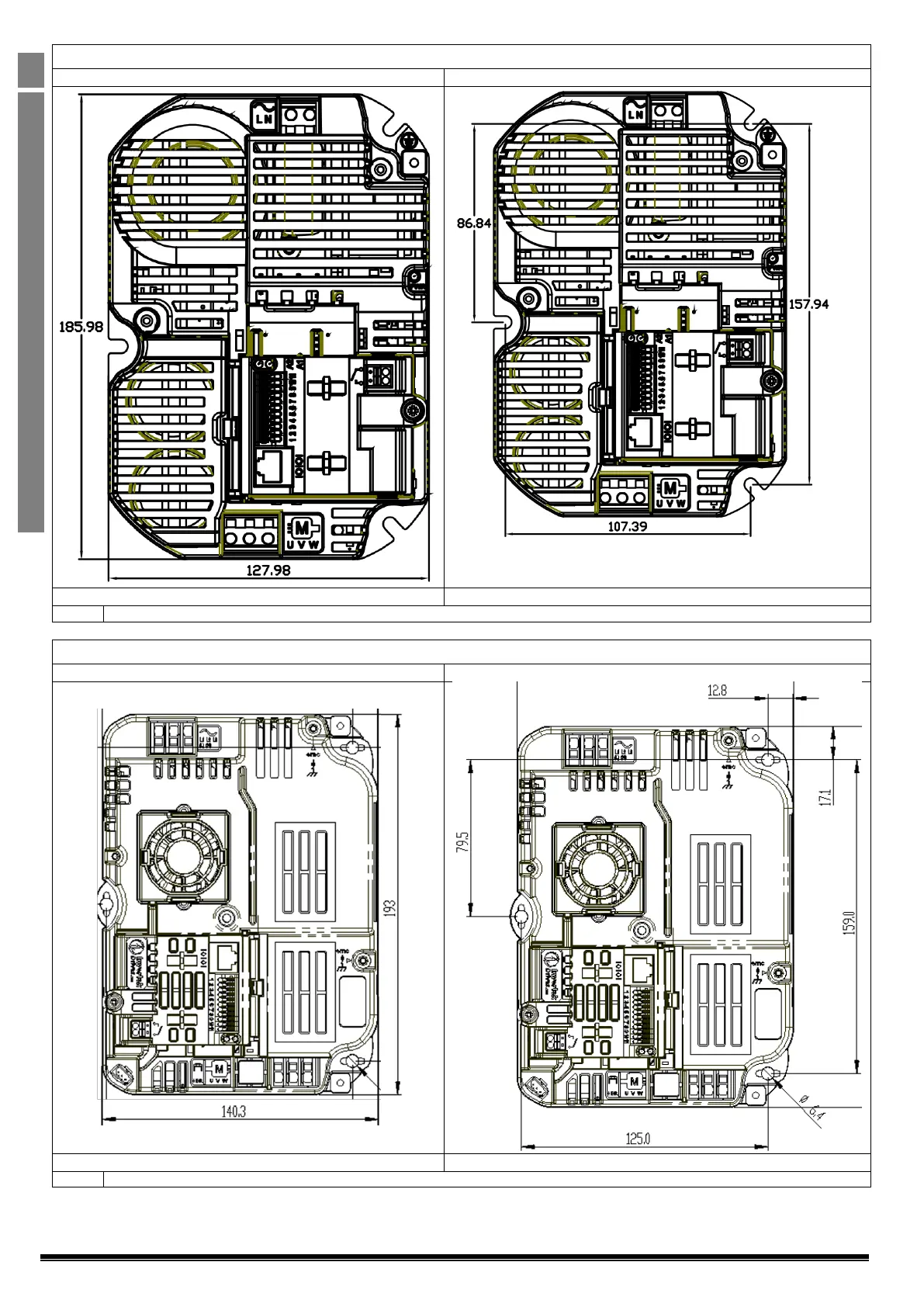

4.2.2. Frame Size 1C –PFC Drives
Overall Dimensions
Mounting Points
Depth :
Use 3 x M4 (No. 8) bolts or screws, tightening torque : 4Nm / 3ft-lb
Weight
0.7kg, 1.54lb
4.2.3. Frame Size 2
Overall Dimensions
Mounting Points
Depth : 89mm
Use 3 x M4 (No. 8) bolts or screws, tightening torque : 4Nm / 3ft-lb
Weight
