Additional Options
10. Additional Options

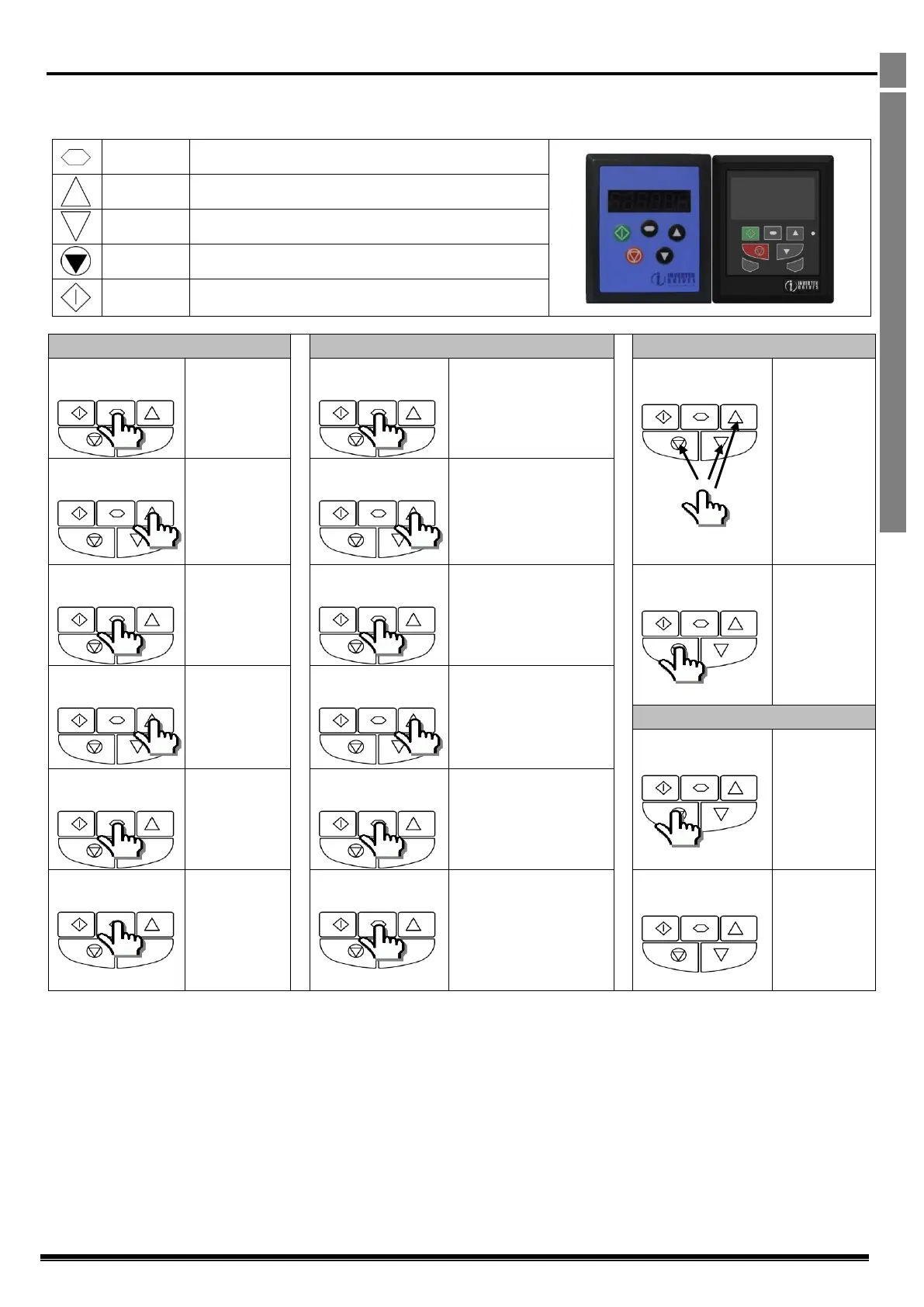

10.1. Managing the remote Keypad.
The drive is configured and its operation monitored via the keypad and display.
NAVIGATE
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes
UP
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode
DOWN
Used to decrease speed in real-time mode or to decrease
parameter values in parameter edit mode
RESET /
STOP
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
START
When in keypad mode, used to Start a stopped drive.
10.2. Changing Parameters
10.3. Read Only Parameter Access
10.4. Resetting Parameters


Press and hold
the Navigate
key > 2
seconds


Press and hold the
Navigate key > 2 seconds

To reset
parameter
values to their
factory default
settings, press
and hold Up,
Down and
Stop buttons
for > 2
seconds.
The display will
show “”


Use the up and
down keys to
select the
required
parameter


Use the up and down
keys to select P-00


Press the
Navigate key
for < 1 second


Press the Navigate key for
< 1 second

Press the Stop
key.
The display will
show “”


Adjust the
value using the
Up and Down
keys


Use the up and down
keys to select the
required Read Only
parameter
10.5. Resetting a Trip

Press the Stop
key.
The display will
show “”


Press for < 1
second to
return to the
parameter
menu


Press the Navigate key for
< 1 second to display the
value


Press for > 2
seconds to
return to the
operating
display


Press and hold the
Navigate key > 2 seconds
to return to the operating
display

