Optidrive Compact-2 Engineering Guide Issue 07.docx

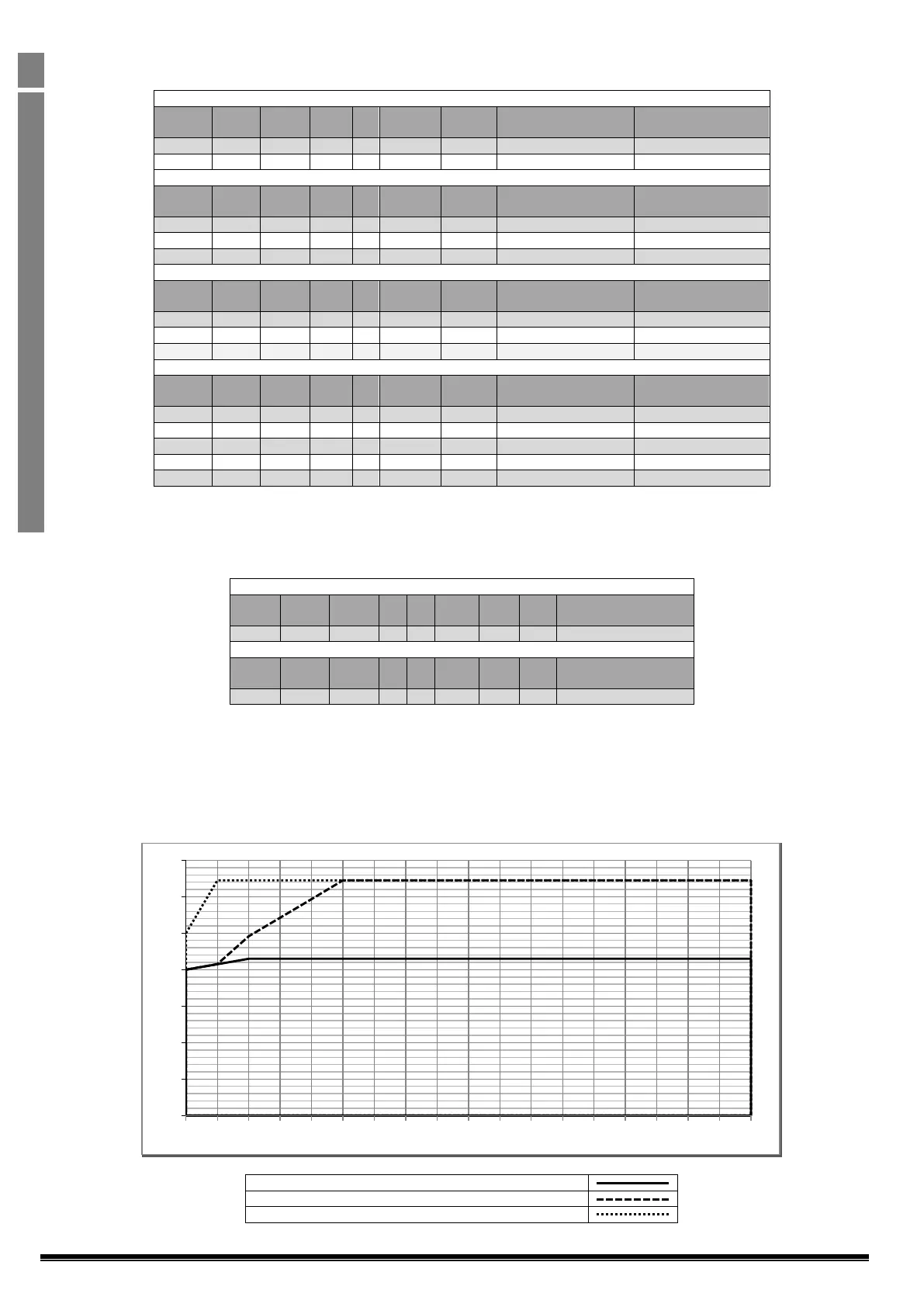

3.3. Available Models
3.3.1. Standard Units
110 – 115 + 10% / - 10%, 1 Phase Input, 3 Phase 230V Output (Voltage Doubler)
200 – 240 + 10% / - 10%, 1 Phase Input, 3 Phase Output
200 – 240 + 10% / - 10%, 3 Phase Input, 3 Phase Output
380 – 480 + 10% / - 10%, 3 Phase Input, 3 Phase Output
Note: Models which do not have an internal stirrer fan fitted as standard (Frame Size 1A) are optionally available with a stirrer fan if this is
required by the application to maintain the temperatures within acceptable limits. In this case, the dimensions including the fan are as Frame Size
1B.
3.3.2. Active PFC Units
110 – 230 + 10% / - 20%, 1 Phase Input, 3 Phase 230V Output
200 – 240 + 10% / - 10%, 1 Phase Input, 3 Phase Output
3.4. Power Module Output Current Capacity
3.4.1. Output Current Capacity Relative to Supply Voltage
OPC-2-110043-1F11P03#
This unit can operate with a supply voltage range from 90 – 264VAC.
When the supply voltage is below 110 Volt, continuous output current capacity and available overload current are reduced as shown below.
Continuous Output Current Capacity
Permissible Overload at 40Hz Output Frequency for 60 Seconds
Permissible Overload at 50Hz Output Frequency for 60 Seconds
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 264
