13. Appendices
13.1. Appendix A – Disconnecting the EMC Filter

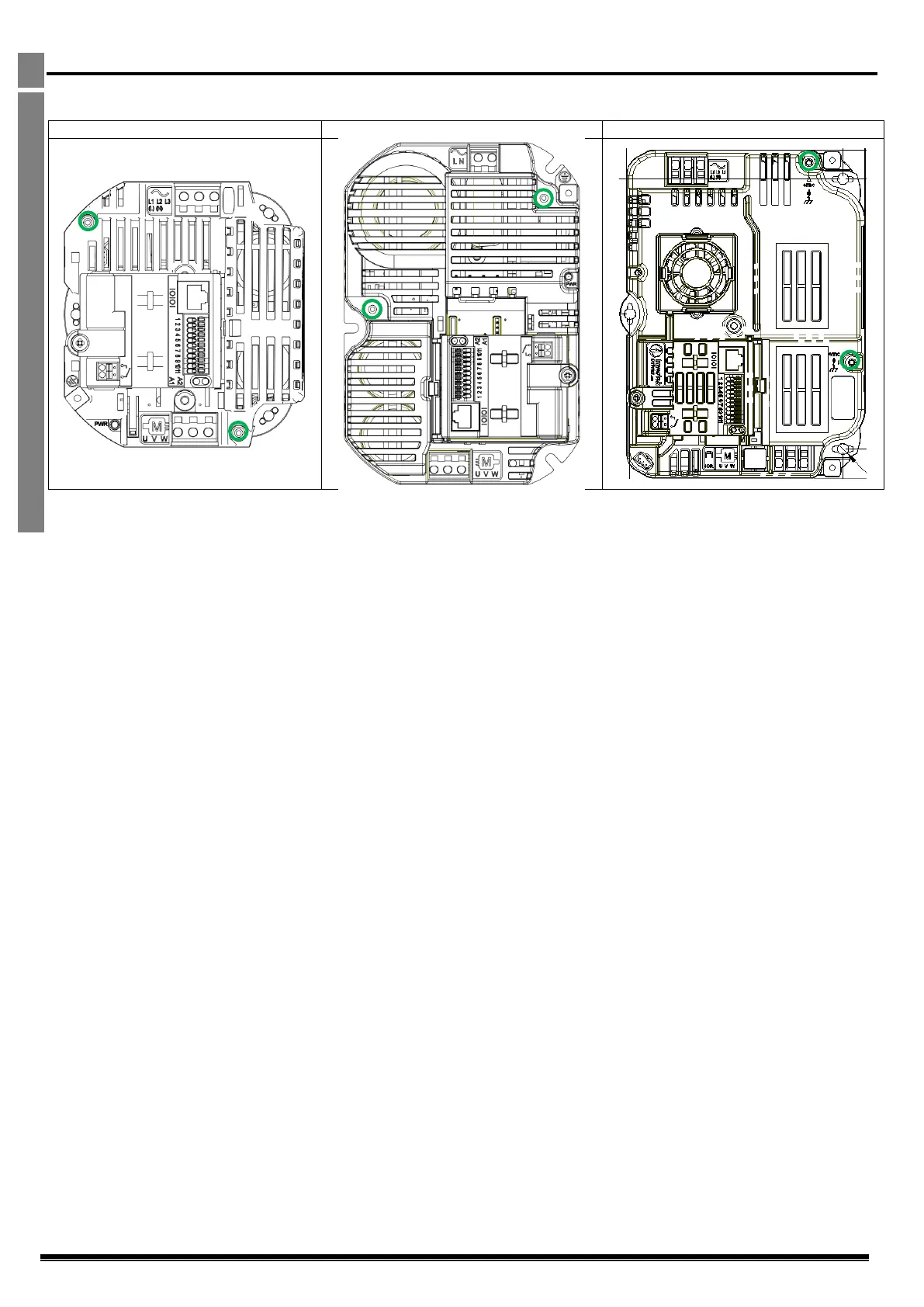

Remove the screws highlighted below.
Frame Size 1A and 1B
Frame Size 1C
Frame Size 2
