Goodrive10 Series Mini VFD Keypad operation
-22-
4.2.3 Displaying fault information
After detecting a fault signal, the VFD enters the fault alarm state immediately, the fault code
blinks on the keypad, and the TRIP indicator is on. You can perform fault reset by using the
STOP/RST key, control terminals, or communication commands.
If the fault persists, the fault code is continuously displayed.
4.2.4 Editing function codes
You can press the PRG/ESC key to enter the editing mode in stopped, running, or fault
alarm state (if a user password is used, see the description of P07.00). The editing mode
contains two levels of menus in the following sequence: Function code group or function
code number → Function code setting. You can press the DATA/ENT key to enter the
function parameter display interface. On the function parameter display interface, you can
press the DATA/ENT key to save parameter settings or press the PRG/ESC key to exit the
parameter display interface.
RUN/TUNE FWD/REV LOCAL/REMOT
Hz
TRIP
A
V
RPM
%
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
RPM
%
RPM
%

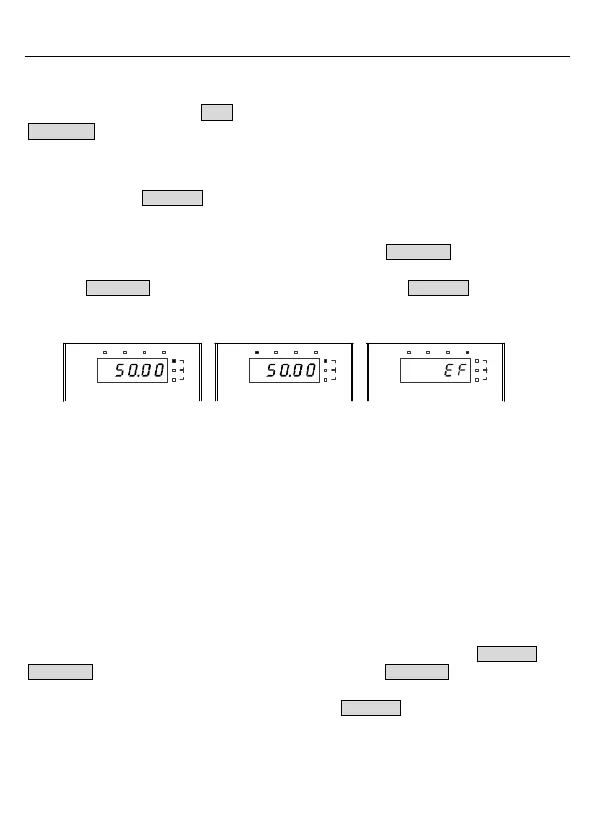

Figure 4-2 Status display
4.3 Operations on the keypad
You can operate the VFD by using the keypad. For details about function code descriptions,
see the function code list.
4.3.1 Modifying VFD function codes
The VFD provides three levels of menus, including:
1. Function code group number (level-1 menu)
2. Function code number (level-2 menu)
3. Function code setting (level-3 menu)
Note: When performing operations on the level-3 menu, you can press the PRG/ESC or
DATA/ENT key to return to the level-2 menu. If you press the DATA/ENT key, the set value
of the parameter is saved to the control board first, and then the level-2 menu is returned,
displaying the next function code. If you press the PRG/ESC key, the level-2 menu is
returned directly, without saving the set value of the parameter, and the current function
code is displayed.
If you enter the level-3 menu but the parameter does not have a digit blinking, the parameter
