INVT GD10-0R7G-4-B User Manual

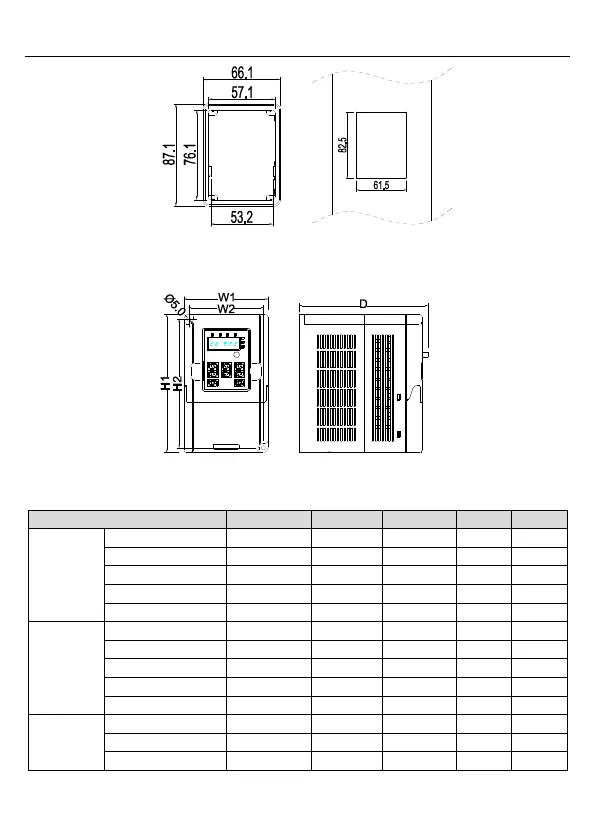

Goodrive10 Series Mini VFD Dimension drawings
-107-
Keypad adapter bracket
Installation dimensions
B.2 VFD chart
Figure B-3 Wall mounting
Table B-1 Wall-mounting dimensions (unit: mm)
Model
W1
W2
H1
H2
D
1PH 220V
GD10-0R2G-S2-B
85.0
74.0
145.5
131.5
134.2
GD10-0R4G-S2-B
85.0
74.0
145.5
131.5
134.2
GD10-0R7G-S2-B
85.0
74.0
145.5
131.5
153.2
GD10-1R5G-S2-B
100.0
89.0
170.5
154.0
153.2
GD10-2R2G-S2-B
100.0
89.0
170.5
154.0
153.2
3PH 220V
GD10-0R2G-2-B
85.0
74.0
145.5
131.5
134.2
GD10-0R4G-2-B
85.0
74.0
145.5
131.5
134.2
GD10-0R7G-2-B
85.0
74.0
145.5
131.5
153.2
GD10-1R5G-2-B
100.0
89.0
170.5
154.0
153.2
GD10-2R2G-2-B
100.0
89.0
170.5
154.0
153.2
3PH 380V
GD10-0R7G-4-B
100.0
89.0
170.5
154.0
153.2
GD10-1R5G-4-B
100.0
89.0
170.5
154.0
153.2
GD10-2R2G-4-B
100.0
89.0
170.5
154.0
153.2
Note: If C3 input filter is selected, the VFD height (H1) increases.
