INVT GD10-0R7G-4-B User Manual

Goodrive10 Series Mini VFD Installation guidelines
-13-

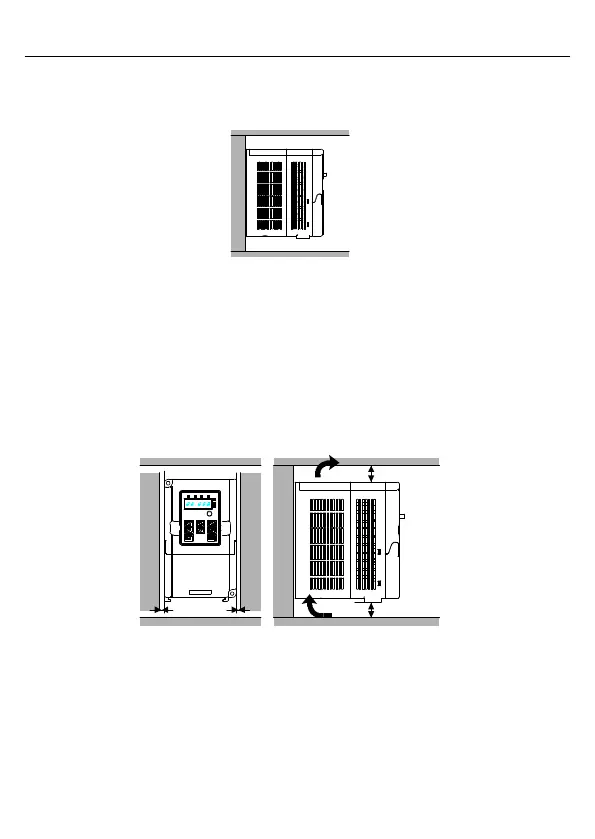

3.1.3 Installation mode
The VFD can be installed in wall mounting (suitable for VFDs of all overall dimensions):
Figure 3-1 Wall mounting
1. Mark the position of the installation hole. See appendix for the position of installation
hole.
2. Mount the screws or bolts onto the designated position.
3. Put the VFD on the wall.
4. Tighten the fixing screws on the wall.
3.1.4 Installation space
AA
B
B
Cool air
Warm air
Figure 3-2 Installation space
Note: The minimum space of A and B is 100mm.
