Goodrive10 Series Mini VFD Function parameters
-32-

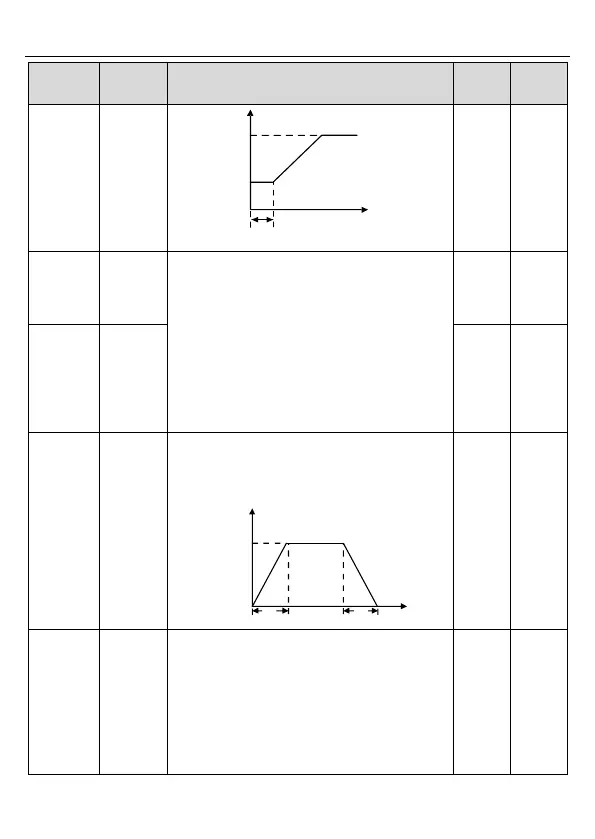

Function
code
Name
Description
Default
Modify
Output frequency
fmax
t1
T
f1 set by P01.01
f1
t1 set by P01.02
Setting range: 0.0–50.0s
P01.03
Braking
current
before
start
The VFD will carry out DC braking at the braking
current set before starting and it will speed up
after the DC braking time. If the DC braking time
is set to 0, the DC braking is invalid.
The stronger the braking current, the bigger the
braking power. The DC braking current before
starting means the percentage of the rated
current of the VFD.
Setting range of P01.03: 0.0–100.0%
Setting range of P01.04: 0.0–50.0s
0.0%
◎
P01.04
Braking
time
before
start
0.00s
◎
P01.05
ACC/DEC
mode
selection
The changing mode of the frequency during
start-up and running.
0:Linear type. The output frequency increases or
decreases linearly.
fmax
Output frequency
t1 t2
Time t
0
◎
P01.08
Stop mode
0: Decelerate to stop. After a stop command
takes effect, the VFD lowers output frequency
based on the DEC mode and the DEC time; after
the frequency drop to 0Hz, the VFD stops.
1: Coast to stop. After a stop command takes
effect, the VFD stops output immediately; and
the load coasts to stop according to mechanical
inertia.
0
○
