INVT GD300-01-7R5G-4 - Page 46

Goodrive300-01 inverter for air compressor Function parameters
-45-
Function
code
Name
Detailed instruction of parameters
Default
value
Modif
y

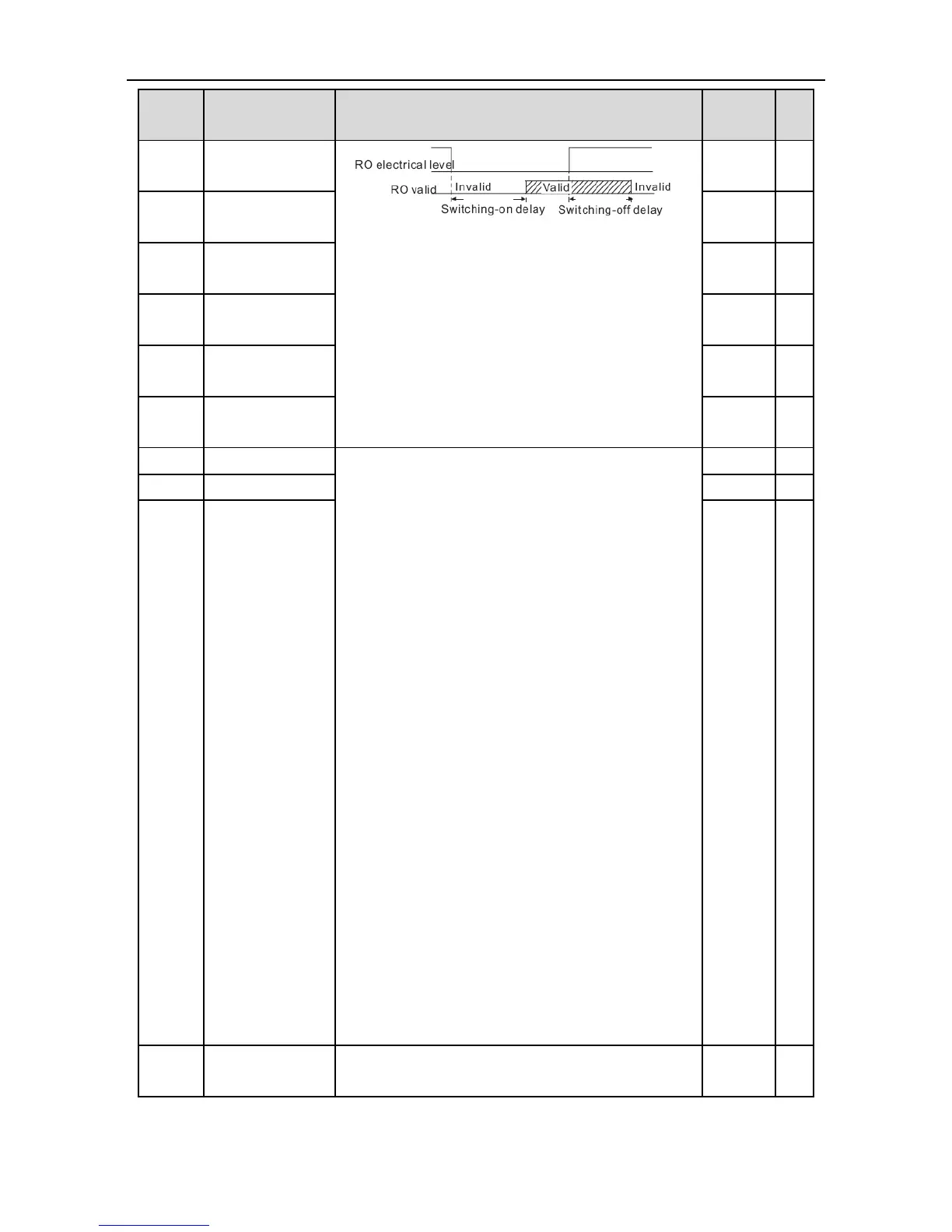

P06.08
RO4 switch-on
delay time
The setting range: 0.000~50.000s
0.000s
○
P06.09
RO4 switch-off
delay time
0.000s
○
P06.10
RO1 switch-on
delay time
0.000s
○
P06.11
RO1 switch-off
delay time
0.000s
○
P06.12
RO2 switch-on
delay time
0.000s
○
P06.13
RO2 switch-off
delay time
0.000s
○
P06.14
AO1 output
0: Running frequency
1: Set frequency
2: Ramp reference frequency
3: Running rotation speed
4: Output current (relative to twice the inverter rated
current)
5: Output current (relative to twice the motor rated
current)
6: Output voltage
7: Output power
8: Set torque value
9: Output torque
10: AI1 input value
11: AI2 input value
12: AI3 input value
13: High-speed pulse HDI input value
14: MODBUS communication set value 1
15: MODBUS communication set value 2
16~21: Reserved
22: Torque current (relative to triple the motor rated
current)
23: Ramp reference frequency (with sign)
24: PID temperature output
25~30:Reserved
24
○
P06.15
AO2 output
0
○
P06.16
Reserved
0
○
P06.17
Lower output limit
of AO1
The above function codes define the relative
relationship between the output value and analog
0.0%
○
