INVT GD300L-004G-4 User Manual

Goodrive300-LIFT series inverter Product overview
-12-
GD300L – 5R5G – 4 –LIFT
①
② ③
④
Figure 3-5 Product type
Key
Sign
Description
Remarks
Abbreviation
①
Product abbreviation
GD300L is short for Goodrive300-LIFT,
special for lifts.
Rated power
②
Power range + Load
type
5R5: 5.5kW
G: Constant torque load
Voltage degree
③
Voltage degree
S2: AC 2PH 220V (-15%)–240V(+10%)
4: AC 3PH 380V (-15%)–440V(+10%)
No. for market
management
④
Number for market
management
LIFT: inverter special for lifts
3.6 Rated specifications
Model
Rated output
power(kW)
Rated input
current(A)
Rated output
current(A)
GD300L-1R5G-S2
1.5
14.2
7
GD300L-2R2G-S2
2.2
23
10
GD300L-004G-4
4
13.5
9.5
GD300L-5R5G-4
5.5
19.5
14
GD300L-7R5G-4
7.5
25
18.5
GD300L-011G-4
11
32
25
GD300L-015G-4
15
40
32
GD300L-018G-4
18.5
47
38
GD300L-022G-4
22
56
45
GD300L-030G-4
30
70
60
Note: For inverters of 380 V, 4 kW–30 kW, the STO rating is SIL3 PLe CAT.3.

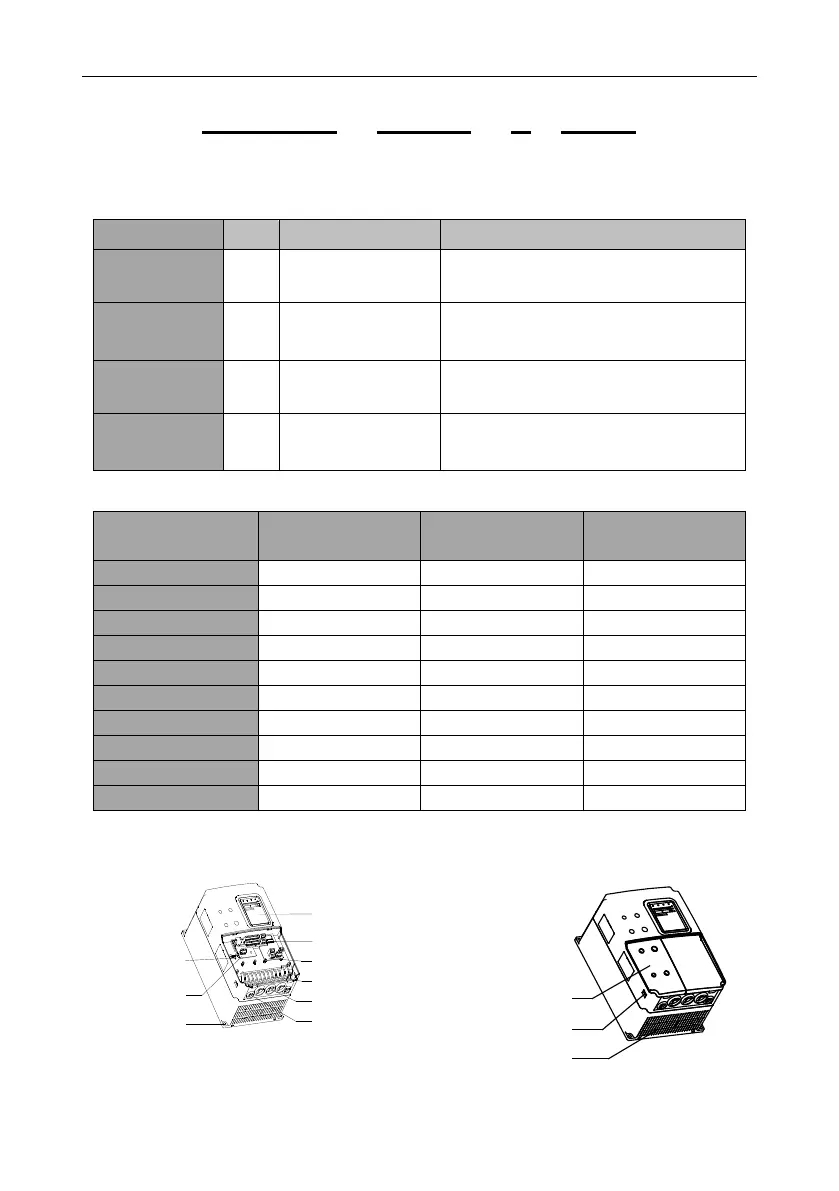

3.7 Structure diagram
Operation panel
Control board terminals
PG card expansion
Main circuit terminals
Main circuit cable port
Control cable
port
CHARGE LED
Function card
expansion
Whole-unit
mounting hole
Cover
Cover buckling
position
Vent hole
Figure 3-6 Components of inverters ≤15 kW
