INVT GD300L-004G-4

Goodrive300-LIFT series inverter Expansion cards
-143-
Frequency division coefficients are shown in the table below:
Decimal digit
Binary digit
Frequency division coefficients
0
00000000
1
1
00000001
2
2
00000010
3
…
…
…
m
…
m+1
255
11111111
256
A.5 STO instructions
A.5.1 STO function overview
Reference standards: IEC 61508-1, IEC 61508-2, IEC 61508-3, IEC 61508-4, IEC 62061, ISO
13849-1, and IEC 61800-5-2
You can enable the safe torque off (STO) function to prevent unexpected startups when the main
power supply of the drive is not switched off. The STO function switches off the drive output by turning
off the drive signals to prevent unexpected startups of the motor (see Figure A-13). After the STO
function is enabled, you can perform short-time operations (such as non-electrical cleaning in the
lathe industry) and maintain the non-electrical components of the device without switching off the
drive.
Control
circuit
+24V
Switch, relay, etc.
UDC+
UDC-
Drive
circuit
PWM+
PWM-
U/V/W
H1
H2
Note:
The contacts of the safety switch must be opened
or closed within 250 ms; and the cable that
connects the inverter to the safety switch cannot be
longer than 25 m.
COM

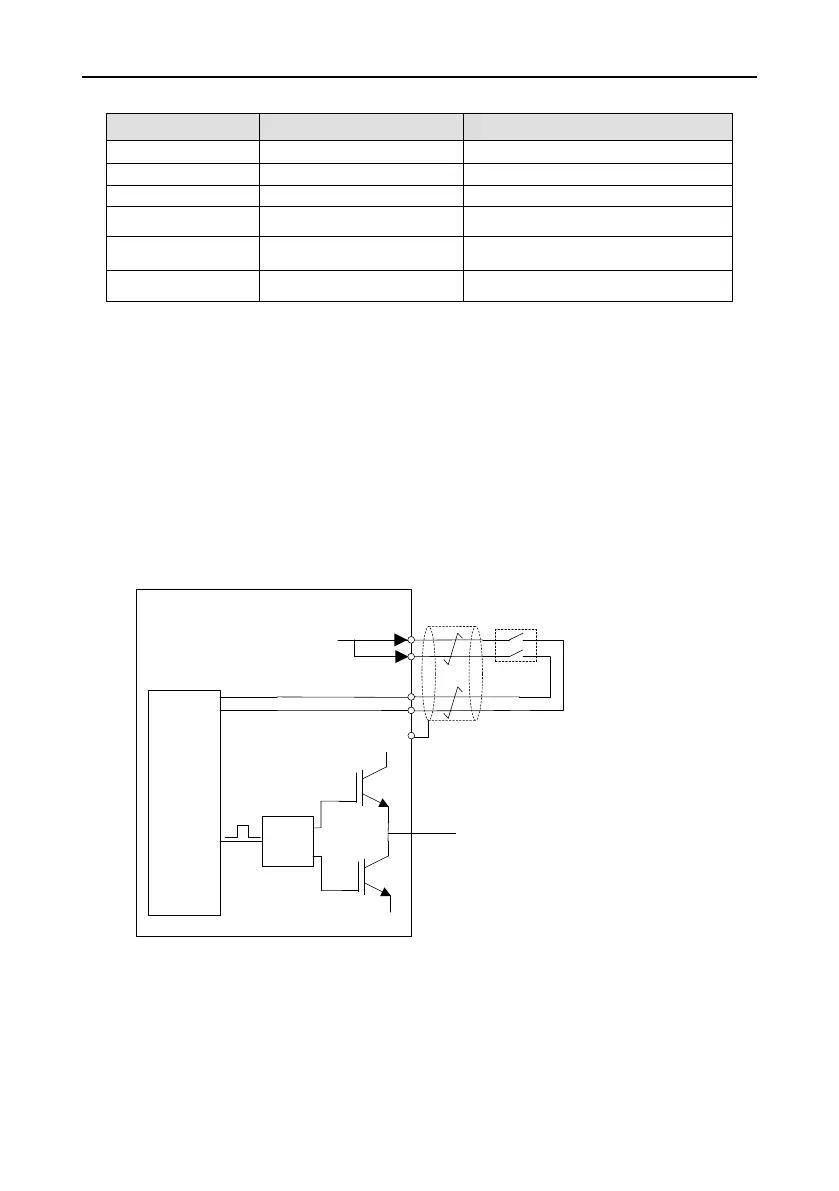

Figure A-13 STO function schematic
A.5.2 STO function features
1. STO function logic
The following table describes the input states and corresponding faults of the STO function.
