INVT GD300L-004G-4

Goodrive300-LIFT series inverter Dimension drawings
-157-

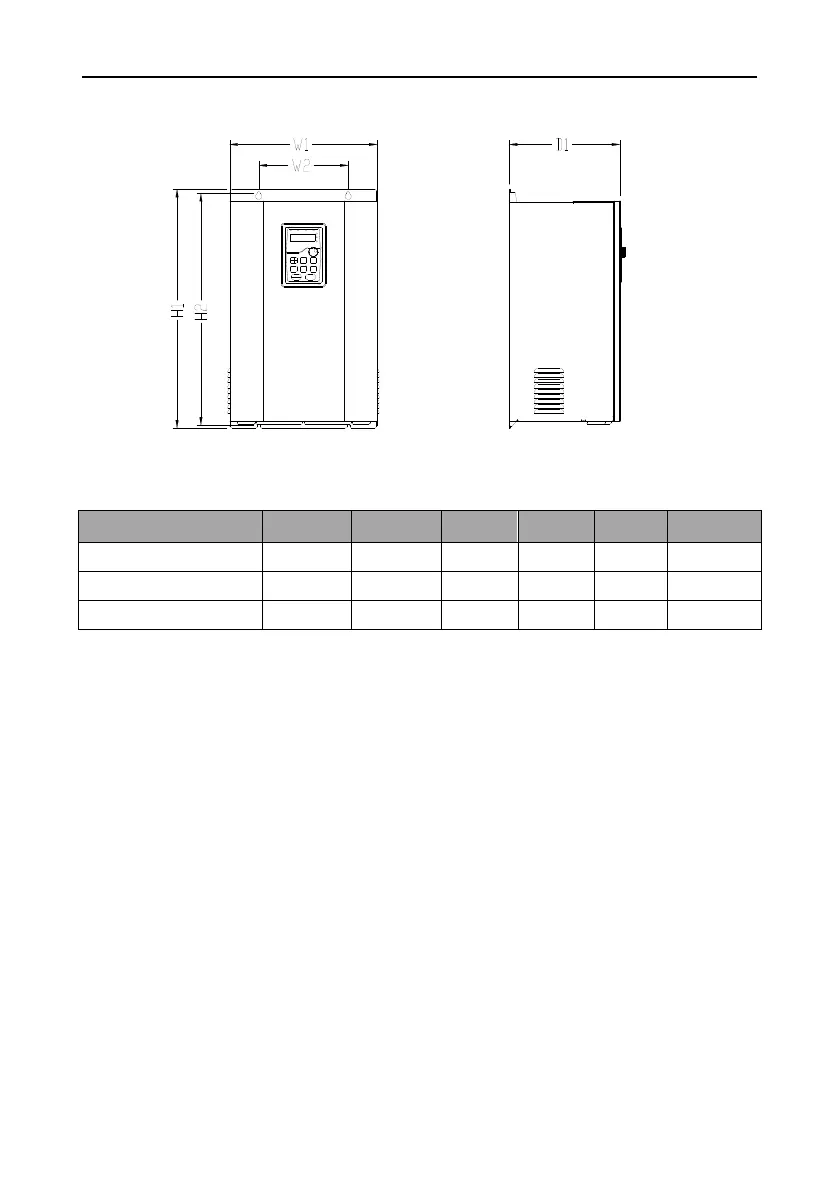

Wall mounting for inverters of 4 kW –15kW
Wall mounting for inverters of 18.5 kW –30kW
Installation dimensions for 380V inverters (unit: mm)
Model
W1
W2
H1
H2
D1
Diameter
4kW–5.5kW
160
147.5
250
237.5
175
5
7.5kW–15kW
220
206
320
305.5
180
6
18.5kW–30kW
290
176
470
455.5
220
6.5
