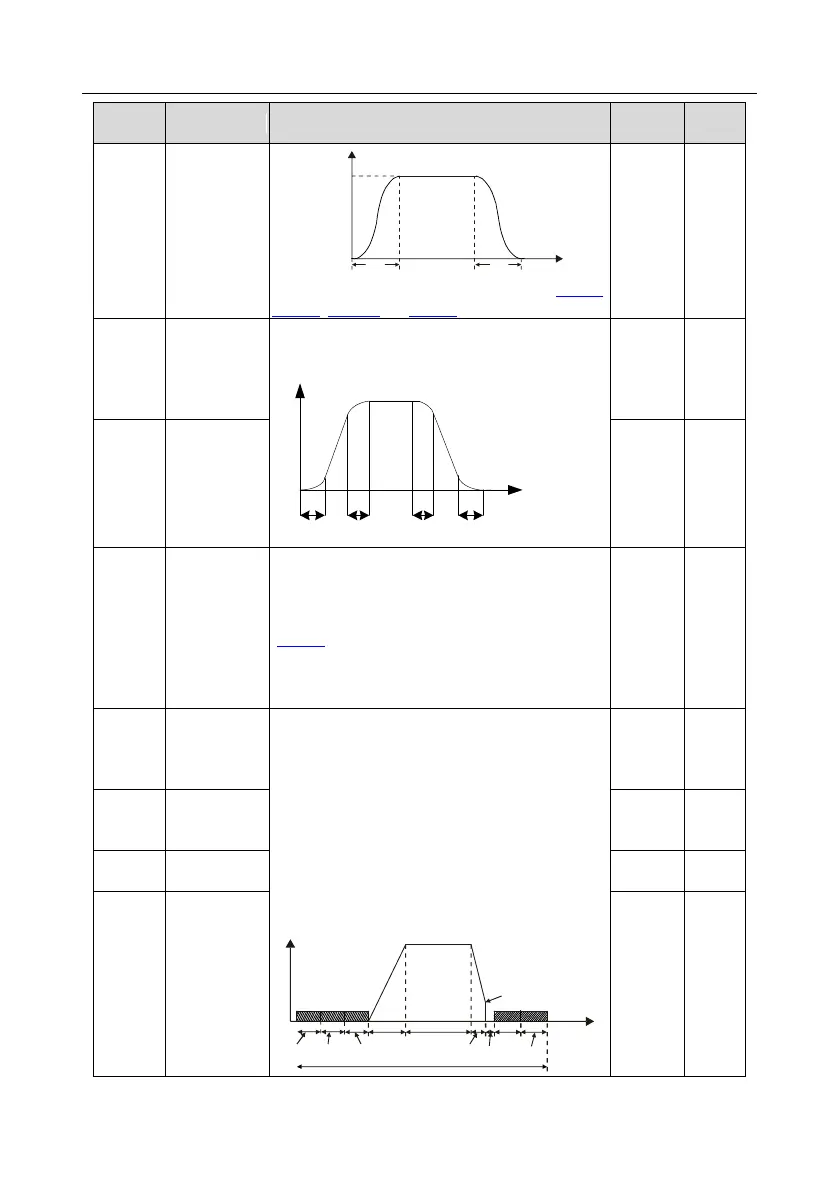

Goodrive350 IP55 High-ingress Protection Series VFD Function parameter list
-128-
Function
code
Name
Description
Default
value
Modify
Output frequency f
Time t
fmax
t1 t2
Note: When set to 1, it is required to set P01.06,
P01.07, P01.27 and P01.28 accordingly.
P01.06
Time of
starting
section of
acceleration S
curve
The curvature of S curve is determined by
acceleration range and acceleration and
deceleration time.
Output frequency f
Time t
t1 t2 t3 t4
t1=P01.06
t2=P01.07
t3=P01.27
t4=P01.28
Setting range: 0.0–50.0s
0.1s
◎
P01.07
Time of ending
section of
acceleration S
curve
0.1s
◎
P01.08
Stop mode
0: Decelerate to stop; after stop command is valid,
the VFD lowers output frequency based on the
deceleration mode and the defined deceleration
time, after the frequency drops to the stop speed
(P01.15), the VFD stops.
1: Coast to stop; after stop command is valid, the
VFD stops output immediately, and the load coasts
to stop as per mechanical inertia.
0
○
P01.09
Starting
frequency of
DC brake after
stop
Starting frequency of DC brake after stop; during
decelerating to stop, when this frequency is
reached, DC brake will be performed after stop.
Demagnetization time (waiting time of DC brake
after stop): Before the DC brake, the VFD will
block output, and after the demagnetization time
elapses, DC brake will start. This function is used
to prevent overcurrent fault caused by DC brake
during high speed.
DC brake current after stop: it means the DC brake
force applied, the larger the current, the stronger
the DC brake effect.
P01.04
Acceleration
P01.30
P01.23
Constant speed
In running
Deceleration
P01.10
P01.31
P01.12
P01.09
Time t
0.00Hz
○
P01.10
Waiting time of
DC brake after
stop
0.00s
○
P01.11
DC brake
current of stop
0.0%
○
P01.12
DC brake time
of stop
0.00s
○
