INVT Goodrive200A Series User Manual

GD200A series VFD Function parameters
-43-
Function
code
Name
Description
Default
value
Modify
the DC braking current is, the greater the braking
torque is.

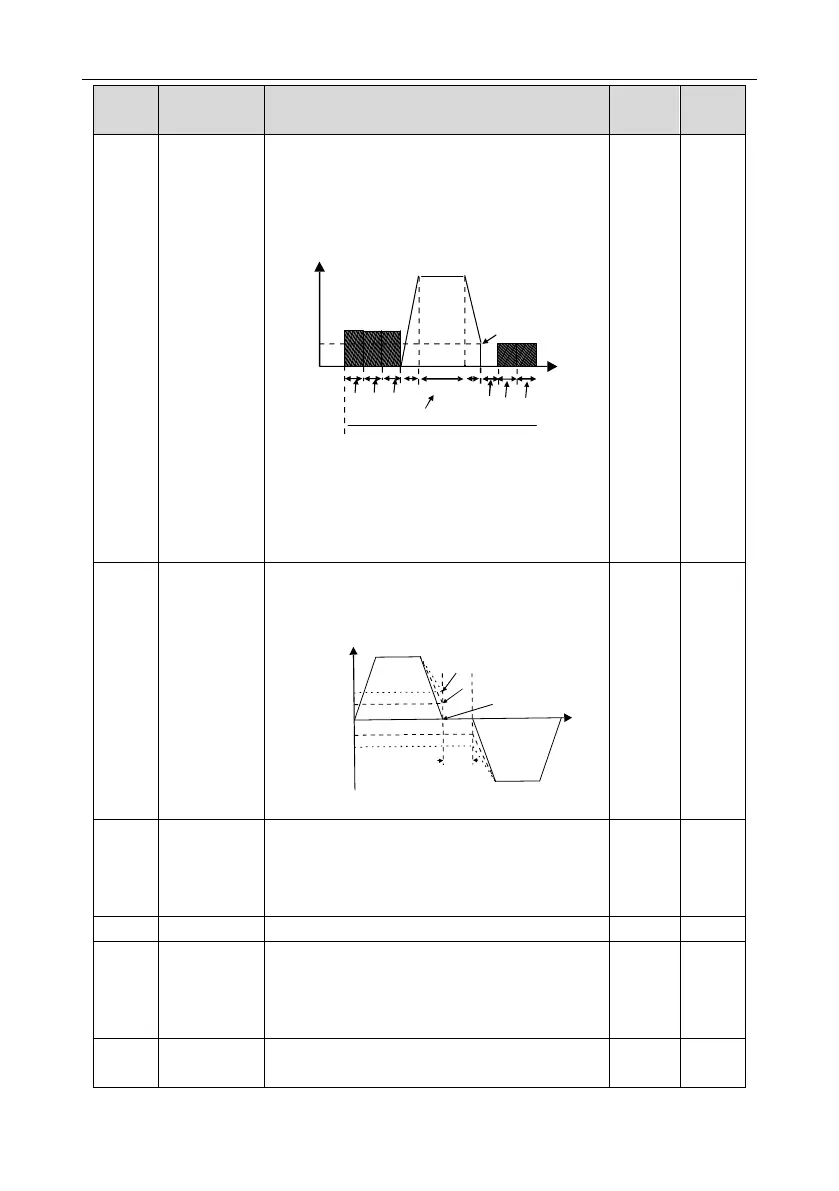

DC braking time: The retention time of DC brake.
If the time is 0, the DC brake is invalid. The VFD
will stop at the set deceleration time.
P01.23
ACC
Constant
speed
DEC
ON
T
P13.14
P01.04
P01.10
P13.15
P01.12
P01.09
Setting range of P01.09: 0.00Hz–P00.03
(the max. frequency)
Setting range of P01.10: 0.00–50.00s
Setting range of P01.11: 0.0–100.0%
Setting range of P01.12: 0.00–50.00s
P01.13
Dead time of
FWD/REV
rotation
During the procedure of switching FWD/REV
rotation, set the threshold by P01.14, which is as
the table below:
Output frequency
FWD
REV
T
Starting
frequency
Shift after the
zero frequency
Shift after the
starting frequency
Shift after the
stopping speed
Stopping
speed
Dead
zone
Setting range: 0.0–3600.0s
0.0s
○
P01.14
Shifting
between
FWD/REV
rotation
Set the threshold point of the VFD:
0: Switch after 0 frequency
1: Switch after the starting frequency
2: Switch after the stopping speed
1
◎
P01.15
Stopping speed
0.00–100.00Hz
0.50 Hz
◎
P01.16
Detection of
stopping speed
0: Detect according to speed setting (no stopping
delay)
1: Detect according to speed feedback (only valid
for vector control)
1
◎
P01.17
Detection time
of the feedback
If P01.16 is set to 1, the feedback frequency is
less than or equal to P01.15 and detect in the set
0.50s
◎
